TPD-283U-M2 2.8-inch Touch HMI with PoE Ethernet and RS-485
2.8-inch resistive touch HMI with a 240 x 320 TFT display, PoE Ethernet, RS-485 and a real time clock, aimed at building and home automation control points.
- Resistive touch 2.8-inch TFT display, 240 x 320 resolution, 65535 colours
- IEEE 802.3af PoE Ethernet (10/100 Base-TX) plus +12 ~ 48 VDC terminal block power
- One RS-485 port with Self-Tuner for serial device connection
- Modbus TCP and Modbus RTU protocol support, plus custom C-language protocols
- Real time clock, buzzer, rotary switch and reset button on the front panel
- Free HMIWorks tool with Ladder Designer and C language environment
1.502,29 kr. pr. stk.
| 1–9 stk. | 1.502,29 kr. | |
|---|---|---|
| 10–30 stk. | 1.457,45 kr. | −3 % |
| 31+ stk. | 1.427,55 kr. | −5 % |
Produktinformation "TPD-283U-M2 2.8-inch Touch HMI with PoE Ethernet and RS-485"

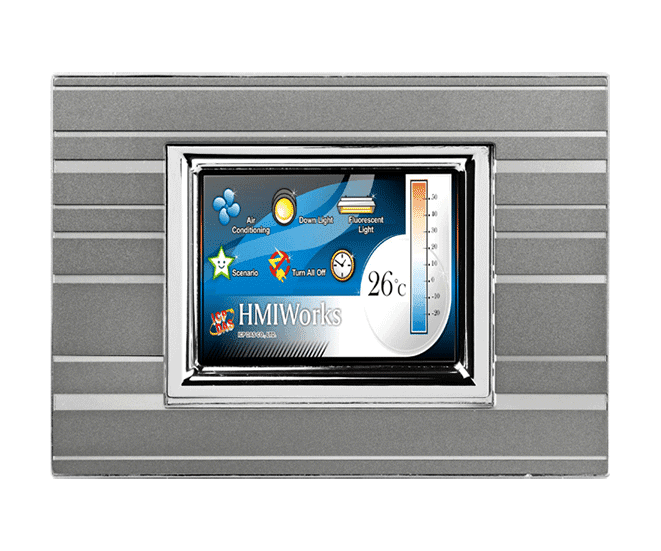

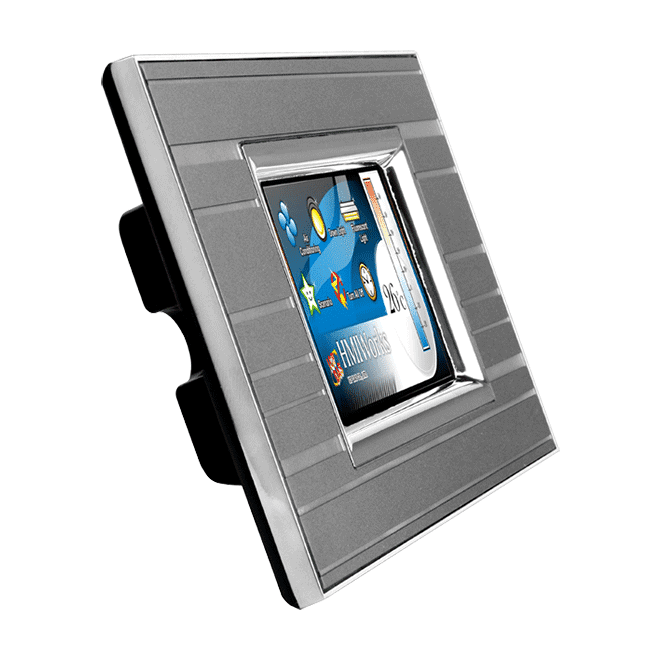

TPD-283U-M2 CR is a compact 2.8-inch touch HMI from the TPD series, designed to replace mechanical switches with programmable control pads. It has a 240 x 320 colour TFT display with 65535 colours and a resistive touch panel, and it mounts on a standard wall outlet box.

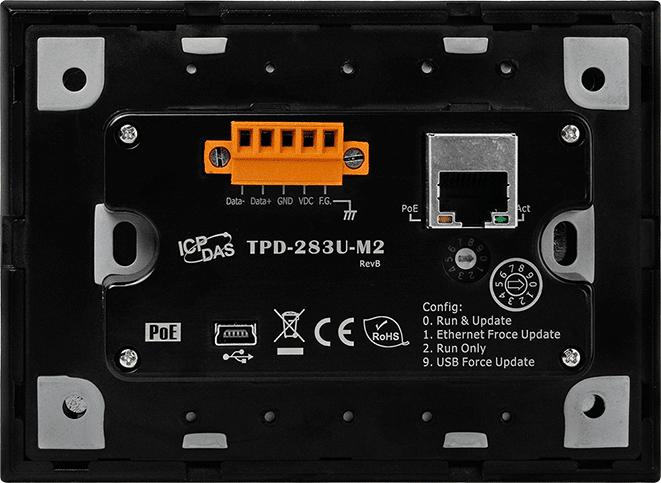

Connectivity covers one RJ-45 10/100 Base-TX Ethernet port with IEEE 802.3af PoE (Class 1, 48 V), one RS-485 port with Self-Tuner, and a USB 1.1 client port for firmware updates. The unit can also be powered from a +12 ~ 48 VDC terminal block. Modbus TCP and Modbus RTU are supported, along with custom communication protocols written in C.
Programming is handled with the free HMIWorks tool, which offers Ladder Designer for PLC-oriented users and a C language environment for software engineers. The gray-cover variant includes a real time clock, buzzer, rotary switch and reset button.
Applications
- Building automation control pads
- Home automation control points
- Replacing mechanical switches with intelligent touch control
| Product type: | Touch HMI |
|---|---|
| Interface: | Ethernet, RS-485, USB |
| Protocol: | Modbus RTU, Modbus TCP |
| PoE: | Yes, IEEE 802.3af |
| Power input: | +12 ~ 48 VDC or PoE |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Wall |
| Housing: | Gray cover |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 2.8” TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Resistive Touch |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-485 (including Self-Tuner) |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 1.5 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 127 mm x 92 mm x 31 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
