TPM-4100 10.4-inch Resistive Touch Panel Monitor, 800 x 600 with RS-232/USB
Panel-mount 10.4-inch 800 x 600 aluminium monitor with 4-wire resistive touch, OSD controls and RS-232 or USB, rated for -20 ~ +70 °C operation.
- 10.4-inch LCD with 800 x 600 resolution and 400 cd/m2 brightness
- 4-wire analog resistive touch panel with 80% light transmission
- Full-function OSD control for brightness, contrast, clock, phase, position and sharpness
- IP65 compliant front panel with aluminium casing
- Wide operating temperature range of -20 ~ +70 °C
- Power input +12 ~ 48 VDC, 8.5 W consumption
7.197,56 kr. pr. stk.
| 1–9 stk. | 7.197,56 kr. | |
|---|---|---|
| 10–30 stk. | 6.980,81 kr. | −3 % |
| 31+ stk. | 6.838,80 kr. | −5 % |
Produktinformation "TPM-4100 10.4-inch Resistive Touch Panel Monitor, 800 x 600 with RS-232/USB"

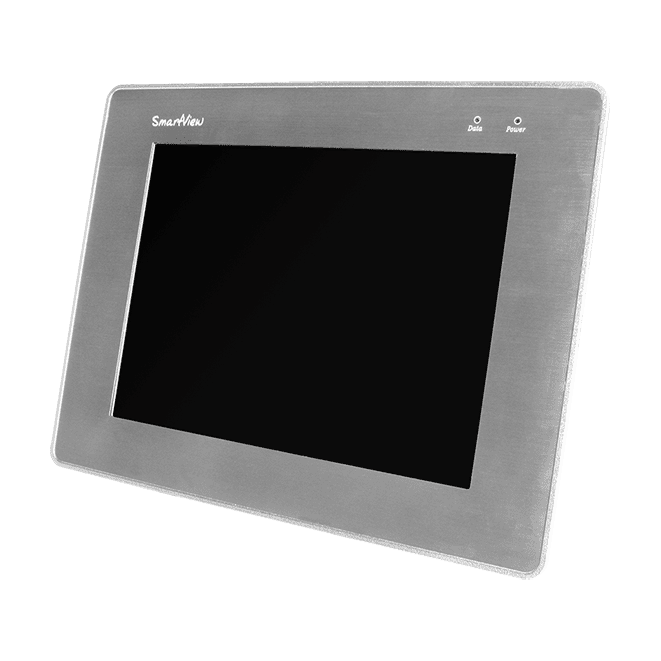

The TPM-4100 CR is a panel-mount touch monitor for operator interfaces in industrial control cabinets. It combines a 10.4-inch LCD with a resistive touch panel, so it can be used with gloves or a stylus, and it adds on-screen display controls for setting the image without a PC.
Its aluminium front bezel carries an IP65-rated front panel. The unit is specified for operation from -20 ~ +70 °C and is designed to run with Windows, Windows IoT, WES, WinCE and Linux drivers. It is supplied with a power supply and is intended for pairing with ICP DAS PAC control systems such as the WP-8000, LX-8000 and XP-9000 series.
The CR ordering code is the variant with RS-232 or USB connectivity, as listed in the ordering information. Engineers specifying a panel display for a PAC-based control system will find the wide temperature range and sealed front panel the key selection points.
Applications
- Operator interfaces and HMI panels in industrial control cabinets
- Front-end displays for ICP DAS PAC control systems such as WP-8000, LX-8000 and XP-9000 series
| Product type: | Touch monitor |
|---|---|
| Interface: | RS-232 / USB |

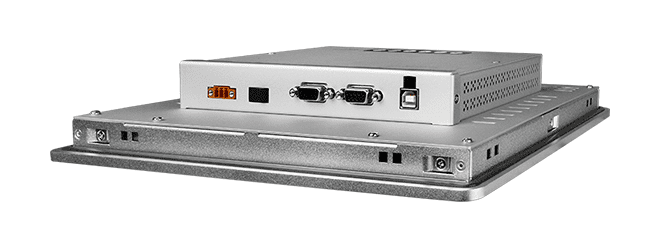

| Ports: | 1 x RS-232 (combo), 1 x USB |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel |
| Housing: | Aluminium |
Specifikationer
| Software | |
|---|---|
| OS Support | Windows 10/11/ 8/7/ XP (32/64-bit), Windows 10 IoT Enterprise, Windows Embedded Standard 7 Windows Embedded Compact (WinCE 5.0/6.0/7.0), Linux (32/64-bit) |
| Display | |
| Size | 10.4" |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 4-wire, analog resistive; light transmission: 80% |
| Contrast Ratio | 500：1 |
| LED Indicators | |
| Status | 1 x Power, 1 x Display |
| HMI | |
| Power Switch | Yes |

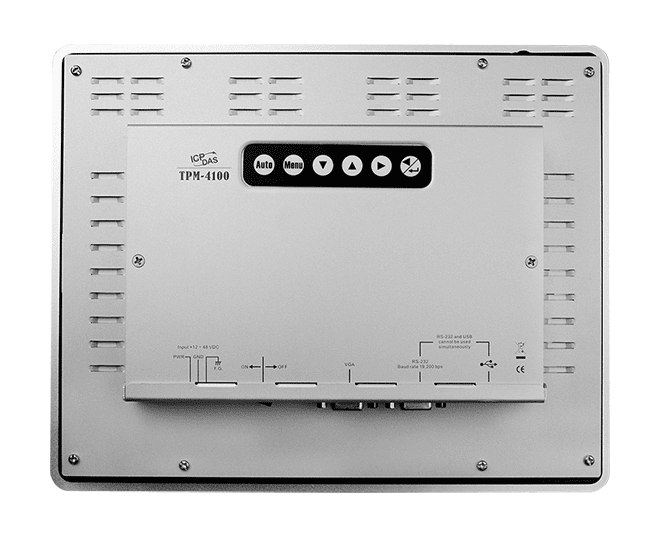

| OSD Control | Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| COM Ports | |
| Ports | 1 x RS-232 (Combo) |
| USB | |
| Ports | 1 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 8.5 W |
| Mechanical | |
| Casing | Aluminum |
| Dimensions (mm) | 293 x 231 x 53 (W x L x H) |
| Installation | Panel Mounting |
| Ingress Protection Rating | Front panel: IP65 |
| Weight | 1785 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
