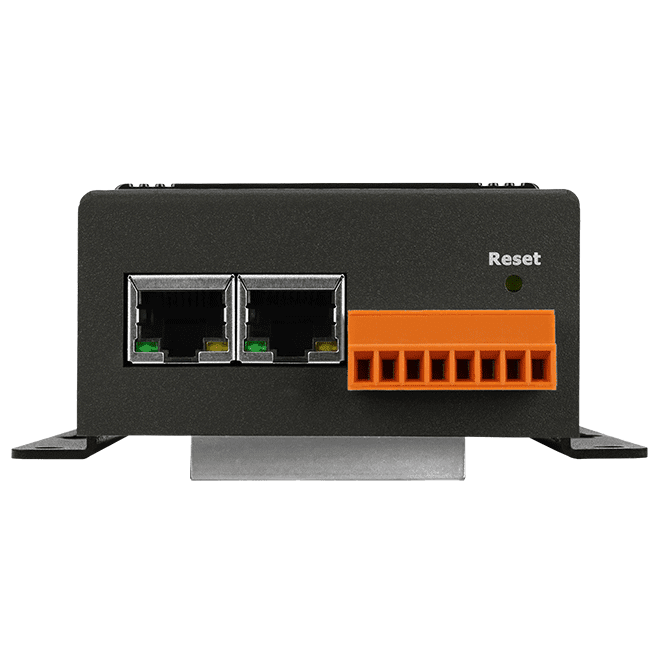

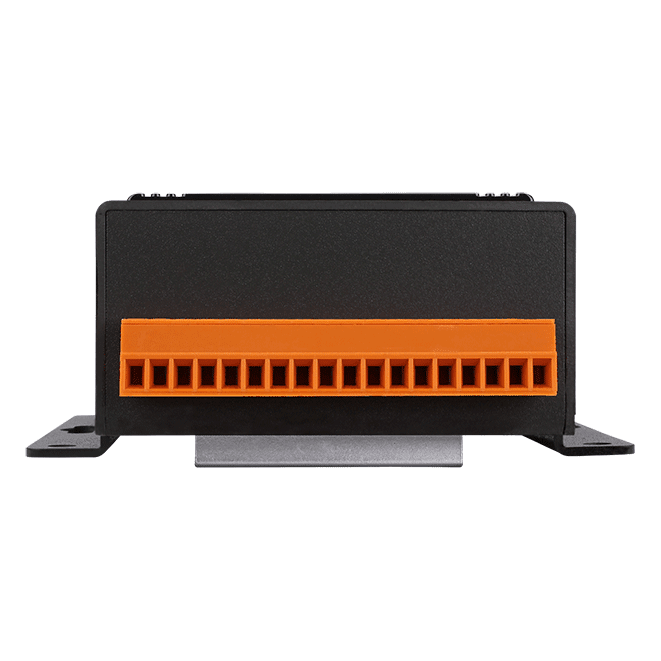

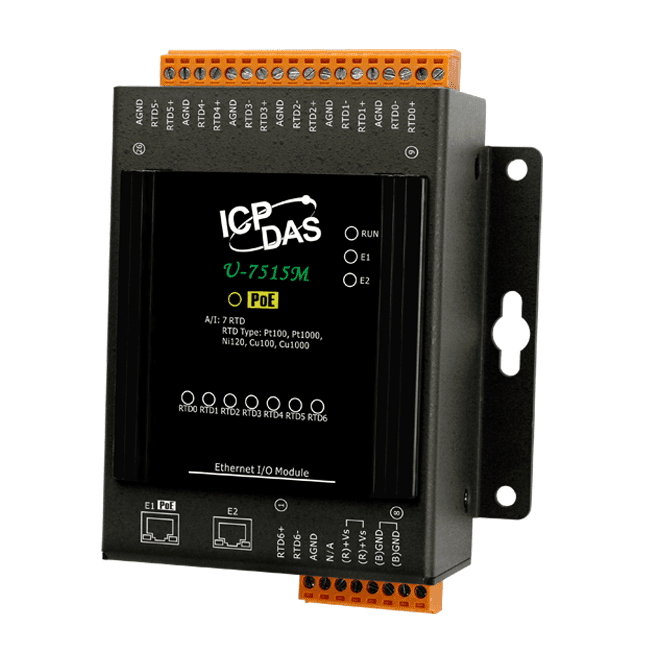

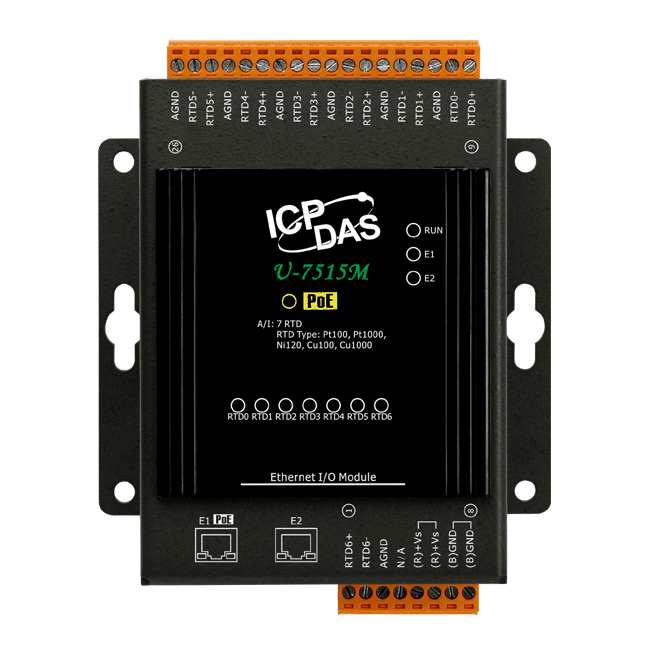

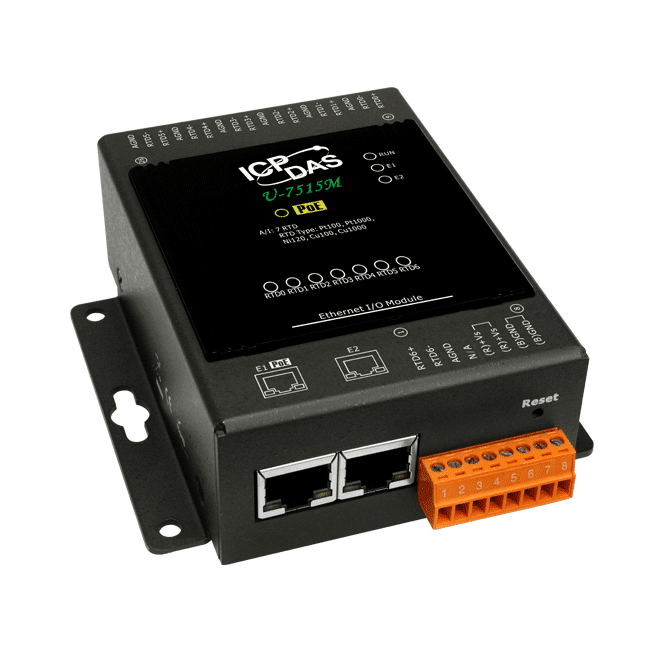

U-7515M OPC UA I/O Module, 7-ch RTD Input with PoE
OPC UA I/O module with 7 RTD inputs and a dual-port Ethernet switch for daisy-chain wiring. Powered over Ethernet (IEEE 802.3af) and supports OPC UA, MQTT and RESTful API.
- Seven RTD inputs (2-wire and 3-wire) for Pt100, Pt1000, Ni120, Cu100 and Cu1000 sensors
- OPC UA Server / Client, MQTT Client and RESTful API, which can run simultaneously
- Built-in dual-port 10/100 Base-TX Ethernet switch for daisy-chain topology
- IEEE 802.3af (Class 3) PoE input alongside a +12 ~ +48 VDC terminal block
- Rule logic (IF, THEN, ELSE), scheduling and scaling of analog values
- I/O trigger messages to CSV file or line for device tracking
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "U-7515M OPC UA I/O Module, 7-ch RTD Input with PoE"
The U-7515M CR is an OPC UA I/O module that reads seven differential RTD inputs and passes the values to OPC UA, MQTT or RESTful API clients. It suits engineers who want temperature measurement to feed a cloud platform or a field control system without a separate gateway.
A built-in dual-port Ethernet switch allows the modules to be daisy-chained, reducing cabling and switch count. The unit accepts power from a PoE-enabled network under IEEE 802.3af (Class 3), or from a +12 ~ +48 VDC terminal block, which simplifies installation where power sockets are limited.
Configuration, control and I/O monitoring are handled through the built-in web user interface in a standard browser, with no additional software required. Scaling, rule logic (IF, THEN, ELSE), scheduled actions and I/O trigger messages add local processing to the data stream.
Applications
- Temperature monitoring with RTD sensors feeding cloud or field control systems
- Remote data acquisition for analysis and control strategy
- Distributed I/O on Ethernet with daisy-chained wiring
- PoE-powered sensing points where power and data share one cable
| Product type: | OPC UA I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Analog inputs: | 7 |
| Ports: | 2 |
| PoE: | Yes |
| Isolation: | 3000 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication(Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Input | |
| Channels | 7 (Differential) |
| Type | RTD (2-wire, 3-wire) |
| Sensor Type | Pt100, Pt1000, Ni120, Cu100, Cu1000 |
| Resistance Measurement | 3.2 kΩ (max.) |
| Resolution | 16-bit |
| Accuracy | ±0.05% |
| Sampling Rate | 12 samples/second (Total) |
| Input Impedance | > 1 MΩ |
| Common Mode Rejection | 150 dB |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | +120 VDC |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| 3-wire RTD Lead Resistance Elimination | Yes |
| Zero Drift | ±0.5 μV/°C |
| Span Drift | ±20 μV/°C |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 5.9 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |

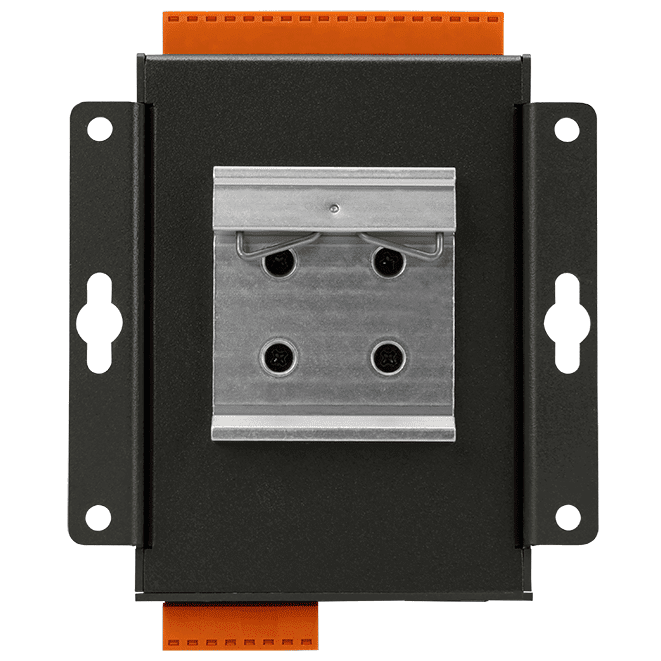

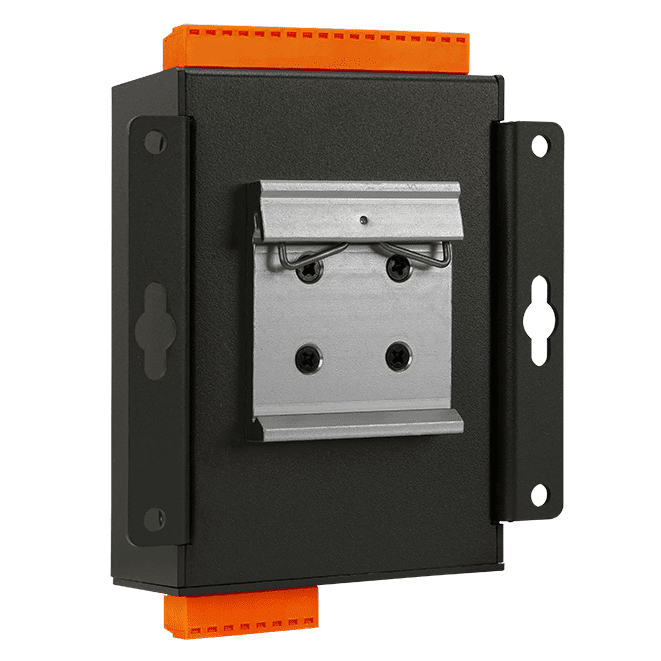

| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
