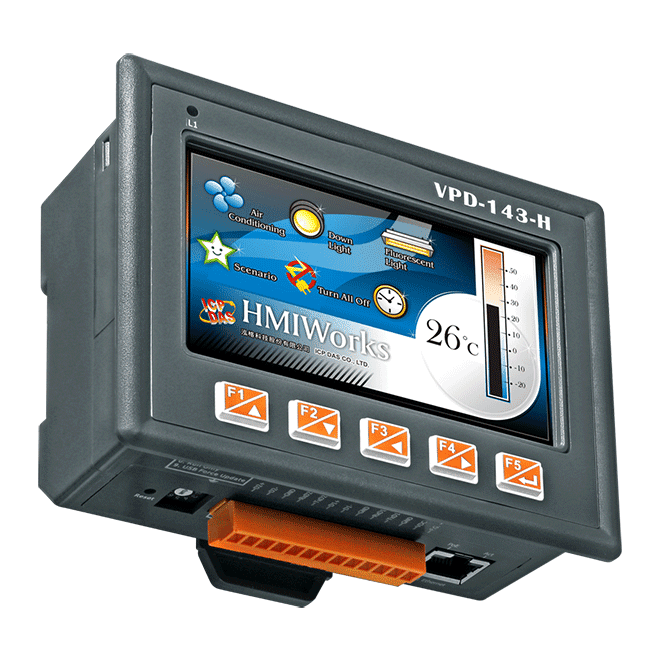

VPD-143-H 4.3-inch Touch HMI with 2 x RS-232/RS-485 and PoE Ethernet
The VPD-143-H CR is a 4.3-inch colour touch HMI with two serial ports, a PoE-capable Ethernet port and a real-time clock, designed for industrial operator interfaces.
- 4.3-inch high-resolution colour touch screen, 480 x 272, 65535 colours
- Two RS-232/RS-485 serial ports, including Self-Tuner
- 10/100 Base-TX Ethernet with PoE (IEEE 802.3af, Class 1, 48 V)
- Real-time clock and non-volatile storage
- Front panel rated IP65, with rubber keypad and buzzer
- Free HMIWorks software with GUI design, Ladder Designer and C language
2.421,61 kr. pr. stk.
| 1–9 stk. | 2.421,61 kr. | |
|---|---|---|
| 10–30 stk. | 2.346,87 kr. | −3 % |
| 31+ stk. | 2.302,02 kr. | −5 % |
Produktinformation "VPD-143-H 4.3-inch Touch HMI with 2 x RS-232/RS-485 and PoE Ethernet"

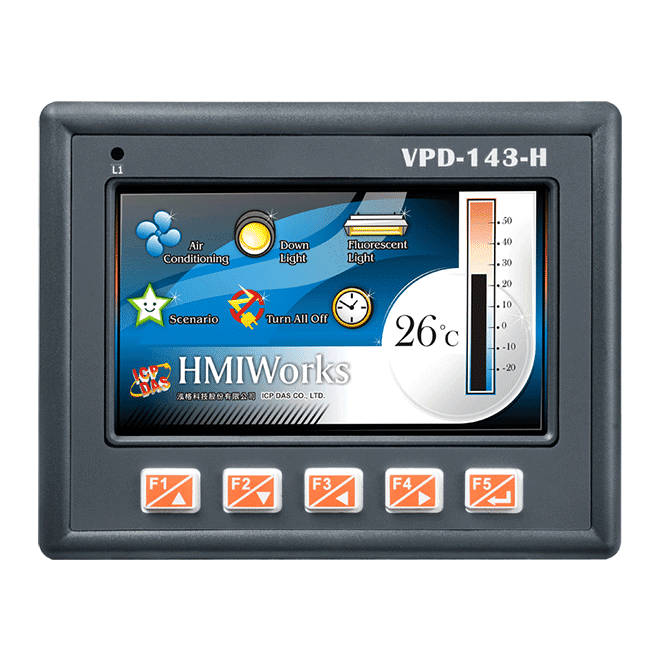

VPD-143-H CR is a 4.3-inch touch HMI with a 480 x 272 colour TFT display. It pairs two RS-232/RS-485 serial ports with a 10/100 Base-TX Ethernet port that can be powered over PoE, so one device can sit on a plant network and talk to controllers and remote I/O without a separate power supply.
The unit has a real-time clock, a buzzer, a programmable 5-key rubber keypad, a rotary switch and a reset button. The front panel is rated IP65, and the unit mounts on DIN-rail or panel. Operating range is -20 ~ +50 °C.
Programming uses the free HMIWorks software, which supports graphical screen design, Ladder Designer for PLC-oriented users and C language for user-defined protocols. Firmware can be updated through the USB 1.1 client port or over the network. This listing is for ordering code VPD-143-H CR.
Applications
- Operator control and monitoring panels in automation systems
- Retrofits of existing machines and control systems
- Monitoring and control of remote I/O over Ethernet or serial links
| Product type: | HMI |
|---|---|
| Interface: | 2 x RS-232/RS-485, Ethernet, USB |
| Ports: | 3 (2 serial, 1 Ethernet) |
| PoE: | IEEE 802.3af |
| Power input: | +12 ~ 48 VDC, PoE |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | DIN-rail, Panel |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 4.3” TFT (Resolution 480 X 272, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 1 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Rubber Keypad | 5 keys (Programmable) |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |

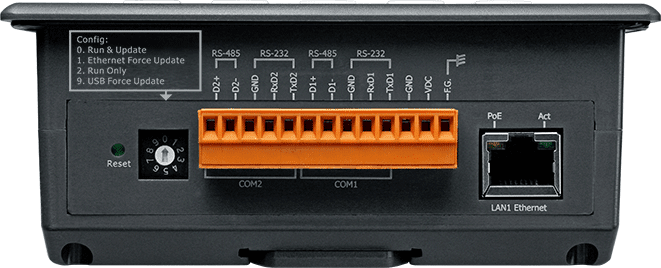

| Ports | 2 x RS-232/RS-485 including Self-Tuner |
| USB | |

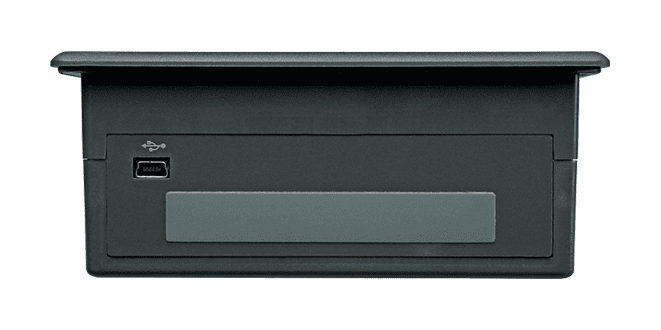

| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2.5 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 131 mm x 105 mm x 54 mm |

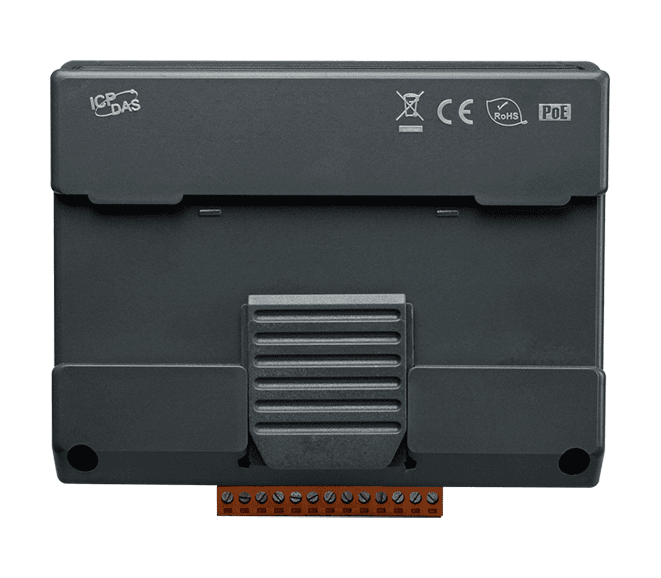

| Installation | DIN-Rail Mounting and Panel Mounting |
| Ingress Protection Rating | Front Panel: IP65 |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
