VPD-173N 7-inch Touch HMI, PoE Ethernet, 2 x RS-232/RS-485
7-inch colour touch HMI with an 800 x 480 TFT display, PoE Ethernet, two RS-232/RS-485 serial ports and a real time clock for building, home and industrial automation.
- 7-inch TFT touch screen, 800 x 480 resolution, 65535 colours
- Two RS-232 (3-pin) or RS-485 serial ports, 2500 VDC isolated
- PoE (IEEE 802.3af, Class 1) or +12 to +48 VDC terminal block power
- 10/100 Base-TX Ethernet via RJ-45
- Real time clock and 16 MB SDRAM / 16 MB Flash memory
- Front panel IP65 / NEMA 4, wall mounting
2.929,85 kr. pr. stk.
| 1–9 stk. | 2.929,85 kr. | |
|---|---|---|
| 10–30 stk. | 2.840,16 kr. | −3 % |
| 31+ stk. | 2.780,37 kr. | −5 % |
Produktinformation "VPD-173N 7-inch Touch HMI, PoE Ethernet, 2 x RS-232/RS-485"

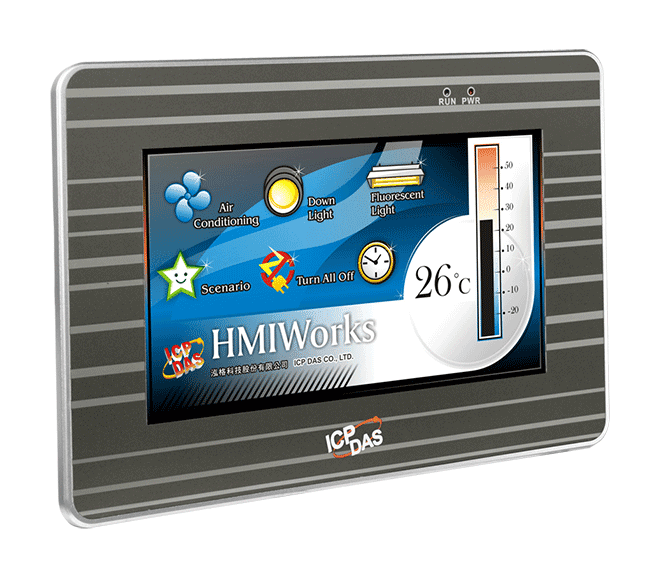

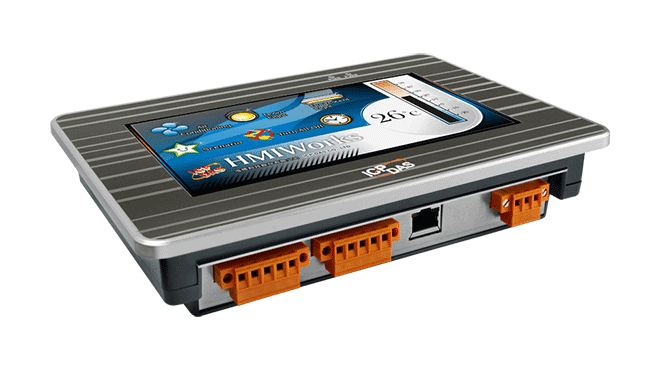

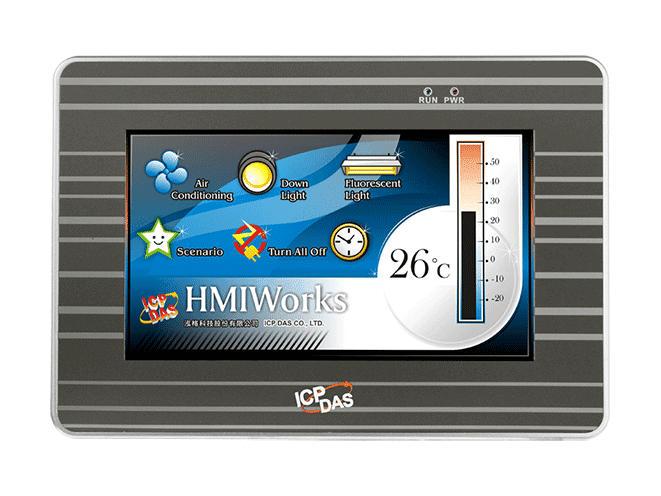

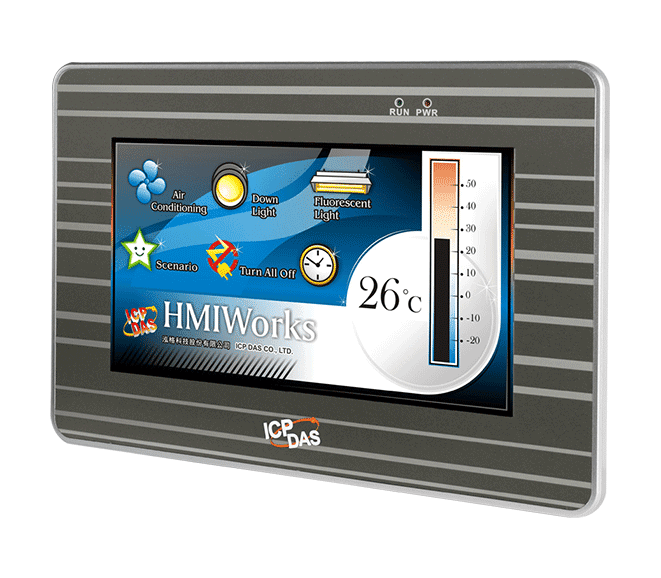

VPD-173N CR is a 7-inch touch HMI with a high-resolution colour TFT panel, designed to replace mechanical switches with programmable control pads. It combines a touch display, Ethernet connectivity and two configurable serial ports in one wall-mounted unit, which suits building, home and industrial control panels.
Power can come from Power over Ethernet (IEEE 802.3af, Class 1) or from a +12 to +48 VDC terminal block. Two RS-232 or RS-485 ports, with 2500 VDC isolation, allow the device to communicate with serial equipment, while the real time clock supports time-stamped operation. The front panel is rated IP65 / NEMA 4.
Application programs are built with the free HMIWorks software, which offers a Ladder Designer for PLC users and a C language environment for those who prefer programming. The manufacturer states that the Ladder Designer can be learned in no more than 30 minutes.
Applications
- Building automation
- Home automation
- Industrial automation control panels
| Product type: | HMI |
|---|---|
| Interface: | 2 x RS-232/RS-485, Ethernet |
| Ports: | 2 serial, 1 Ethernet |
| PoE: | Yes |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ 48 VDC or PoE |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Wall |
| Housing: | IP65 front panel |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 250 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 2 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |
| Ports | 2 x RS-232 (3-pin) or RS-485 (including Self-Tuner) ; 2500 VDC isolated |
| Power | |
| Consumption | 3.6 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 217 mm x 153 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: NEMA 4 /IP65 |
| Environment | |
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
