XV315 Expansion Board, 3-ch RTD Input, 3-ch AO, 4-ch Digital Input
XV315 CR XV-board expansion module with three RTD inputs, three analogue outputs and four wet-contact digital inputs, with 3-wire lead resistance elimination for remote temperature sensing.
- Three RTD inputs with individual channel configuration
- 3-wire RTD lead resistance elimination for long sensor cables
- Open wire detection on RTD inputs
- Three analogue outputs selectable as 0 ~ +10 VDC, 0 ~ +20 mA or +4 ~ +20 mA
- Four photocoupler-isolated digital inputs, sink or source selectable by wiring
- All digital inputs usable as 32-bit counters, up to 3k Hz
2.204,86 kr. pr. stk.
| 1–9 stk. | 2.204,86 kr. | |
|---|---|---|
| 10–30 stk. | 2.137,59 kr. | −3 % |
| 31+ stk. | 2.092,75 kr. | −5 % |
Produktinformation "XV315 Expansion Board, 3-ch RTD Input, 3-ch AO, 4-ch Digital Input"

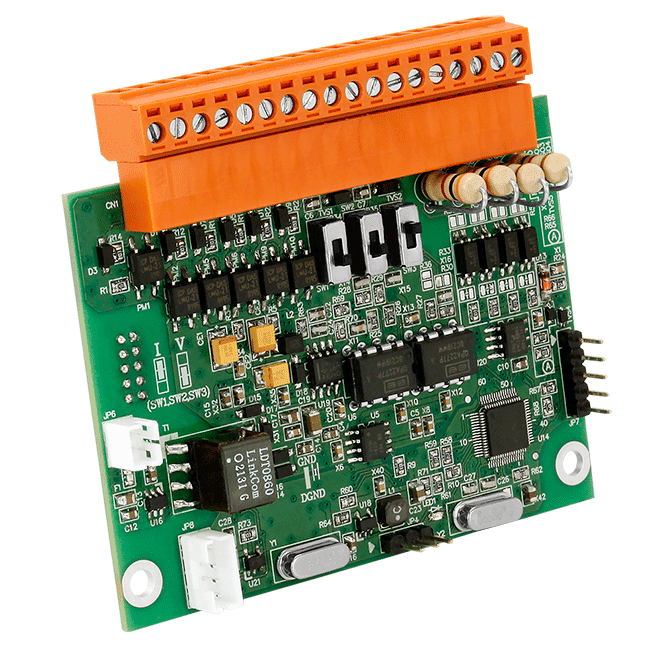

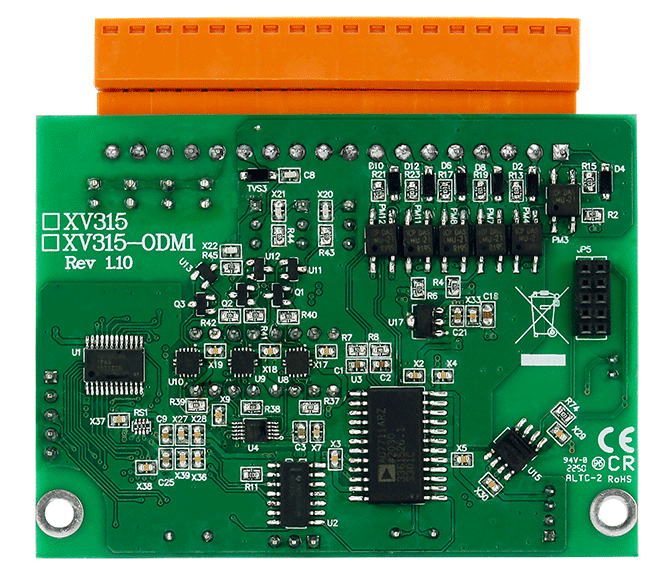

The XV315 CR is a multifunction XV-board expansion module combining three RTD temperature inputs, three analogue outputs and four digital inputs in one unit. Each RTD channel can be configured individually, so different sensor types can be mixed on the same module.
Designed with long sensor cable runs in mind, the module compensates for lead resistance on 3-wire RTD connections, so readings stay accurate regardless of wire length. Open wire detection on the RTD inputs helps identify broken sensor connections quickly.
The analogue outputs can be set to 0 ~ +10 VDC, 0 ~ +20 mA or +4 ~ +20 mA, and the digital inputs accept either sink or source wiring and can operate as 32-bit counters. Photocoupler isolation, 2000 VDC intra-module isolation and 4 kV ESD protection support reliable operation in electrically noisy industrial environments. Communication is via RS-232 using Modbus/RTU.
Applications
- Building Automation
- Machine Automation
- Remote Diagnosis
- Factory Automation
- Remote Maintenance
- Testing Equipment
| Product type: | Expansion Board |
|---|---|
| Interface: | RS-232 |
| Protocol: | Modbus/RTU |
| Digital inputs: | 4 |
| Analog inputs: | 3 |
| Analog outputs: | 3 |
| Ports: | 1 |
| Isolation: | 2000 VDC |
| Power input: | 5 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 2000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4kV Contact For Each Terminal ±8kV Air For Random Terminal |
| Analog Input | |
| Channels | 3 |
| Type | RTD |
| Sensor Type | Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000 |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | 10 Hz (Total) |
| Overvoltage Protection | 120 VDC |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| 3-wire RTD Lead Resistance Elimination | Yes |
| Analog Output | |
| Channels | 3 |
| Type | 0 ~ +10 VDC , 0 ~ +20 mA , +4 ~ +20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.2% |
| Voltage Output Capability | 10 V @ 10 mA |
| Current Load Resistance | 500 Ω |
| Power-on Value | Yes, Programmable |
| Digital Input/Counter | |
| Channels | 4 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source (NPN/PNP) |
| ON Voltage Level | +3.5 ~ +30 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 32-bit (0 ~ 4,294,967,285) |
| Frequency | 3k Hz |
| Input Impedance | 3 kΩ, 0.5 W |
| COM Ports | |
| Ports | 1 x RS-232 |
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus/RTU |
| Power | |
| Consumption | 1.7 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
