XW110i 16-ch Isolated DI Expansion Board (Dry/Wet, Sink/Source)
16-channel isolated digital input XW-board for uPAC-5000, LP-51xx and WP-51xx PACs, accepting dry or wet contacts with sink or source wiring and 3750 VDC isolation.
- 16 isolated digital input channels for dry and wet contacts
- Sink or source type wiring supported on each input
- Dry contact ON when closed to GND; wet contact ON at +10 VDC to +50 VDC
- Wet contact OFF level of +4 VDC maximum
- 3750 VDC isolation and 60 VDC overvoltage protection for wet contact inputs
- Input impedance of 10 K Ohm
545,61 kr. pr. stk.
| 1–9 stk. | 545,61 kr. | |
|---|---|---|
| 10–30 stk. | 530,66 kr. | −3 % |
| 31+ stk. | 523,19 kr. | −4 % |
Produktinformation "XW110i 16-ch Isolated DI Expansion Board (Dry/Wet, Sink/Source)"

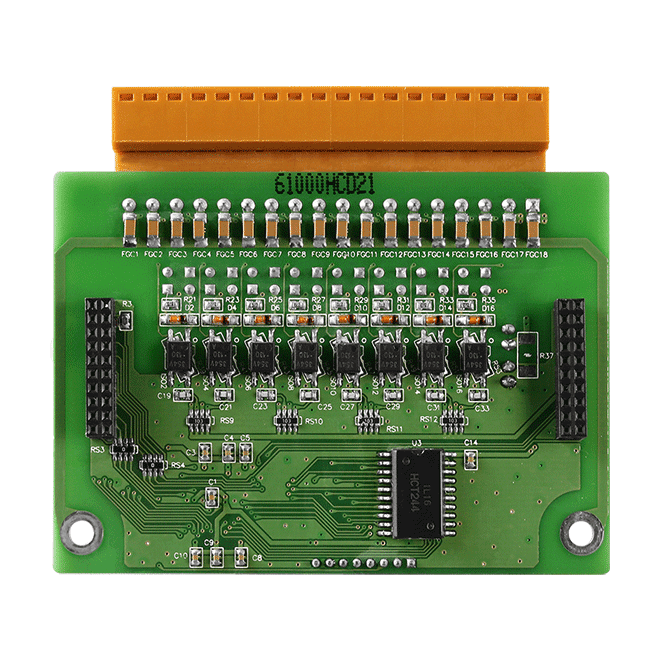

The XW110i CR is a 16-channel isolated digital input expansion board from the XW-board series, designed for the uPAC-5000, LP-51xx and WP-51xx PAC platforms. It adds 16 digital inputs that accept either dry contact or wet contact signals, so a single board can handle switches and relays as well as DC voltage signals.
Each channel supports sink or source type wiring. The wet contact input turns ON at +10 VDC to +50 VDC and OFF at +4 VDC maximum, while the dry contact input turns ON when closed to GND and OFF when open. Isolation is rated at 3750 VDC and the wet contact inputs are protected against overvoltage up to 60 VDC.
Only one XW-board can be fitted to each PAC, so the XW110i CR is suited to projects where the controller's onboard I/O needs a 16-point isolated digital input extension. Typical power consumption is 0.6 W, and the board operates from -25 to +75 °C.
Applications
- Digital input expansion for uPAC-5000 PAC systems
- Digital input expansion for LP-51xx PAC systems
- Digital input expansion for WP-51xx PAC systems
- Monitoring of dry contact switches and wet contact DC signals
| Product type: | Expansion Board |
|---|---|
| Interface: | XW-board |
| Digital inputs: | 16 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | Dry + Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 VDC ~ +50 VDC |
| OFF Voltage Level | Wet: +4 VDC max. Dry: Open |
| Isolation | 3750 VDC |
| Input Impedance | 10 K Ohm |
| Overvoltage Protection | 60 VDC for Wet Contact |
| Power | |
| Consumption | 0.6 W |
| Mechanical | |
| Dimensions (mm) | 66 mm x 82 mm x 17 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
