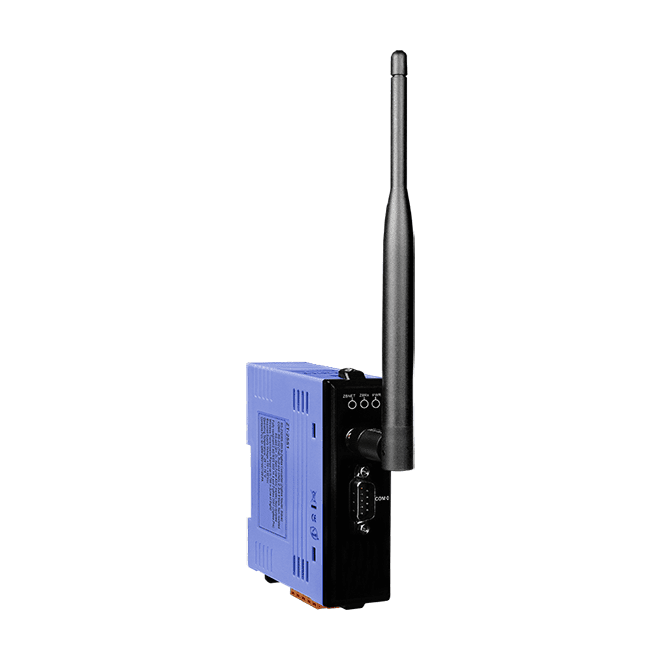

ZT-2551 RS-232/RS-485 to ZigBee Wireless Converter and Router
Wireless RS-232/RS-485 to ZigBee converter with ZigBee Pro (2007) support, AES-128 encryption and router capability to extend range. DIN-rail mountable.
- Converts RS-232 or RS-485 serial data to a ZigBee wireless network in the 2.4 GHz ISM band
- Fully compliant with IEEE 802.15.4 / ZigBee and ZigBee Pro (ZigBee 2007) specifications
- Acts as a ZigBee router to extend transmission range and improve signal quality
- AES-128 encryption for wireless communication
- Broadcast transmission for redundant paths and unicast transmission to reduce network loading
- Topology utility for network monitoring and improvement
1.606,93 kr. pr. stk.
| 1–9 stk. | 1.606,93 kr. | |
|---|---|---|
| 10–30 stk. | 1.554,61 kr. | −3 % |
| 31+ stk. | 1.524,72 kr. | −5 % |
Produktinformation "ZT-2551 RS-232/RS-485 to ZigBee Wireless Converter and Router"
The ZT-2551 CR is a compact wireless converter that links serial RS-232 or RS-485 devices into an IEEE 802.15.4 ZigBee personal area network. It operates in the 2.4 GHz ISM band and is fully compliant with the ZigBee and ZigBee Pro (ZigBee 2007) specifications, so it can be integrated into a ZigBee network without changes to the serial device itself.
Engineers will value its routing function. The unit can act as a ZigBee router, passing data between parent and child nodes to extend transmission range and improve signal quality. Broadcast transmission supports redundant paths, while unicast transmission reduces network loading. A topology utility helps monitor and improve the network, and the RF output power is adjustable.
Configuration is handled through a Windows GUI utility, which allows settings to be chosen according to the application, including ZigBee variables such as the PAN ID. AES-128 encryption protects wireless traffic, and source identification is available for non-addressed device data. The plastic housing mounts on a DIN rail, and the unit is rated for an operating temperature of -25 ~ +75 °C.
Applications
- Wireless extension of RS-232 or RS-485 serial links
- Serial device connectivity over ZigBee personal area networks
- Extending the range of wireless serial networks using router function
| Product type: | Converter |
|---|---|
| Interface: | RS-232, RS-485 |
| Protocol: | ZigBee |
| Ports: | 2 |
| Isolation: | RS-485 non-isolated |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 8-bit microprocessor |
| LED Indicators | |
| Status | 1 x Power 1 x Net 1 x RxD |
| RF | |
| Channels | 16 |
| Transmission Power | Up to 10 dBm EIRP |
| ZigBee | |
| Antenna | 5 dBi Omni-Directional antenna |
| Max. Slaves | 255 |
| Transmission Distance (LoS) | 300 meters |
| COM Ports | |
| Ports | 1 x RS-232(TxD, RxD and GND; DB9 Male) 1 x RS-485(DATA+, DATA-; Internal ASIC Self-tuner; Non-isolated) |
| Power | |
| Input Range | 1 x RS-232(TxD, RxD and GND; DB9 Male) 1 x RS-485(DATA+, DATA-; Internal ASIC Self-tuner; Non-isolated) |
| Consumption | 1 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 30 x 87 x 110 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
