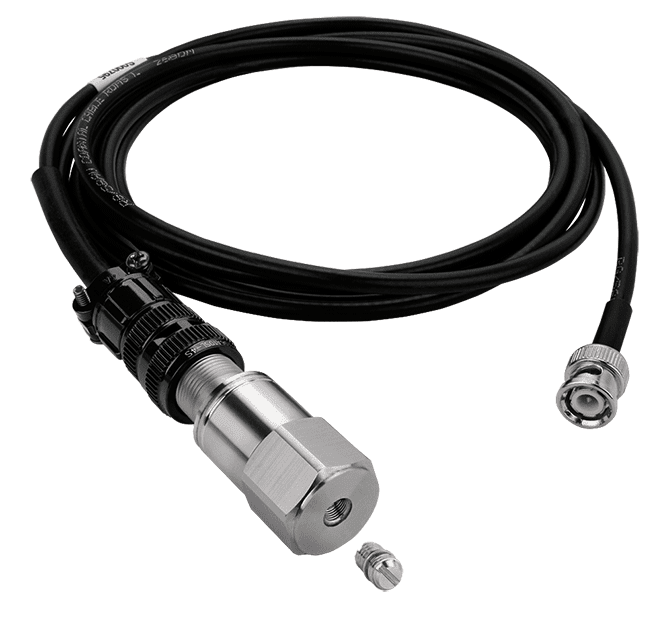

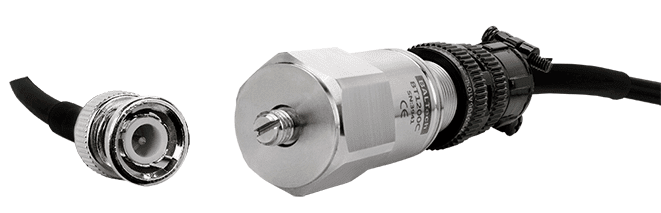

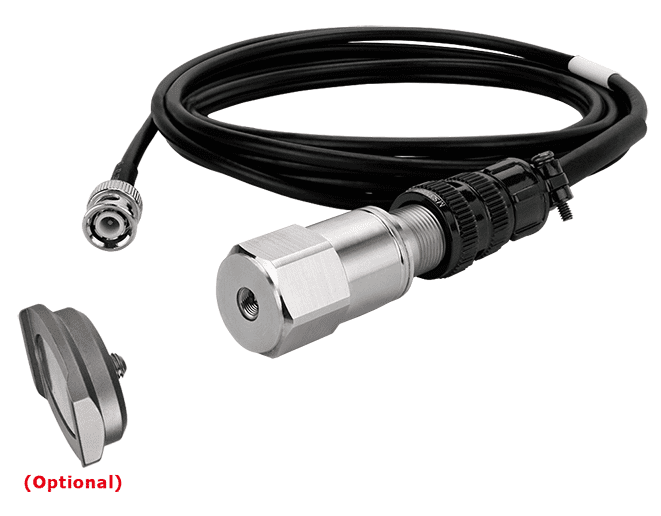

iSN-701-F15-L030 1-Axis IEPE Vibration Accelerometer, ±80g, 100mV/g
1-axis IEPE accelerometer with a ±80g measuring range, 100mV/g sensitivity and 0.5Hz to 15kHz frequency response, aimed at vibration analysis and supplied with a 3 m cable.
- 1-axis IEPE accelerometer for vibration measurement
- Amplitude range ±80g with 100mV/g sensitivity
- Frequency response from 0.5Hz to 15kHz
- Homotaxial design
- IP68 rated without cable
- Compact Ø22.9 x 53.3 mm housing
4.880,65 kr. pr. stk.
| 1–9 stk. | 4.880,65 kr. | |
|---|---|---|
| 10–30 stk. | 4.731,17 kr. | −3 % |
| 31+ stk. | 4.634,00 kr. | −5 % |
Produktinformation "iSN-701-F15-L030 1-Axis IEPE Vibration Accelerometer, ±80g, 100mV/g"
iSN-701-F15-L030 CR is a single-axis IEPE accelerometer for measuring vibration. It offers a ±80g amplitude range, a sensitivity of 100mV/g and a frequency response from 0.5Hz to 15kHz, which suits engineers who need to capture both low-frequency movement and higher-frequency vibration content in one sensor.
The sensor uses a homotaxial construction and is rated IP68 without its cable. It measures Ø22.9 x 53.3 mm and is supplied with a 3 m cable. It runs from an 18 to 30 VDC supply drawing 2 to 10 mA, with a bias voltage of 10 to 14 VDC.
The device is designed primarily for vibration analysis applications. The ordering code is the CR variant, and the page lists RoHS and WEEE compliance for this model.
Applications
- Vibration analysis
| Product type: | Accelerometer |
|---|---|
| Power input: | 18~30 VDC |
Specifikationer
| Vibration Measurement | |
|---|---|
| Axes | 1 |
| Sensor Type | IEPE |
| Amplitude Range | ±80g |
| Frequency Range | 0.5Hz~15kHz |
| Sensitivity | 100mV/g |
| Bais Voltage | 10~14VDC |
| Power | |
| Input Range | 18~30VDC, 2~10mA |
| Mechanical | |
| Dimensions (mm) | Ø22.9 x 53.3 |
| Ingress Protection Rating | IP68 (Without cable) |
| Cable | |
| Length | 3m |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
