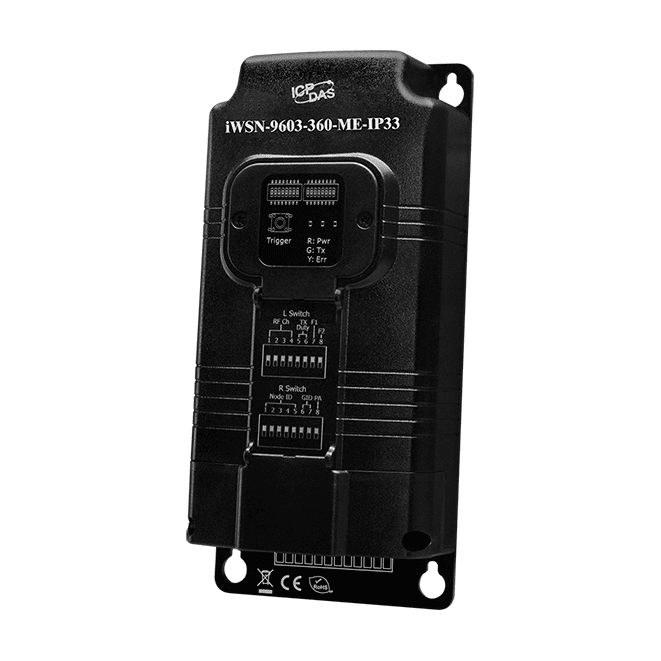

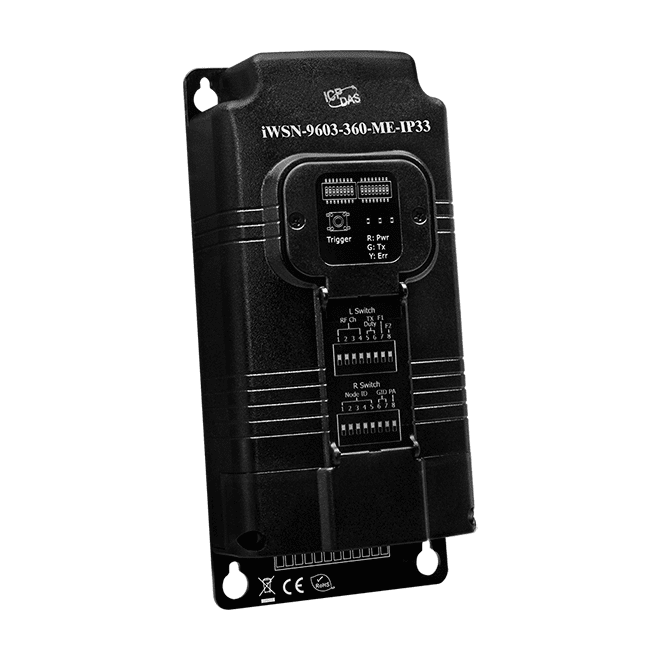

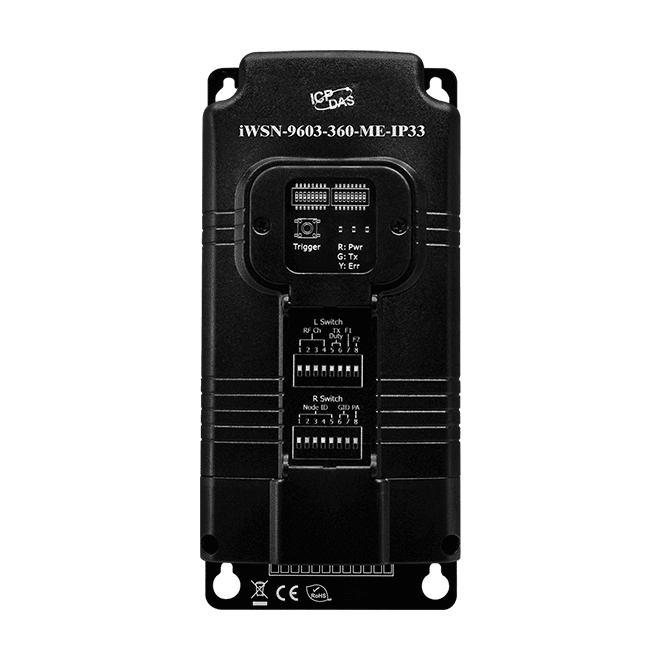

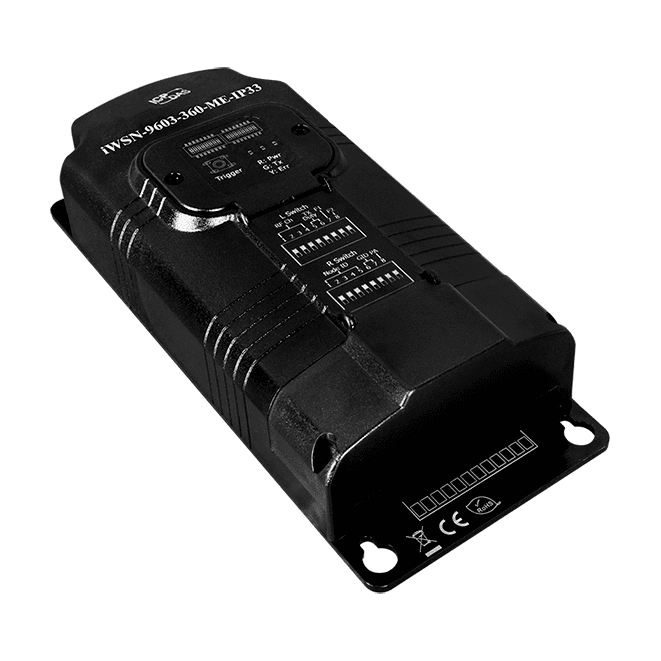

iWSN-9603-360-ME-IP33 Wireless 3-Phase Power Meter, 400A CT, 36 mm
Wireless 3-phase, 2-loop power meter supplied with six 400A split current transformers (36 mm bore) for AC energy monitoring. Powered from the measured voltage cable and reports over 433 MHz radio.
- Measures 2-loop 3-phase or 4-loop single-phase AC circuits
- Six 400A split CTs, 36 mm inside diameter, 8 m wire lead
- Wiring options: 3P4W, 3P3W, 3P3W 2CT, 1P3W and 1P2W
- Self-powered from the measured voltage cable, 100 - 480 VAC
- True RMS voltage and current with bi-directional kWh measurement
- 433 MHz radio with up to 64 wireless sub-networks
9.806,15 kr. pr. stk.
| 1–9 stk. | 9.806,15 kr. | |
|---|---|---|
| 10–30 stk. | 9.514,66 kr. | −3 % |
| 31+ stk. | 9.320,33 kr. | −5 % |
Produktinformation "iWSN-9603-360-ME-IP33 Wireless 3-Phase Power Meter, 400A CT, 36 mm"
iWSN-9603-360-ME-IP33 is a wireless power meter for monitoring AC circuits in plant and machinery. It measures two 3-phase loops or four single-phase loops and is supplied with six 400A split current transformers, each with a 36 mm inside diameter and an 8 m wire lead. Because it draws its supply from the measured voltage cable, no separate power wiring is required, which simplifies distributed deployment and quick setup.
The meter reports true RMS voltage and current, active power, active energy, power factor and frequency, with bi-directional kWh measurement. Each reading is time-stamped by a built-in RTC, and a 3-minute history cache helps fill gaps in the data. Communication runs on 433 MHz radio, supporting up to 64 wireless sub-networks, and the unit is configured with DIP switches.
The IP33 housing with connector cover is intended for installations outside a panel box, where protection against short circuits caused by fire sprinkler activation is required. It is suited to energy efficiency work, power information management, carbon emission calculation, predictive maintenance and large-scale power consumption analysis.
Applications
- Machine and process power efficiency improvement
- Power information administration
- Calculation of carbon emission
- Predictive maintenance
- Big data analysis of power consumption
| Product type: | Power meter |
|---|---|
| Interface: | 433 MHz wireless |
| Power input: | 100 - 480 VAC |
| Operating temperature: | -30 ~ +50 °C |
| Mounting: | Wall-mount |
| Housing: | IP33 |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | +/- 500 V |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| LED Indicators | |
| Status | 1 x Power 1 x Tx 1 x Error |
| AC Power Measurement | |
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops | 4(Single Phase)/ 2(Three Phase) |
| Input Voltage | 100 - 480 VAC (58 - 277 VAC single phase) |
| Input Current | iWSN-9603-160-ME-IP33: CTØ16 mm (1 A ~ 100 A) iWSN-9603-240-ME-IP33: CTØ24 mm (1 A ~ 200 A) iWSN-9603-360-ME-IP33: CTØ36 mm (1 A ~ 400 A) |
| Input Frequency | 50/60 Hz |
| Wh Accuracy | Better than 1% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Power Factor (PF), Frequency |
| Data Update Rate | 1, 10, 30, or 60 Seconds |
| RF | |
| Channels | 0 ~ 15 |
| Group ID | 0 ~ 3 |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) | 100 m |
| Node ID | 1 ~ 31 |
| Working Duty | 1, 10, 30, or 60 Seconds |
| Antenna | |
| Type | Built-in Omni-directional antenna |
| Power | |
| Consumption | 3W |
| Input Type | Three phase 4 wire x1, 100 - 480 VAC (58 - 277 VAC single phase) |
| Mechanical | |
| Dimensions (mm) | 85 x 184 x 47 (W x L x H) |
| Installation | Wall-mount |
| Ingress Protection Rating | IP33 |
| Environment | |
| Operating Temperature | -30 °C ~ +50 °C |
| Storage Temperature | -40 °C ~ +55 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
