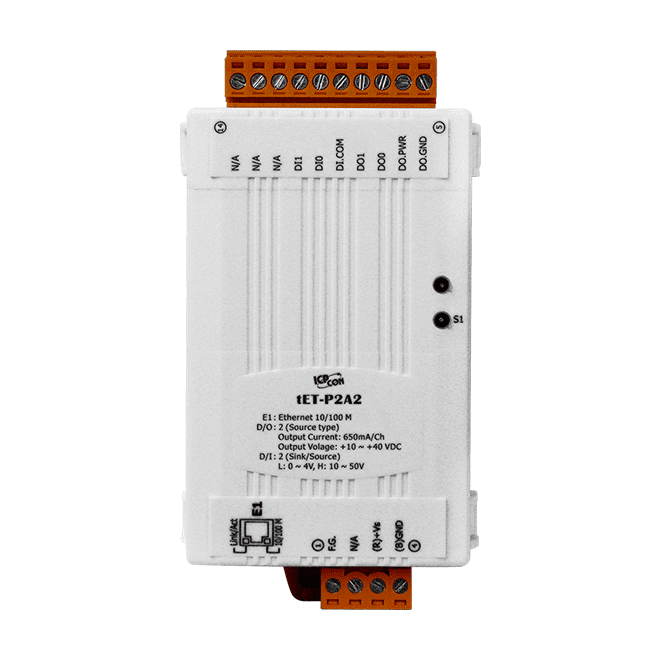

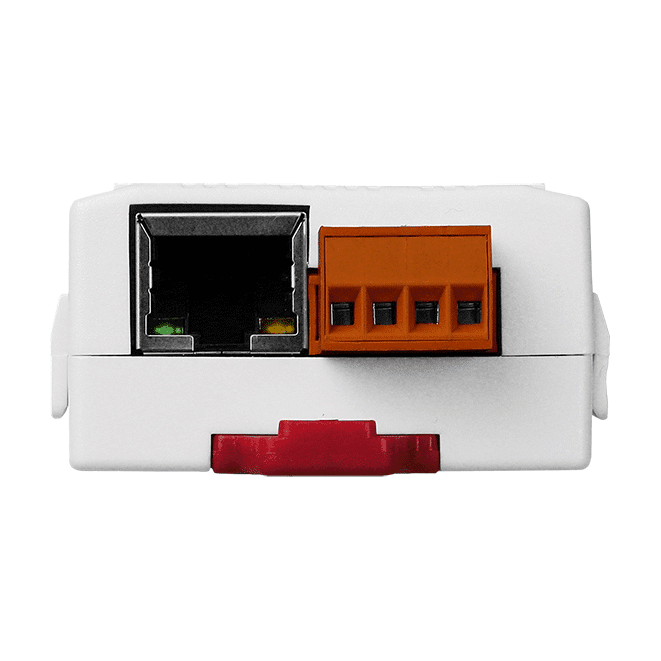

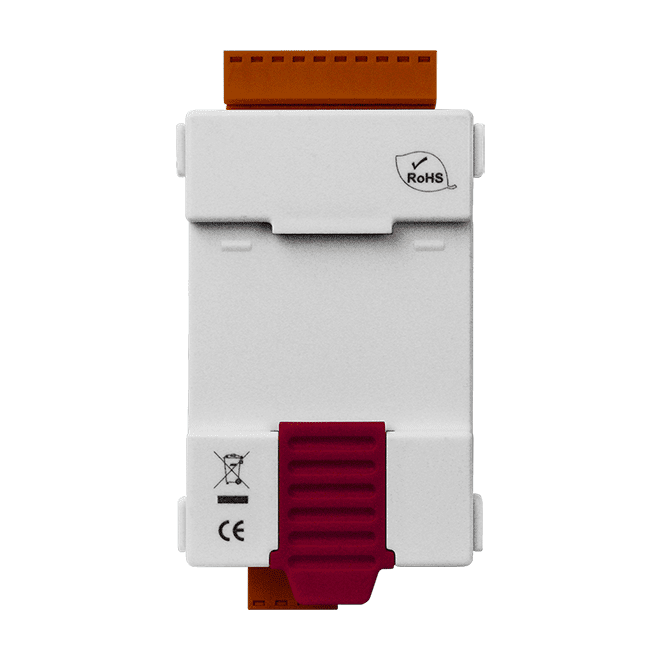

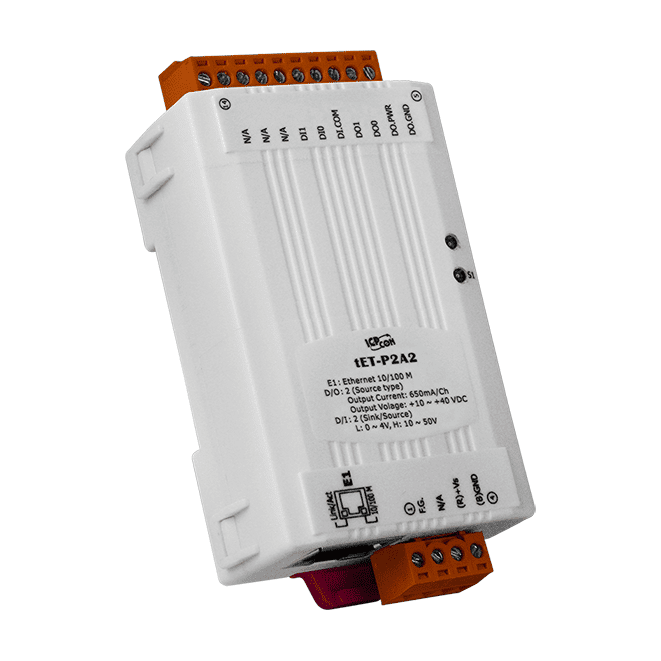

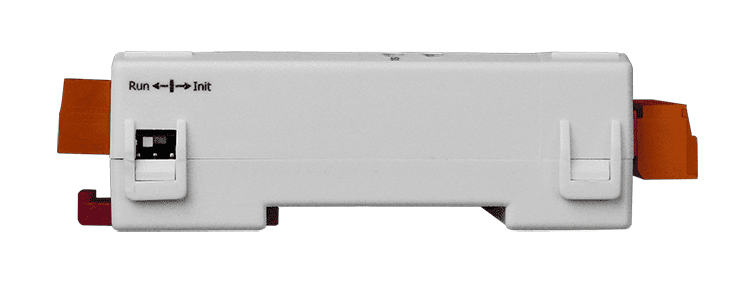

tET-P2A2 Tiny Ethernet I/O Module, 2-ch DI and 2-ch DO (PNP)
Compact DIN-rail Ethernet I/O module with 2 digital inputs and 2 source-type open-collector outputs, controlled over Modbus TCP, Modbus UDP or MQTT.
- Two digital inputs (wet contact, sink/source) with latched DI, 32-bit counters and frequency measurement
- Two source-type open-collector outputs, 650 mA per channel, with short-circuit protection
- Modbus TCP, Modbus UDP and MQTT protocol support over one 10/100 Base-Tx RJ-45 port
- Dual-watchdog function: CPU watchdog and host watchdog with a programmable safe output value
- DI-to-DO pair connection (push and pull) over Ethernet without a host controller
- Built-in web server for configuration, with password and IP filter access control
724,99 kr. pr. stk.
| 1–9 stk. | 724,99 kr. | |
|---|---|---|
| 10–30 stk. | 702,57 kr. | −3 % |
| 31+ stk. | 687,62 kr. | −5 % |
Produktinformation "tET-P2A2 Tiny Ethernet I/O Module, 2-ch DI and 2-ch DO (PNP)"
The tET-P2A2 CR is a compact Ethernet I/O module that monitors two digital inputs and switches two digital outputs over a 10/100 Mbps network. It is designed for engineers who need remote DI/DO access in a small footprint, with Modbus TCP as the main control interface for connection to HMI, SCADA, PLC and other software systems.
Each digital input is a wet-contact type with sink/source capability, latched input and 32-bit counter functions, and frequency measurement up to 3.5 kHz without filter. The outputs are source-type open-collector channels rated at 650 mA per channel, with short-circuit protection. Input and output circuits are isolated at 3750 Vrms. The module can also be set up for DI-to-DO pair connection across the Ethernet network.
For resilience, the module provides a CPU watchdog and a host watchdog. If the host fails, the outputs can move to a predefined safe value, and the power-on value of the outputs can also be set. A built-in web server handles configuration, and firmware can be updated via Ethernet. The unit is powered from a terminal block at +12 to +48 VDC and mounts on DIN rail.
Applications
- Factory automation
- Building automation
- Home automation
- Remote maintenance
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Digital inputs: | 2 |
| Digital outputs: | 2 |
| Ports: | 1 |
| Isolation: | 3750 Vrms |
| Power input: | +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet |
| Digital Input/Counter | |
| Channels | 2 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 to +50 VDC |
| OFF Voltage Level | +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 3.5 kHz (without filter) |
| Min. Pulse Width | 0.15 ms |
| Isolation | 3750 Vrms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Digital Output | |
| Channels | 2 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +10 to +40 VDC |
| Load Current | 650 mA/channel |
| Overvoltage Protection | +48 VDC |
| Short-circuit Protection | Yes |
| Isolation | 3750 Vrms |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 0.9 W |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 95 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
