tET-P2C2 Tiny Ethernet I/O Module, 2-ch DI and 2-ch NPN Sink DO
Compact Ethernet I/O module with 2 wet-contact digital inputs and 2 NPN sink open-collector outputs, controlled over Modbus TCP/UDP or MQTT and mounted on DIN-rail.
- Two digital inputs (wet contact, sink/source) and two open-collector outputs (sink, NPN), each channel isolated at 3750 Vrms
- Modbus TCP, Modbus UDP and MQTT support over a single 10/100 Base-Tx RJ-45 port
- DI-to-DO pair connection over Ethernet using Modbus/TCP, with I/O pair push and pull modes
- Dual-watchdog design: CPU watchdog plus host watchdog with predefined safe output value
- Latched DI, 32-bit DI counters (up to 4,294,967,295) and frequency measurement (3.5 kHz without filter)
- Built-in web server for configuration, password and IP filter access control
724,99 kr. pr. stk.
| 1–9 stk. | 724,99 kr. | |
|---|---|---|
| 10–30 stk. | 702,57 kr. | −3 % |
| 31+ stk. | 687,62 kr. | −5 % |
Produktinformation "tET-P2C2 Tiny Ethernet I/O Module, 2-ch DI and 2-ch NPN Sink DO"

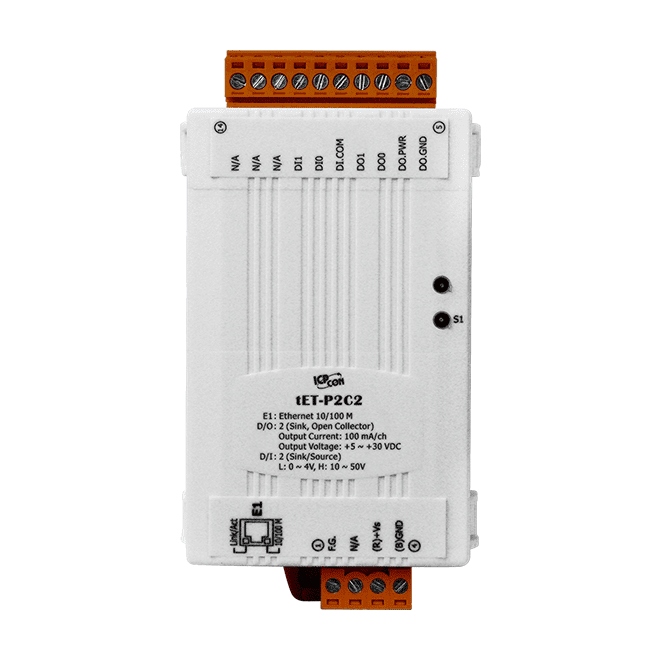

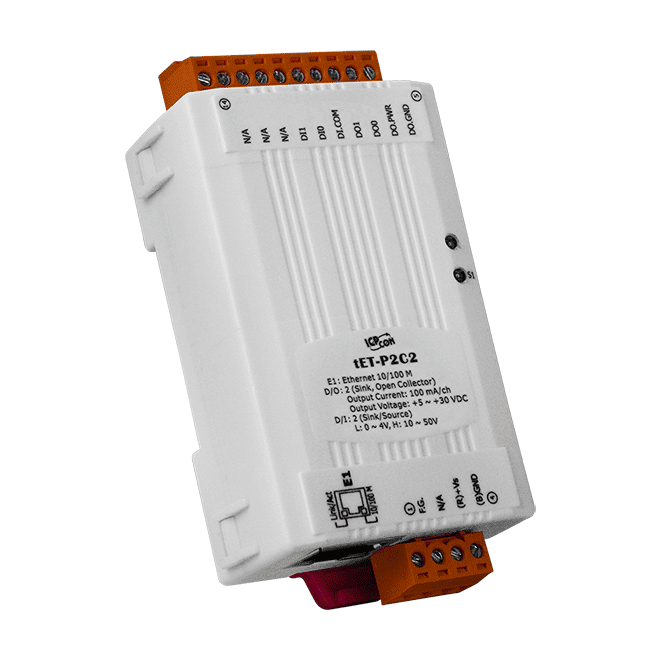

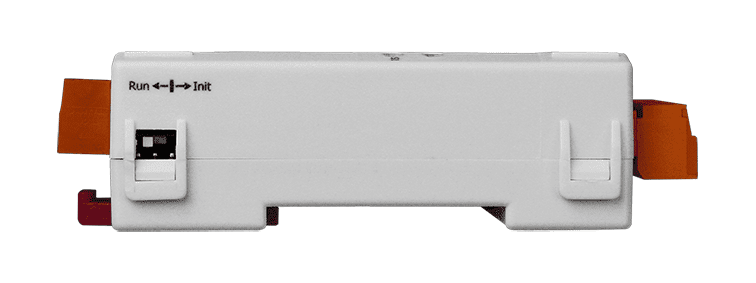

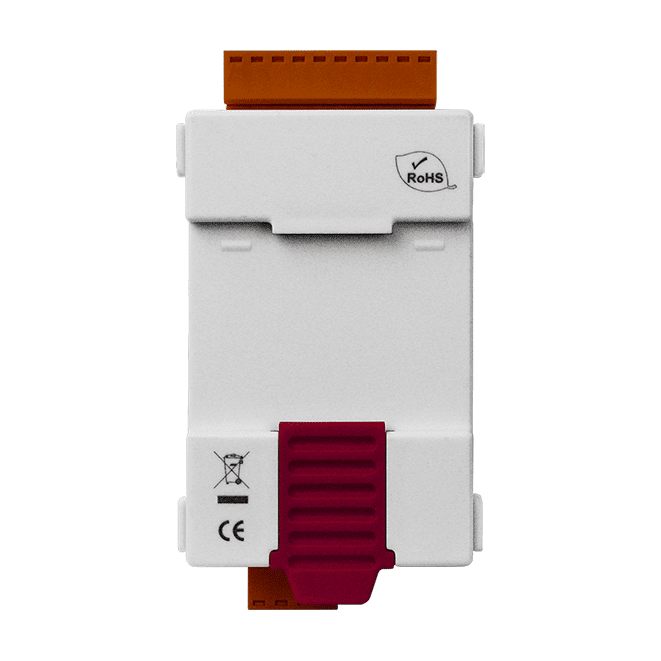

tET-P2C2 CR is a compact Ethernet I/O module for monitoring and switching digital signals over IP. It handles two digital inputs and two open-collector outputs in the NPN sink configuration, and is controlled over a 10/100 Base-Tx network using Modbus TCP, Modbus UDP or MQTT. Its small footprint allows it to be fitted in tight control cabinets or even embedded directly within a machine.
The module can be configured through its built-in web server and can create DI-to-DO pair connections over Ethernet, so the status of a local input can drive a remote output in the background without a host controller in the loop. Inputs support latched operation, 32-bit counting and frequency measurement, while the outputs offer power-on and safe values.
For resilience, the module provides a CPU watchdog that resets the system if the firmware misbehaves, and a host watchdog that moves the outputs to their predefined safe state if the controlling PC or PLC fails. Firmware can be updated over Ethernet, and the unit is powered from a terminal block at +12 to +48 VDC.
Applications
- Factory automation
- Building automation
- Home automation
- Remote maintenance
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Digital inputs: | 2 |
| Digital outputs: | 2 |
| Ports: | 1 |
| Isolation: | 3750 Vrms |
| Power input: | +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet |
| Digital Input/Counter | |
| Channels | 2 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 to +50 VDC |
| OFF Voltage Level | +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 3.5 kHz (without filter) |
| Min. Pulse Width | 0.15 ms |
| Isolation | 3750 Vrms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Digital Output | |
| Channels | 2 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 to +30 VDC |
| Load Current | 100 mA/channel |
| Overvoltage Protection | +60 VDC |
| Isolation | 3750 Vrms |
| Ethernet | |

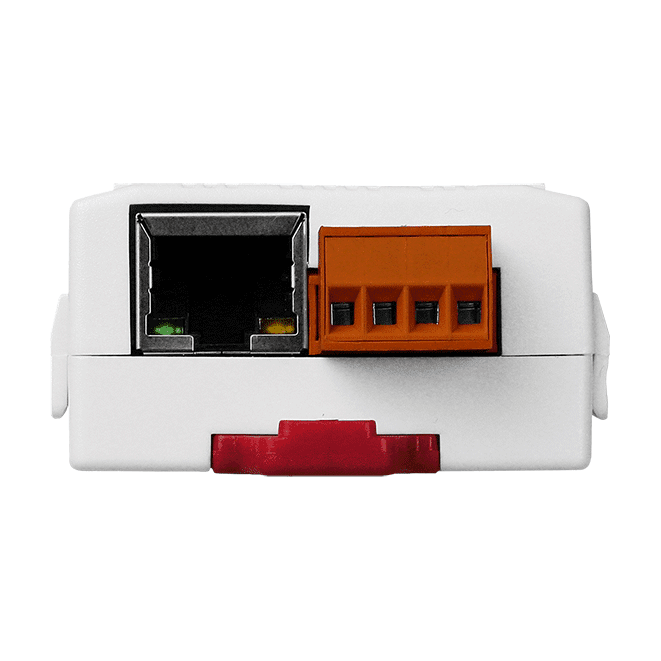

| Ports | 1 x RJ-45, 10/100 Base-Tx |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 0.9 W |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 95 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
