tM-P3R3 RS-485 I/O Module, 3-ch Wet DI and 3-ch Power Relay Output
The tM-P3R3 CR is an RS-485 I/O module with 3 wet-contact digital inputs and 3 Form A power relay outputs, photocoupler isolated for on/off control in automation systems.
- Three wet-contact digital inputs, configurable as sink- or source-type through wiring
- Three Form A (SPST N.O.) power relay outputs, each photocoupler isolated
- All digital input channels can be used as 16-bit counters (maximum 65535)
- Programmable power-on and safe digital output values
- Dual watchdog with 3750 VDC intra-module isolation and 4 kV ESD protection
- Single RS-485 port supporting DCON, Modbus RTU and Modbus ASCII
523,19 kr. pr. stk.
| 1–9 stk. | 523,19 kr. | |
|---|---|---|
| 10–30 stk. | 508,25 kr. | −3 % |
| 31+ stk. | 493,30 kr. | −6 % |
Produktinformation "tM-P3R3 RS-485 I/O Module, 3-ch Wet DI and 3-ch Power Relay Output"

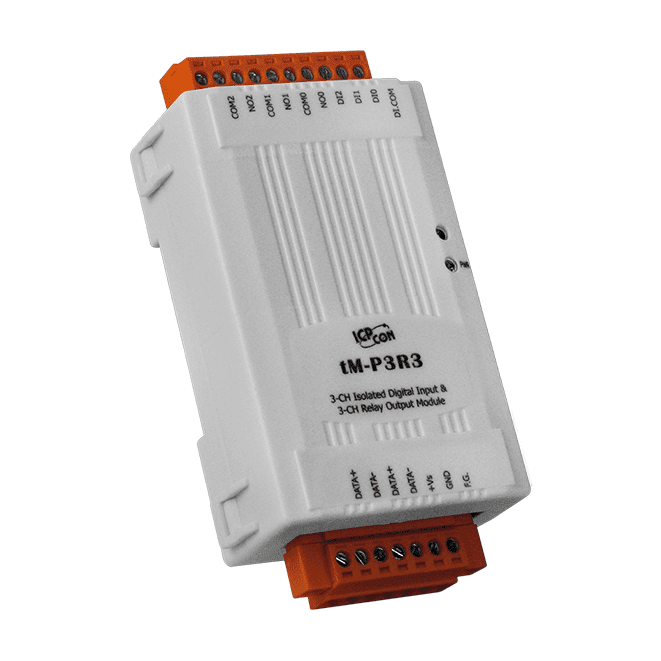

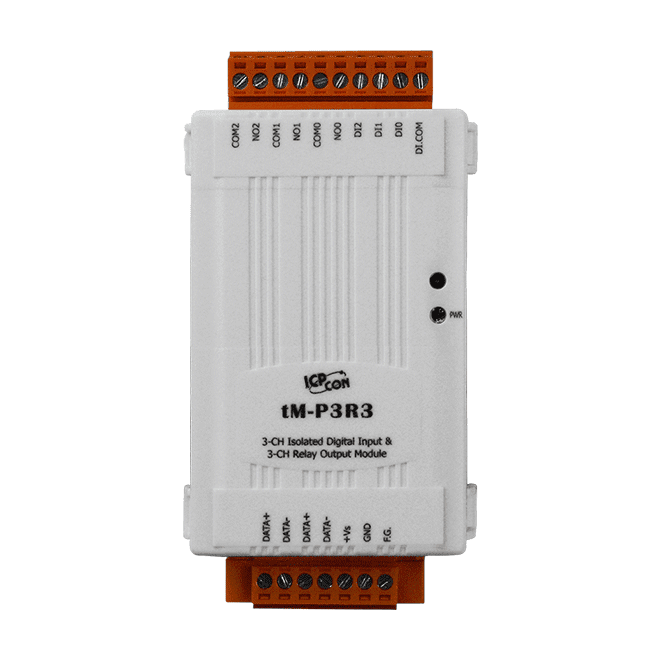

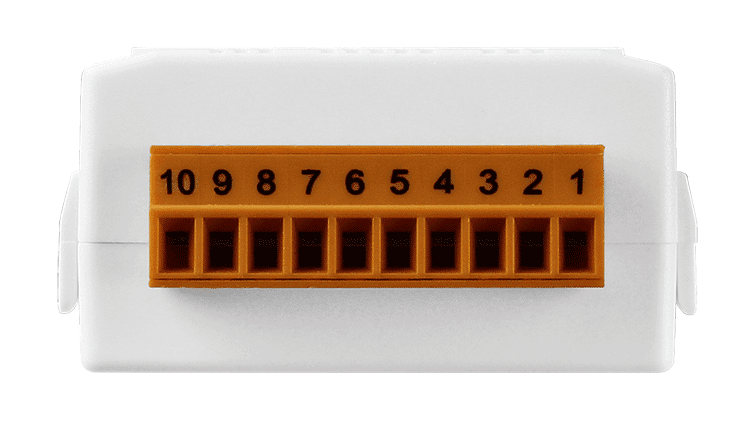

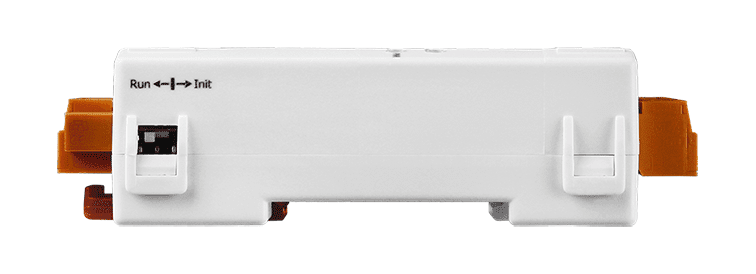

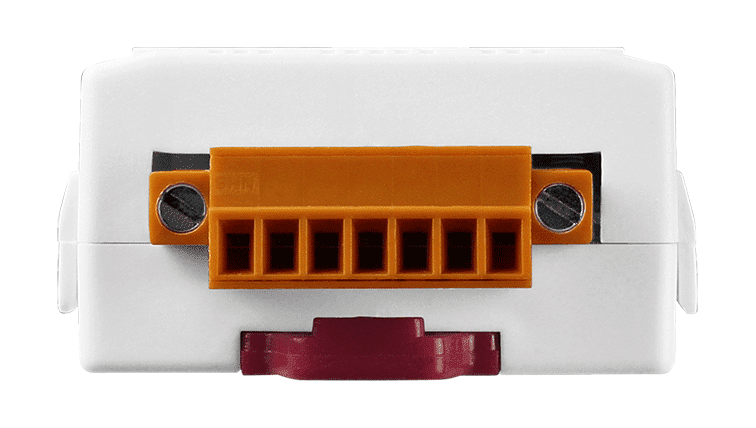

tM-P3R3 CR is a DIN-rail RS-485 I/O module that combines three wet-contact digital inputs with three Form A (SPST N.O.) power relay outputs. Each channel is photocoupler isolated, and the digital inputs accept either sink- or source-type wiring, so one module suits a wide range of field devices and switch arrangements.
Every digital input can also be used as a 16-bit counter, with a maximum count of 65535 and an input frequency of 100 Hz. Power-on and safe digital output values are programmable, so outputs can be set to a known state when the module starts or when communication is lost. A dual watchdog and 3750 VDC intra-module isolation add to its suitability for control panels.
The module communicates over a single RS-485 port using DCON, Modbus RTU or Modbus ASCII, at baud rates from 1200 to 115200 bps. It is powered from 10 to 30 VDC through a terminal block and is rated for an operating temperature of -25 ~ +75 °C.
Applications
- All types of on/off control
- Industrial automation
- Industrial machinery
- Building automation
- Food and beverage systems
- Semiconductor fabrication
- Control systems
| Product type: | Remote I/O module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus ASCII, Modbus RTU |
| Digital inputs: | 3 |
| Relay outputs: | 3 |
| Ports: | 1 |
| Isolation: | 3750 VDC |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Digital Input/Counter | |
| Channels | 3 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 ~ +50 VDC |
| OFF Voltage Level | +1 VDC max. |
| Max. Counts | 65535 (16-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 10 kΩ, 0.5 W |
| Overvoltage Protection | 70 VDC |
| Relay Output | |
| Channels | 3 |
| Type | Power Relay, Form A (SPST N.O.) |
| Operate Time | 6 ms |
| Release Time | 3 ms |
| Electrical Endurance | VDE: 5 A @250 VAC 30,000 ops (10 ops/minute) at 75°C 5 A @30 VDC 70,000 ops (10 ops/minute) at 75°C UL: 5 A @250 VAC/30 VDC 6,000 ops 3 A @250 VAC/30 VDC 100,000 ops 5 A @30 VDC 70,000 ops (10 ops/minute) at 75°C |
| Mechanical Endurance | 20,000,000 ops at no load (300 ops/minute) |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
| Protocol | DCON, Modbus RTU, Modbus ASCII |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 0.8 W max. |
| Powered from Terminal Block | 10 ~ 30 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 98 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
