uPAC-7186EX-SM-G Ethernet PAC, MiniOS7, RS-232/485, Gray Cover
Palm-size programmable automation controller with Ethernet, RS-232/RS-485 and MiniOS7 firmware, for bringing serial devices onto Ethernet networks. Gray cover variant.
- Built-in MiniOS7 framework with C language software development tool kits
- Ethernet 10/100 Base-TX RJ-45 port plus RS-232 and RS-485 serial ports, up to 115200 bps
- 80186-80 CPU, 16-bit and 80 MHz
- 512 KB flash, 16 KB EEPROM, 640 KB SRAM and 31 bytes NVRAM
- I/O expansion bus supporting one X-board
- 64-bit hardware serial number, real-time clock and watchdog timer
2.040,43 kr. pr. stk.
| 1–9 stk. | 2.040,43 kr. | |
|---|---|---|
| 10–30 stk. | 1.973,16 kr. | −3 % |
| 31+ stk. | 1.935,79 kr. | −5 % |
Produktinformation "uPAC-7186EX-SM-G Ethernet PAC, MiniOS7, RS-232/485, Gray Cover"

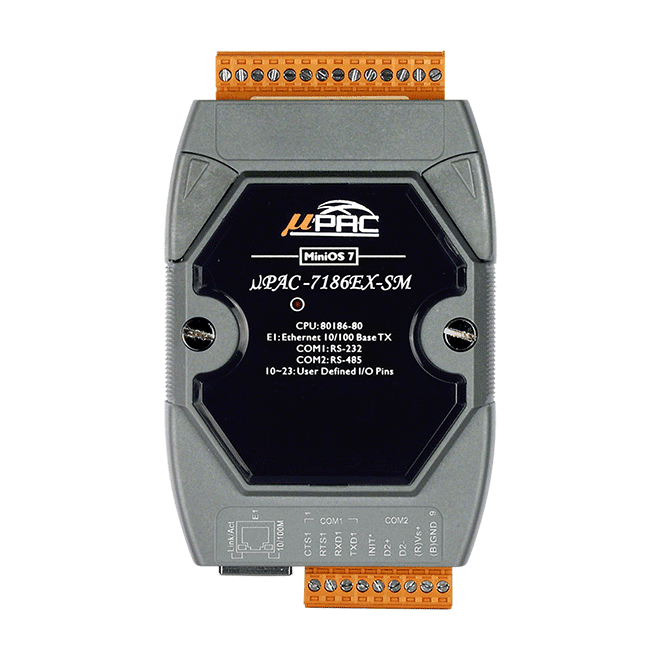

The uPAC-7186EX-SM-G is a palm-size programmable automation controller built around an 80186-80 CPU and the MiniOS7 real-time framework. It combines a 10/100 Base-TX Ethernet port with RS-232 and RS-485 serial ports, so it can act as a gateway between serial field devices and Ethernet or Internet-connected systems.
Programming is done in C using the MiniOS7 software development tool kits, with Modbus libraries provided for communication. Data can be exposed to SCADA packages over standard Modbus, and an I/O expansion bus allows one X-board to add analogue, digital or serial I/O.

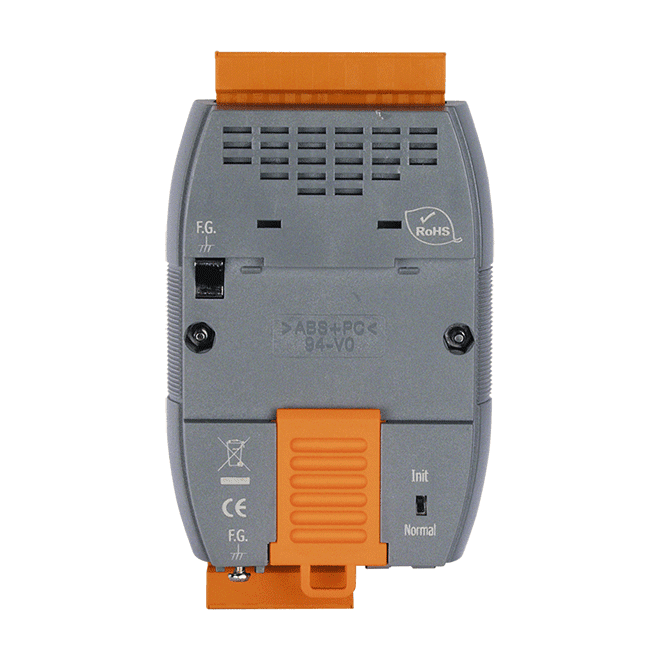

This ordering code is the gray cover version of the uPAC-7186EX-SM. Choose it when you need the same controller hardware in a gray housing, with the RoHS-compliant build sold under this code.
Applications
- Integrating serial devices into Ethernet and Internet communication networks
- Modbus communication with SCADA software
- Programmable local control with I/O expansion
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Ports: | 3 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Gray |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 640 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x System 1 x PoE |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
