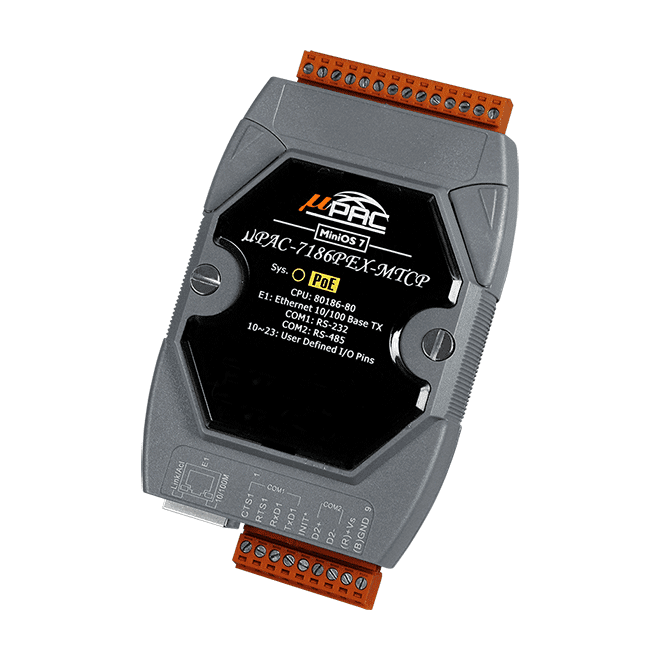

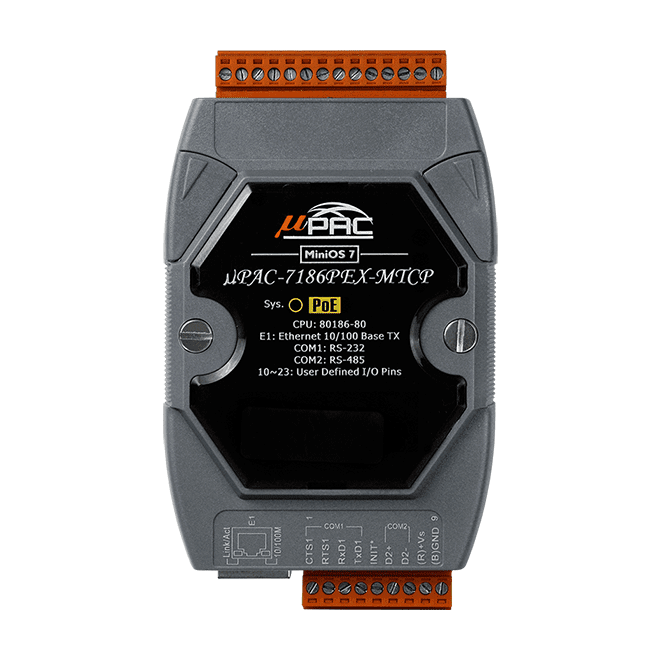

uPAC-7186PEX-MTCP-G PoE Palm-sized Modbus TCP to RTU Gateway
Palm-sized programmable gateway with PoE (IEEE 802.3af, Class 1) that bridges Modbus TCP to Modbus RTU or ASCII serial devices. Gray cover version.
- Modbus TCP to Modbus RTU or ASCII gateway for serial devices on Ethernet
- Power over Ethernet, IEEE 802.3af Class 1, powered from a PoE switch
- 1 x RJ-45 10/100 Base-TX Ethernet, 1 x RS-232 and 1 x RS-485 serial ports up to 115200 bps
- MiniOS7 operating system with C language software development tool kits
- 80186 CPU at 80 MHz with 512 KB flash and 512 KB SRAM
- I/O expansion bus supporting one X-board, with more than 30 boards available
2.174,96 kr. pr. stk.
| 1–9 stk. | 2.174,96 kr. | |
|---|---|---|
| 10–30 stk. | 2.115,17 kr. | −3 % |
| 31+ stk. | 2.070,33 kr. | −5 % |
Produktinformation "uPAC-7186PEX-MTCP-G PoE Palm-sized Modbus TCP to RTU Gateway"
uPAC-7186PEX-MTCP-G is a palm-sized programmable gateway that brings RS-232 and RS-485 serial devices onto an Ethernet network. It converts Modbus TCP requests from SCADA or HMI software into Modbus RTU or Modbus ASCII traffic for the equipment connected to its serial ports.
The unit receives power over the Ethernet cable through IEEE 802.3af Class 1 PoE, so it can be supplied directly from a PoE switch. The MiniOS7 operating system and C language development toolkits let engineers add custom integration logic, and the I/O expansion bus accepts one X-board for additional functions.
The -G suffix in this ordering code denotes the gray cover version. The unit mounts on a DIN rail and is rated for an operating temperature of -25 ~ +75 °C.
Applications
- Integrating serial Modbus RTU or ASCII devices into Ethernet networks
- Modbus communication with SCADA and HMI software
- Adding Ethernet connectivity to serial equipment in DIN-rail cabinets
| Product type: | Modbus gateway |
|---|---|
| Interface: | RJ-45, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 1 x RJ-45, 1 x RS-232, 1 x RS-485 |
| PoE: | Yes, IEEE 802.3af Class 1 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186, 80 MHz or compatible |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x System |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 1.5 W |
| Powered from PoE | Yes |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
