uPAC-7186PEXD-MTCP-G Palm-Sized Modbus TCP to RTU Gateway with PoE
Palm-sized programmable Modbus TCP to RTU/ASCII gateway with IEEE 802.3af Class 1 PoE, MiniOS7 firmware and an I/O expansion bus for integrating serial devices into Ethernet networks.
- Modbus TCP to Modbus RTU and Modbus ASCII gateway function for serial device integration
- Power over Ethernet (IEEE 802.3af, Class 1) over a standard Category 5 cable
- 1 x RJ-45 10/100 Base-TX Ethernet port plus 1 x RS-232 and 1 x RS-485, up to 115200 bps
- Built-in MiniOS7 with C language development tool kits
- I/O expansion bus supporting one X-board
- 80186-80 MHz CPU with 512 KB flash, 512 KB SRAM and 16 KB EEPROM
2.391,71 kr. pr. stk.
| 1–9 stk. | 2.391,71 kr. | |
|---|---|---|
| 10–30 stk. | 2.324,45 kr. | −3 % |
| 31+ stk. | 2.272,13 kr. | −5 % |
Produktinformation "uPAC-7186PEXD-MTCP-G Palm-Sized Modbus TCP to RTU Gateway with PoE"

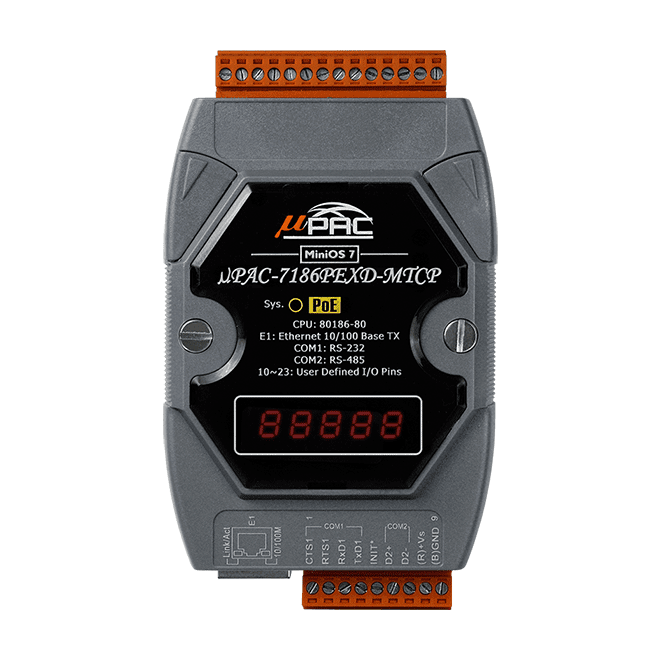

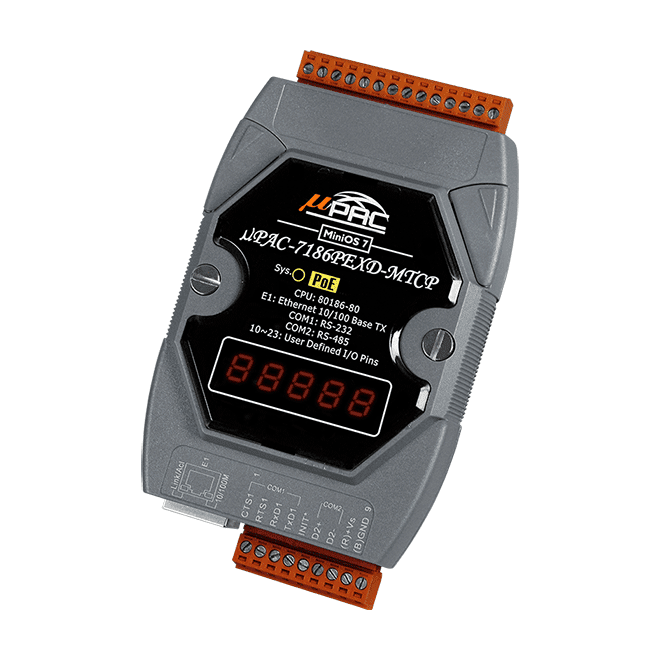

The uPAC-7186PEXD-MTCP-G bridges serial Modbus devices and Ethernet networks. It works as a Modbus TCP to Modbus RTU or Modbus ASCII gateway, letting SCADA and HMI systems that speak Modbus reach RS-232 and RS-485 equipment over a single RJ-45 connection.
Power can be supplied over the Ethernet cable through Power over Ethernet, using a standard Category 5 cable from a PoE switch, which removes the need for a separate local supply at the installation point. The unit runs the built-in MiniOS7 operating system and can be programmed in C with ICP DAS software development tool kits, including Xserver, VxComm and Modbus libraries.
The I/O expansion bus accepts one X-board to add functions such as digital I/O, analogue I/O or timer/counter. This grey-cover variant is supplied with the 7-segment LED display and is designed for DIN-rail mounting in the operating range of -25 ~ +75 °C.
Applications
- Connecting RS-232 and RS-485 Modbus RTU or Modbus ASCII devices to SCADA and HMI systems over Ethernet
- Adding PoE-powered gateway nodes to existing Ethernet infrastructure
- Expanding a controller with a single X-board for additional I/O functions
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 3 |
| PoE: | Yes (IEEE 802.3af, Class 1) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Gray cover |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186, 80 MHz or compatible |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x System |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 1.5 W |
| Powered from PoE | Yes |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
