ANT-8 8 dBi 2.4 GHz Omni-directional Dipole Antenna with 1 m Cable
An 8 dBi omni-directional dipole antenna for the 2.4 to 2.5 GHz band, supplied with a 1 m cable and an RP-SMA male plug connector.
- 8 dBi gain, omni-directional dipole type
- Covers the 2.4 to 2.5 GHz band
- RP-SMA male (plug) connector
- Supplied with a 1 m cable
- Operating temperature -20 °C to 60 °C
- Antenna body φ35 x 420 mm, 430 g
1.106,18 kr. pr. stk.
| 1–9 stk. | 1.106,18 kr. | |
|---|---|---|
| 10–30 stk. | 1.076,28 kr. | −3 % |
| 31+ stk. | 1.053,86 kr. | −5 % |
Produktinformation "ANT-8 8 dBi 2.4 GHz Omni-directional Dipole Antenna with 1 m Cable"

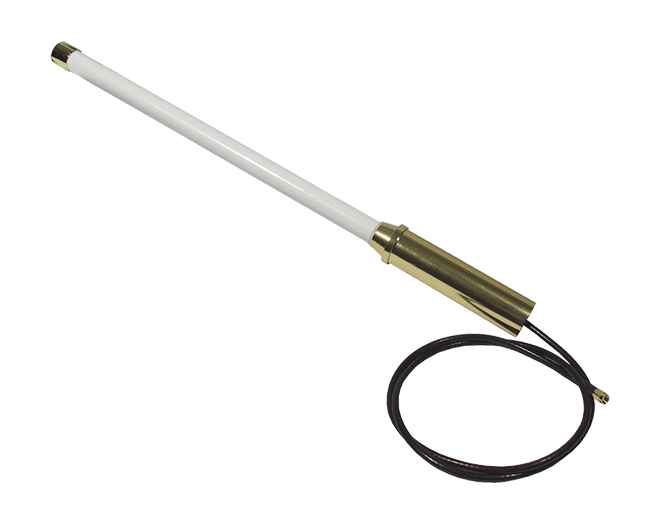

ANT-8 CR is an 8 dBi dipole antenna for 2.4 GHz wireless equipment. Its omni-directional pattern suits installations where coverage is needed in all horizontal directions rather than along a single bearing.
The antenna is fitted with a 1 m cable terminated in an RP-SMA male plug, so it connects directly to radio modules and devices that use a reverse-polarity SMA socket. It is specified for the 2.4 to 2.5 GHz band and an operating temperature range of -20 °C to 60 °C.
Dimensions of φ35 x 420 mm and a weight of 430 g apply to the antenna body only, excluding the cable.
Applications
- 2.4 GHz wireless devices with an RP-SMA antenna socket
- Omni-directional 2.4 GHz wireless links
| Product type: | Antenna |
|---|---|
| Interface: | RP-SMA |
| Operating temperature: | -20 ~ +60 °C |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | φ35 x 420 mm (Only Antenna Body) |
| Weight | 430 g (Only Antenna Body) |
| Environment | |
| Operating Temperature | -20 °C ~ 60 °C |
| Antenna | |
| Type | Dipole |
| Connector | RP SMA Male (Plug) |
| Gain (dBi) | 8 |
| Band | 2.4 ~ 2.5GHz |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
