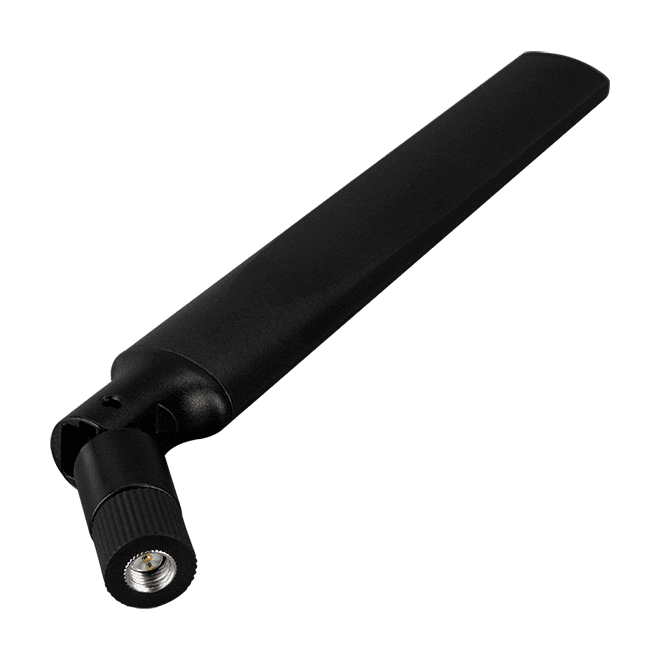

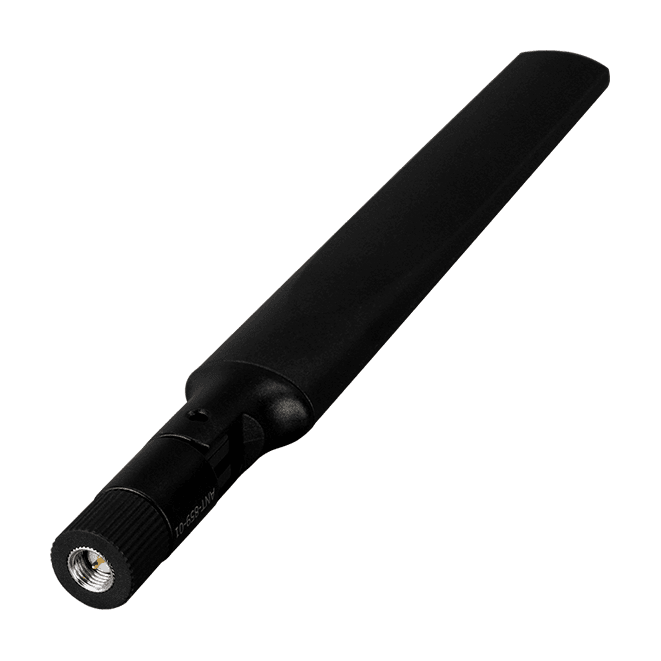

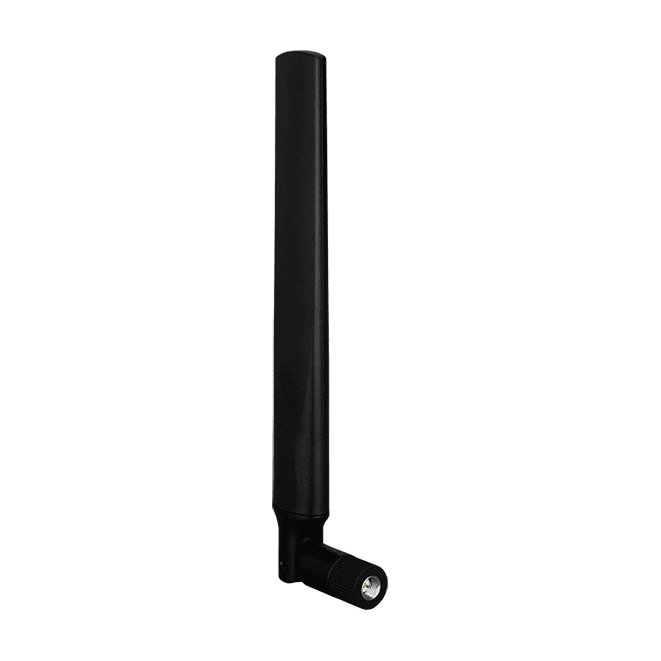

ANT-859-01 Omni-Directional 5G LTE Dipole Antenna, SMA Male, 4.5 dBi
Omni-directional dipole antenna with an SMA male plug for 2G, 3G, 4G LTE and 5G NR cellular bands, covering 617 MHz to 5925 MHz with a listed peak gain of 4.5 dBi.
- Dipole element, omni-directional pattern
- SMA male (plug) connector
- 2G GSM/GPRS, 3G WCDMA, 4G LTE and 5G NR (n1 to n98) coverage
- Frequency coverage from 617 MHz to 5925 MHz
- Listed peak gain of 4.5 dBi (4200 to 5000 MHz)
- Operating temperature -40 °C to +85 °C
194,33 kr. pr. stk.
| 1–9 stk. | 194,33 kr. | |
|---|---|---|
| 10–30 stk. | 186,86 kr. | −4 % |
| 31+ stk. | 179,38 kr. | −8 % |
Produktinformation "ANT-859-01 Omni-Directional 5G LTE Dipole Antenna, SMA Male, 4.5 dBi"
ANT-859-01 is a 4.5 dBi omni-directional dipole antenna for cellular wireless equipment. It carries an SMA male (plug) connector and covers the 2G GSM/GPRS, 3G WCDMA, 4G LTE and 5G NR bands listed in the datasheet, so one antenna can serve several generations of mobile connectivity.
Gain varies across the frequency range, from 0.74 dBi in the 803 to 960 MHz band to 4.5 dBi in the 4200 to 5000 MHz band. Check the per-band gain table against your required frequencies before specifying it for a link budget.
The antenna is rated for an operating temperature of -40 °C to +85 °C and is RoHS and WEEE listed. It measures 183.6 mm x 21.5 mm and weighs 23.8 ± 2 g.
Applications
- Cellular 2G, 3G, 4G LTE and 5G NR wireless connectivity
- Omni-directional antenna for wireless devices with an SMA male input
| Product type: | Antenna |
|---|---|
| Interface: | SMA Male (Plug) |
| Operating temperature: | -40 ~ +85 °C |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | 183.6 mm x 21.5 mm |
| Weight | 23.8 ± 2 g |
| Environment | |
| Operating Temperature | -40 °C ~ +85 °C |
| Antenna | |
| Type | Dipole |
| Connector | SMA Male (Plug) |
| Gain (dBi) | 1.04 dBi @ 617~798MHz 0.74 dBi @ 803~960MHz 2.31 dBi @ 1166‐1610MHz 3.58 dBi @ 1710‐2200MHz 3.88 dBi @ 2300‐2690MHz 2.26 dBi @ 3300‐3800MHz 4.5 dBi @ 4200‐5000MHz 4.31 dBi @ 5150‐5925MHz |
| Band | 617~798MHz 803~960MHz 1166‐1610MHz 1710‐2200MHz 2300‐2690MHz 3300‐3800MHz 4200‐5000MHz 5150‐5925MHz |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
