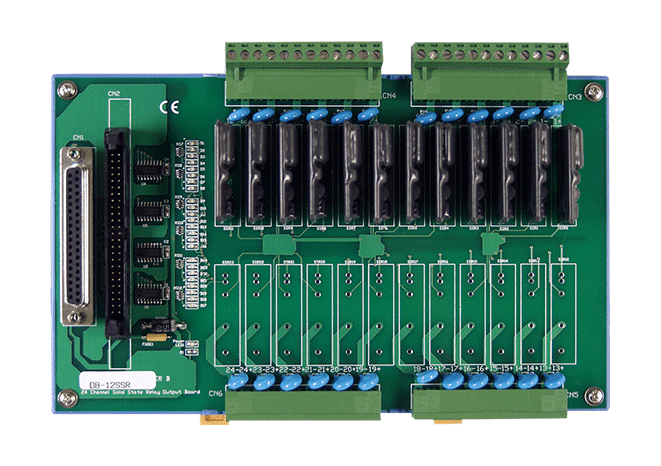

DB-12SSR/DIN 12-ch AC Solid-State Relay Daughter Board, DIN-rail Mount
12-channel AC solid-state relay daughter board with OPTO-22 compatible connector, supplied for DIN-rail mounting with CA-5015 50-pin flat cable.
- 12 AC solid-state relay channels, each rated 4 A at 250 V AC
- Connects directly to an OPTO-22 compatible board
- Optically isolated channels with LED relay status indication
- Screw terminals for straightforward field wiring
- DIN-rail mounting for cabinet installation
- CA-5015 flat cable (50-pin, 1.5 m) included
2.533,75 kr. pr. stk.
| 1–9 stk. | 2.533,75 kr. | |
|---|---|---|
| 10–30 stk. | 2.459,01 kr. | −3 % |
| 31+ stk. | 2.406,69 kr. | −5 % |
Produktinformation "DB-12SSR/DIN 12-ch AC Solid-State Relay Daughter Board, DIN-rail Mount"
DB-12SSR/DIN is a 12-channel AC solid-state relay board that plugs directly into an OPTO-22 compatible board, giving engineers a compact way to switch AC loads from a data acquisition system. Each channel is optically isolated, and LEDs show the relay state at a glance.
This DIN-rail variant suits panel and cabinet installations where the board needs to be fitted on a rail. Field wiring is made to screw terminals, and the CA-5015 flat cable (50-pin, 1.5 m) is included to make the connection to the host board.
Each channel is rated at 4 A at 240 V AC (4 A at 250 V AC per the feature list), with an operate time of 1/2 cycle of the voltage sine wave, 1 ms maximum. The board draws 400 mA at 5 V and operates from 0 to 60 °C.
Applications
- On/off control
- Energy management
- Test automation
- Process control
| Product type: | Daughter board |
|---|---|
| Interface: | OPTO-22 compatible |
| Relay outputs: | 12 |
| Operating temperature: | 0 ~ 60 °C |
| Mounting: | DIN-rail |
Specifikationer
| Relay Output | |
|---|---|
| Channels | 12 X FORM A |
| Type | SSR |
| Contact Rating | 4 A @ 240VAC |
| Operate Time | 1/2 cycle of voltage sina wave 1ms (max) |
| Electrical Endurance | Long Life, No Arcing, No Bounce, No Switching Noise |
| Power | |
| Consumption | 400 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 223.5 mm x 135.5 mm |
| Environment | |
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% to 90 % noncondensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
