DN-68 DIN-Rail Terminal Board for PISO-ENCODER300(U)/600(U) Encoder Input
68-pin SCSI-II to screw terminal DIN-rail board for field wiring of PISO-ENCODER300(U) and PISO-ENCODER600(U) encoder input boards.
- 68-pin SCSI-II connector for direct connection to the encoder input board
- Pin-to-pin screw terminal layout for easy field wiring
- DIN-rail mounting with I/O connector block
- Compact footprint of 103 mm x 86 mm
- Operating temperature -20 ~ +75 °C; storage -30 ~ +85 °C
- Humidity rating 10 ~ 90% RH, non-condensing
889,43 kr. pr. stk.
| 1–9 stk. | 889,43 kr. | |
|---|---|---|
| 10–30 stk. | 867,01 kr. | −3 % |
| 31+ stk. | 844,58 kr. | −5 % |
Produktinformation "DN-68 DIN-Rail Terminal Board for PISO-ENCODER300(U)/600(U) Encoder Input"

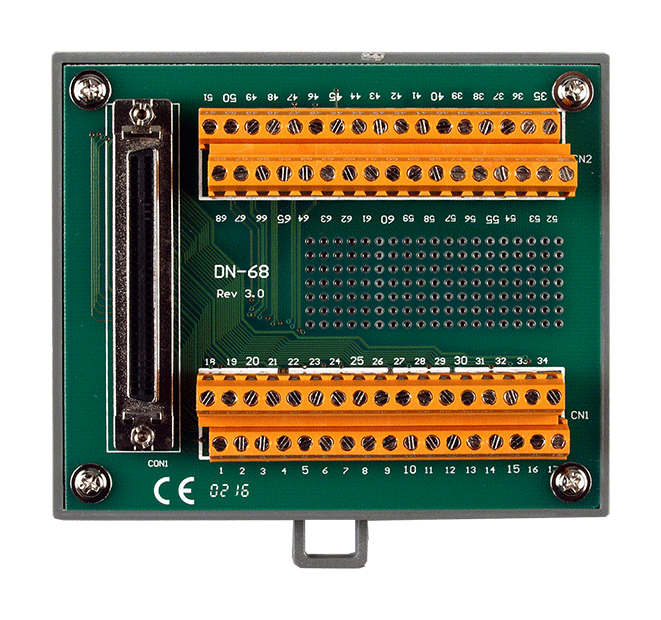

The DN-68 CR is a DIN-rail mounted terminal board that breaks out the 68-pin SCSI-II connector of the PISO-ENCODER300(U) and PISO-ENCODER600(U) encoder input boards onto pin-to-pin screw terminals. It gives engineers a practical way to land field wiring without working directly on the SCSI-II cable.
Each signal is presented on a screw terminal in a one-to-one arrangement with the connector pins, which keeps cabinet wiring straightforward to trace and maintain. The board measures 103 mm x 86 mm and is designed for standard DIN-rail installation in control panels.
The DN-68 CR is rated for an operating range of -20 ~ +75 °C and a storage range of -30 ~ +85 °C, with 10 ~ 90% RH non-condensing humidity. It carries CE, UKCA, FCC, RoHS and WEEE markings.
Applications
- Field wiring of encoder inputs on PISO-ENCODER300(U) and PISO-ENCODER600(U) boards
- Motion control panels requiring DIN-rail mounted terminal connections
| Product type: | Terminal board |
|---|---|
| Interface: | 68-pin SCSI-II |
| Operating temperature: | -20 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | 103 mm X 86 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
