DN-8237YB 2-Axis Stepper/Servo Motion Control Terminal Board for Yaskawa Sigma
Two-axis terminal board for pulse-command stepper and servo motors, with photo-coupling isolation and a power module for Yaskawa Sigma II/III/V servo amplifiers.
- Two-axis pulse command outputs for stepper or servo motors
- Photo-coupling isolation for protection of the controller
- Per-axis encoder feedback, home, near-home and limit switch inputs
- Servo-enable output per axis for Yaskawa Sigma II/III/V amplifiers
- Onboard power module accepting 20 ~ 26 VDC input
- Power LED and status LEDs for home and limit switches
1.606,95 kr. pr. stk.
| 1–9 stk. | 1.606,95 kr. | |
|---|---|---|
| 10–30 stk. | 1.554,63 kr. | −3 % |
| 31+ stk. | 1.524,74 kr. | −5 % |
Produktinformation "DN-8237YB 2-Axis Stepper/Servo Motion Control Terminal Board for Yaskawa Sigma"

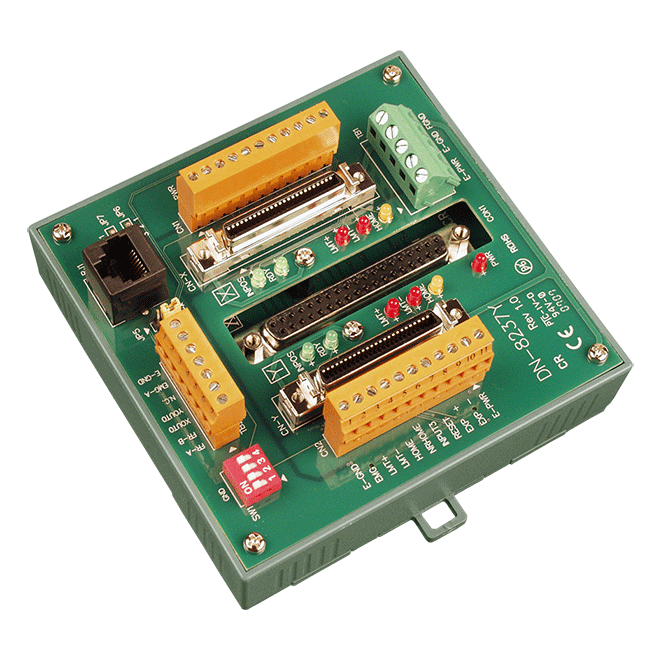

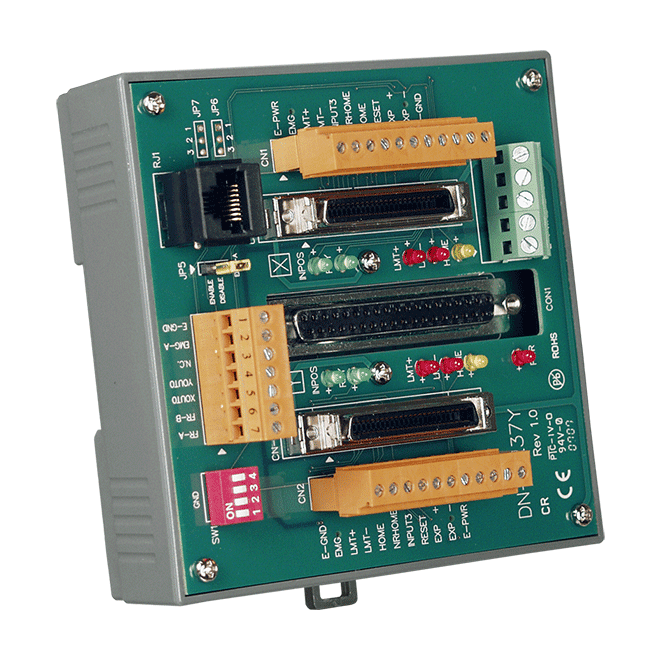

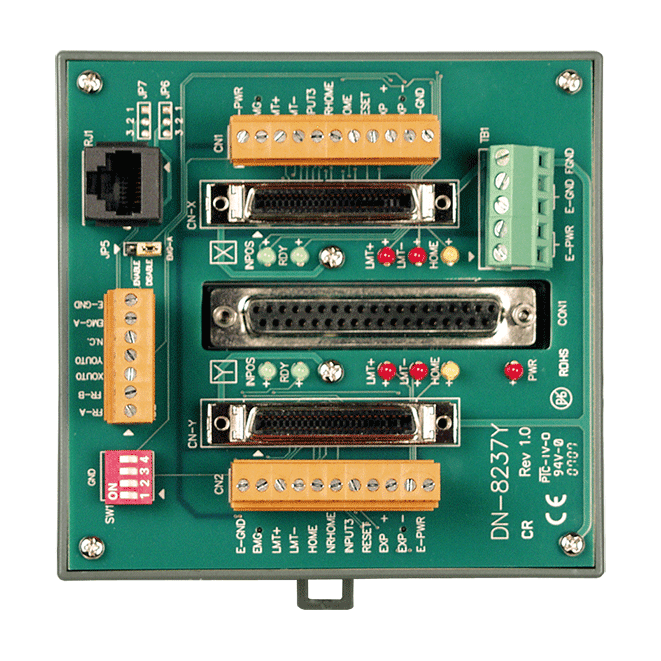

DN-8237YB is a 2-axis motion control terminal board that links ICP DAS 2-axis motion controllers, such as the I-8092F and PISO-PS200, to Yaskawa Sigma II/III/V servo amplifiers. Each axis has its own pulse output lines, encoder feedback inputs, home, near-home and limit switch inputs, and a servo-enable output, all brought out to screw terminals.
Photo-coupling isolation on the signal path helps protect the motion controller from the drive side. An onboard power module generates the voltages needed by the board from a wide 20 ~ 26 VDC supply, and the power LED and status LEDs for the home and limit switches make commissioning and fault finding straightforward.
Connectors can be swapped to reassign axis definitions without rewiring, which is useful when reconfiguring a machine. Where the controller supports FRnet, a dedicated terminal provides high-speed serial I/O expansion.
Applications
- Two-axis motion control with Yaskawa Sigma II/III/V servo amplifiers
- Pulse-command positioning of stepper or servo motors
- Wiring interface between ICP DAS 2-axis motion controllers and servo drives
| Product type: | Motion control terminal board |
|---|---|
| Interface: | Pulse command |
| Isolation: | Photo-coupling |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Specifikationer
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 110 mm X 107 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
