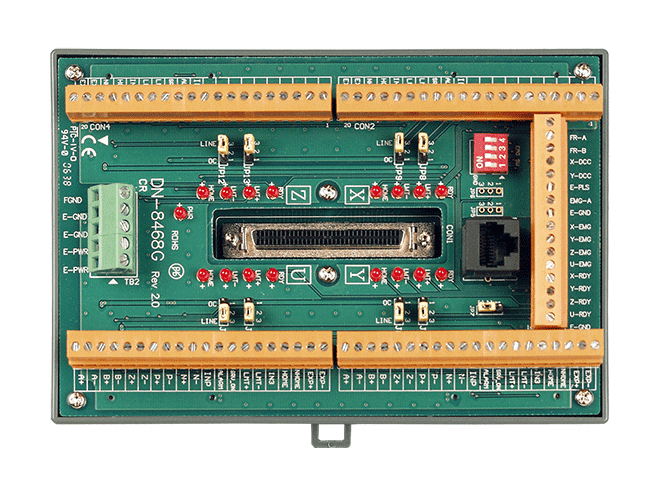

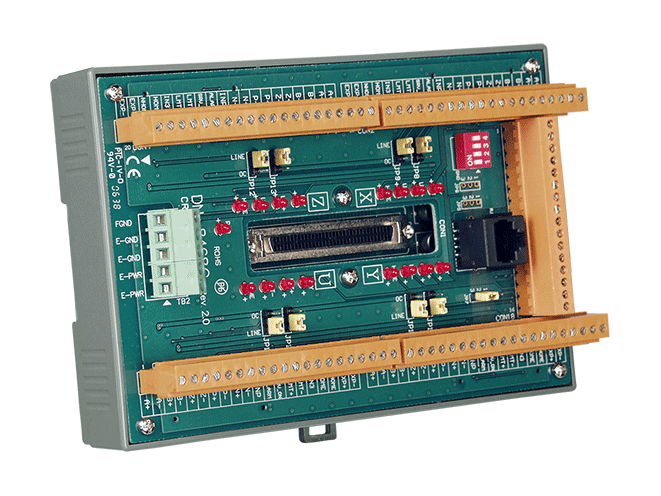

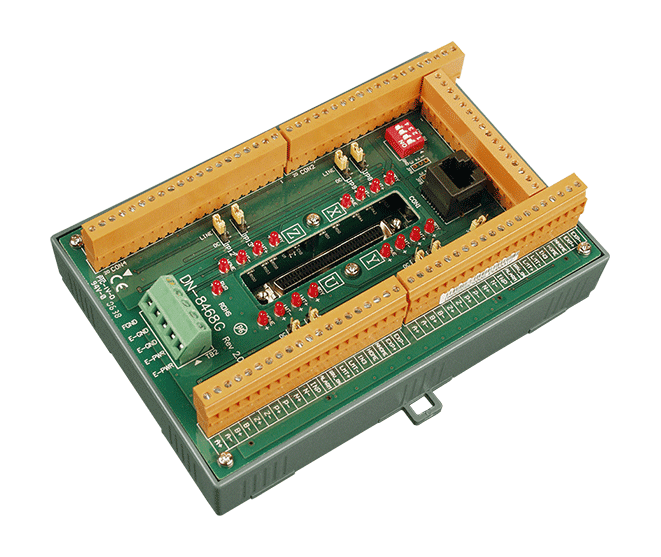

DN-8468GB 4-Axis Stepper/Servo Motion Control Terminal Board, General Purpose
Photo-coupled 4-axis terminal board for pulse-command stepper or servo drives, fitted to ICP DAS 4-axis motion controllers with screw terminals, encoder feedback and status LEDs.
- Four-axis pulse command interface for stepper or servo motor drives
- High-speed photo-coupling isolation on the signal lines
- Plug-in terminal connectors that can be interchanged to reassign axes
- Encoder feedback, home, near-home and limit-switch inputs per axis
- Onboard power module accepting 20 ~ 26 VDC input
- Power LED and status LEDs for home and limit switches
1.831,18 kr. pr. stk.
| 1–9 stk. | 1.831,18 kr. | |
|---|---|---|
| 10–30 stk. | 1.778,86 kr. | −3 % |
| 31+ stk. | 1.741,49 kr. | −5 % |
Produktinformation "DN-8468GB 4-Axis Stepper/Servo Motion Control Terminal Board, General Purpose"
The DN-8468GB CR is a general purpose daughter board that connects four stepper or servo axes to ICP DAS 4-axis motion controllers. It converts the controller's signals into screw-terminal wiring, with high-speed photo-coupling isolation to help protect the controller from the drive side.
Each of the four axes has its own group of terminals carrying the pulse command lines, encoder feedback, home, near-home and limit-switch inputs, and a servo-enable output. Connectors can be swapped between axes to change the axis assignment without rewiring. An onboard power module accepts 20 ~ 26 VDC and supplies the board's internal circuits.
Status LEDs show power and the home and limit switch states. Where the controller supports FRnet, the board also provides an FRnet terminal for high-speed serial I/O expansion. Suitable for engineers building general purpose motion systems who need a clean, isolated interface between a 4-axis controller and their drives.
Applications
- Four-axis stepper motor motion control
- Four-axis servo motion control with pulse command drives
- Motion systems using general purpose motor drivers
- Controller I/O expansion via FRnet where supported
| Product type: | Motion control daughter board |
|---|---|
| Interface: | FRnet, Screw terminal |
| Isolation: | Photo-coupling |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Specifikationer
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 162 mm X 107 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
