DNM-831I-600V-1000A Voltage Attenuator & Current Transformer, 600 V / 1000 A
Metal DIN-rail signal conditioner that attenuates ±600 VDC and ±1000 A inputs to ±10 V for analog input modules, with 3000 VDC isolation.
- Measures ±600 VDC voltage and ±1000 A current on one module
- Linear attenuation to ±10 V outputs for analog input modules
- 3000 VDC intra-module and channel-to-channel isolation
- High input impedance and easy wire connection
- Clip-type current transformer with Φ40.5 mm inside diameter and 1.5 m leading cable
- Metal casing, DIN-rail mounting, operating range -25 ~ +75 °C
1.831,18 kr. pr. stk.
| 1–9 stk. | 1.831,18 kr. | |
|---|---|---|
| 10–30 stk. | 1.778,86 kr. | −3 % |
| 31+ stk. | 1.741,49 kr. | −5 % |
Produktinformation "DNM-831I-600V-1000A Voltage Attenuator & Current Transformer, 600 V / 1000 A"

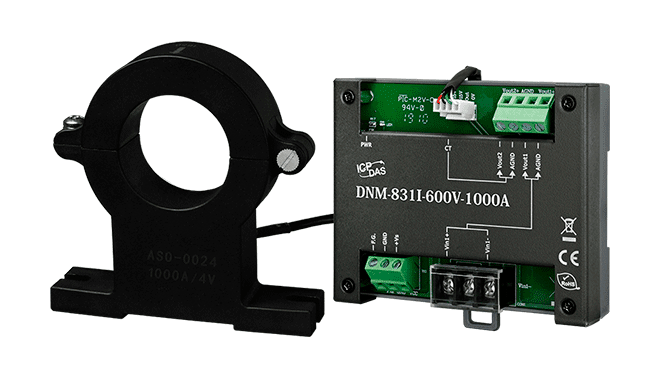

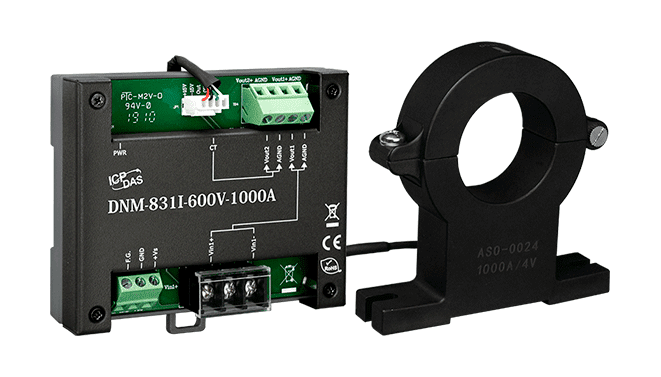

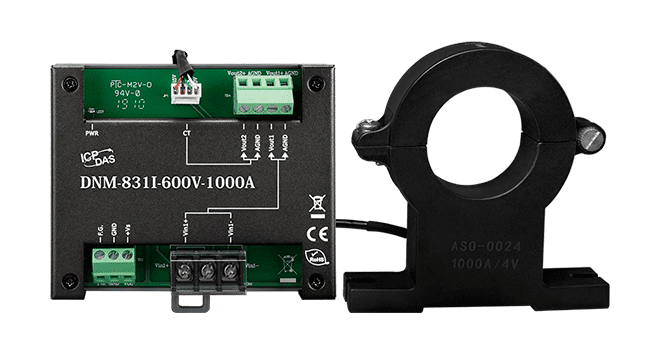

DNM-831I-600V-1000A combines one voltage attenuator channel and one current transformer channel in a single metal DIN-rail module. Inputs of up to ±600 VDC and ±1000 A are scaled down to ±10 V outputs, so high-voltage and high-current signals can be read by standard analog input hardware.
The module provides 3000 VDC isolation between the internal sections and between channels, which keeps noise from passing between inputs and outputs. It is designed to work with analog input modules such as the I-7017, I-87017, M-7017RMS and I-87017W-RMS for high-current measurement.
The ordering code includes the CA-040415-1 cable and the ASO-0024 current transformer, so the clip-type CT with its 1.5 m leading cable is supplied ready to connect.
Applications
- High-current measurement with analog input modules
- High-voltage signal monitoring in industrial control panels
- Measurement of AC and DC voltage and current signals
| Product type: | Signal conditioning module |
|---|---|
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV contact for power line, input and output channels, ±8 kV air for random point |
| Surge (IEC 61000-4-5) | ±3 kV for power liner |
| CT | |
| Type | Clip |
| Inside Diameter | Φ40.5 mm |
| Leading Cable | 1.5 m |
| Analog Input | |
| Channels | High Current: 1 High Voltage: 1 |
| Type | AC/DC Current AC/DC Voltage |
| Range | High Current: ±1000 A High Voltage: ±600 VDC |
| Accuracy | High Current: 1% of FSR High Voltage: 1% of FSR |
| Bandwidth | High Current: 0 ~ 50 KHz High Voltage: 20 Hz ~ 20 kHz |
| Isolation | High Current: 2.5 KV @ 50 (60) HZ/1 min |
| Analog Output | |
| Channels | High Current: 1 High Voltage: 1 |
| Type | AC/DC Current AC/DC Voltage |
| Range | • High Current: ±10 VDC or 10 VAC • High Voltage: ±10 VDC or 10 VAC |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.8 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 103 x 97 x 29 (W x L x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
