DNM-831I-600V-200A Voltage Attenuator & Current Transformer, ±600 V / ±200 A
Attenuates ±600 V voltage and ±200 A current inputs to ±10 V outputs for analog input modules, with 3000 VDC isolation. Includes a clip-on current transformer and cable.
- Measures high voltage up to ±600 V and high current up to ±200 A on one kit
- Attenuates both inputs to ±10 V outputs compatible with analog input modules
- 3000 VDC isolation between modules and between channels
- Linear attenuation ratio with high input impedance
- Clip-type current transformer with Φ21 mm aperture and 1.5 m leading cable
- Simple wire connection in a metal DIN-rail housing
1.606,95 kr. pr. stk.
| 1–9 stk. | 1.606,95 kr. | |
|---|---|---|
| 10–30 stk. | 1.554,63 kr. | −3 % |
| 31+ stk. | 1.524,74 kr. | −5 % |
Produktinformation "DNM-831I-600V-200A Voltage Attenuator & Current Transformer, ±600 V / ±200 A"

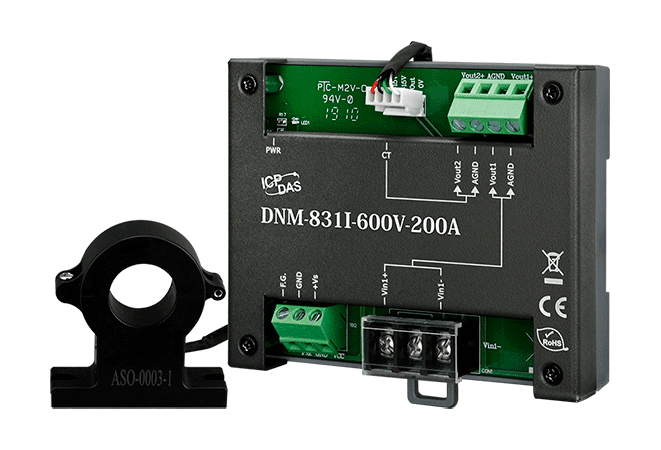

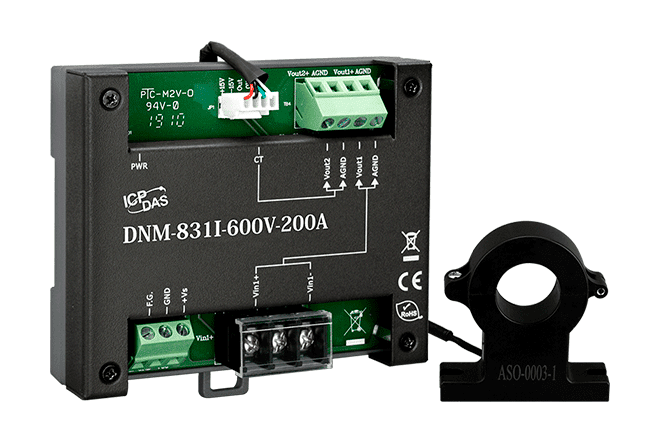

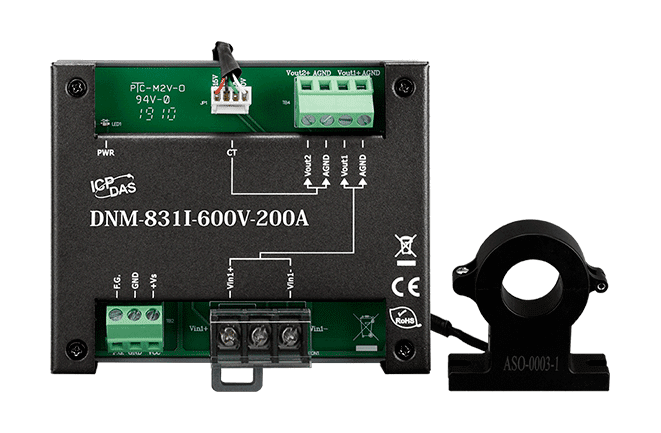

The DNM-831I-600V-200A is a signal conditioning kit that brings one high voltage channel and one high current channel down to ±10 V levels, so they can be read by standard analog input modules. The voltage input accepts up to ±600 V, and the current input uses a clip-on current transformer rated for ±200 A.
Each channel is isolated from its output and from the other channel, with 3000 VDC isolation between modules and between channels. This helps avoid noise interference from inputs to outputs. The linear attenuation ratio and high input impedance keep the scaled output straightforward to interpret.
The kit is supplied with the CA-040415-1 cable and the ASO-0003-1 current transformer. It mounts on a DIN rail in a metal housing and is rated for -25 ~ +75 °C operation. Pair it with modules such as the I-7017, I-87017, M-7017RMS or I-87017W-RMS to measure high current.
Applications
- High current measurement with analog input modules
- High voltage monitoring of AC and DC signals
- Industrial power monitoring and data acquisition
- Signal isolation in noisy electrical environments
| Product type: | Voltage attenuator and current transformer |
|---|---|
| Analog inputs: | 1 high voltage, 1 high current |
| Analog outputs: | ±10 V |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV contact for power line, input and output channels, ±8 kV air for random point |
| Surge (IEC 61000-4-5) | ±3 kV for power liner |
| CT | |
| Type | Clip |
| Inside Diameter | Φ21 mm |
| Leading Cable | 1.5 m |
| Analog Input | |
| Channels | High Current: 1 High Voltage: 1 |
| Type | AC/DC Current AC/DC Voltage |
| Range | High Current: ±200 A High Voltage: ±600 VDC |
| Accuracy | High Current: 1% of FSR High Voltage: 1% of FSR |
| Bandwidth | High Current: 0 ~ 50 KHz High Voltage: 20 Hz ~ 20 kHz |
| Isolation | High Current: 2.5 KV @ 50 (60) HZ/1 min |
| Analog Output | |
| Channels | High Current: 1 High Voltage: 1 |
| Type | AC/DC Current AC/DC Voltage |
| Range | • High Current: ±10 VDC or 10 VAC • High Voltage: ±10 VDC or 10 VAC |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.8 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 103 x 97 x 29 (W x L x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
