DNM-831I-600V-50A Voltage Attenuator and Current Transformer, 600 V / 50 A

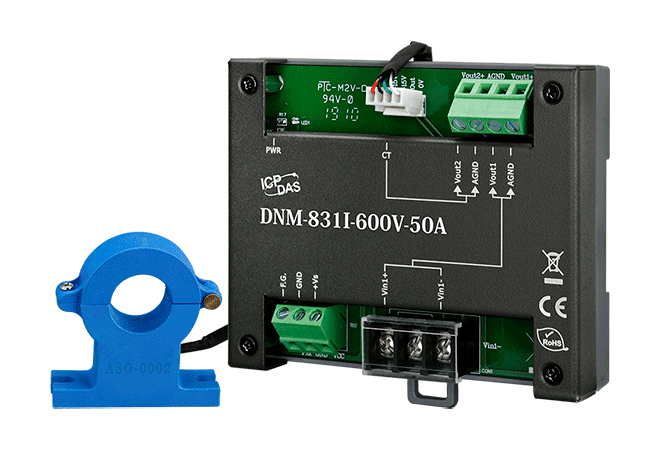

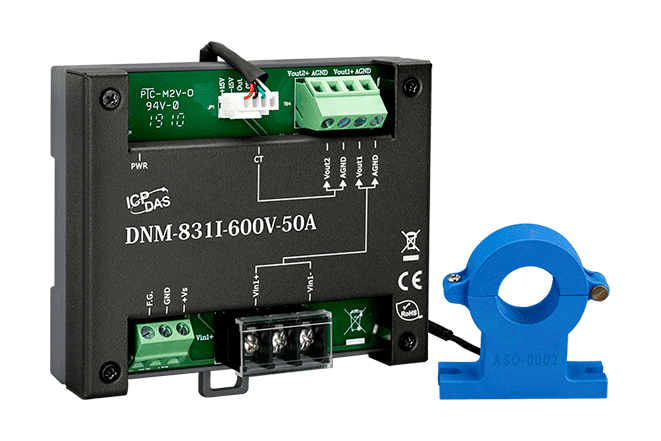

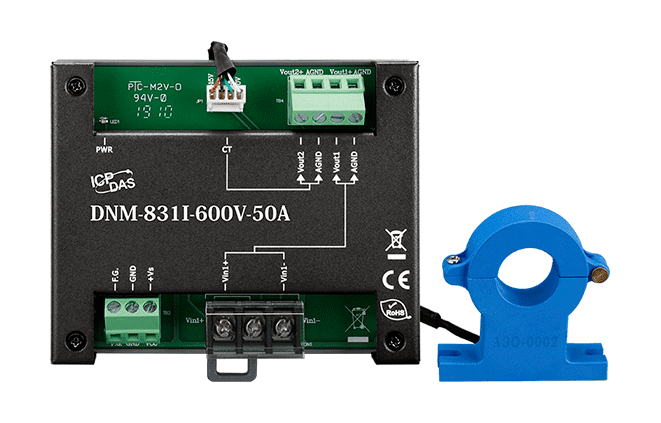

Metal DIN-rail voltage attenuator and clip-type current transformer that scales ±600 V and ±50 A inputs to ±10 V outputs, with 3000 VDC isolation.
- Measures high voltage (±600 V) and high current (±50 A) inputs
- Scales both inputs to ±10 V analog outputs
- 3000 VDC intra-module and channel-to-channel isolation
- Linear attenuation ratio with high input impedance
- Clip-type current transformer, Φ21 mm inside diameter, 1.5 m leading cable
- Includes CA-040415 cable and ASO-0002 current transformer
1.539,69 kr. pr. stk.
| 1–9 stk. | 1.539,69 kr. | |
|---|---|---|
| 10–30 stk. | 1.494,84 kr. | −3 % |
| 31+ stk. | 1.464,94 kr. | −5 % |
Produktinformation "DNM-831I-600V-50A Voltage Attenuator and Current Transformer, 600 V / 50 A"
DNM-831I-600V-50A combines one voltage attenuator channel and one current transformer channel in a metal DIN-rail housing. Inputs of up to ±600 V and ±50 A are scaled to ±10 V outputs, so compatible analog input modules can read high voltage and high current signals.
Isolation of 3000 VDC between modules and between channels keeps noise from passing from inputs to outputs or from one channel to another. The attenuation ratio is linear, the input impedance is high, and the wiring is straightforward.
This ordering code includes the CA-040415 cable and the ASO-0002 current transformer. It is powered from +10 VDC to +30 VDC and rated for an operating temperature of -25 ~ +75 °C.
Applications
- Measuring high voltage signals with analog input modules
- Measuring high current signals with analog input modules
- Use with I-7017, I-87017, M-7017RMS and I-87017W-RMS analog input modules
| Product type: | Voltage attenuator and current transformer |
|---|---|
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV contact for power line, input and output channels, ±8 kV air for random point |
| Surge (IEC 61000-4-5) | ±3 kV for power liner |
| CT | |
| Type | Clip |
| Inside Diameter | Φ21 mm |
| Leading Cable | 1.5 m |
| Analog Input | |
| Channels | High Current: 1 High Voltage: 1 |
| Type | AC/DC Current AC/DC Voltage |
| Range | High Current: ±50 A High Voltage: ±600 VDC |
| Accuracy | High Current: 1% of FSR High Voltage: 1% of FSR |
| Bandwidth | High Current: 0 ~ 50 KHz High Voltage: 20 Hz ~ 20 kHz |
| Isolation | High Current: 2.5 KV @ 50 (60) HZ/1 min |
| Analog Output | |
| Channels | High Current: 1 High Voltage: 1 |
| Type | AC/DC Current AC/DC Voltage |
| Range | • High Current: ±10 VDC or 10 VAC • High Voltage: ±10 VDC or 10 VAC |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.8 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 103 x 97 x 29 (W x L x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
