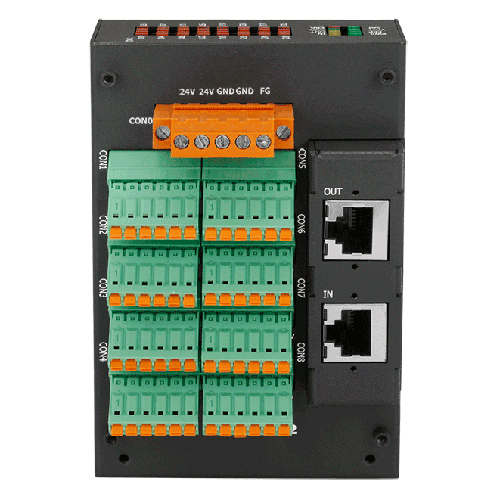

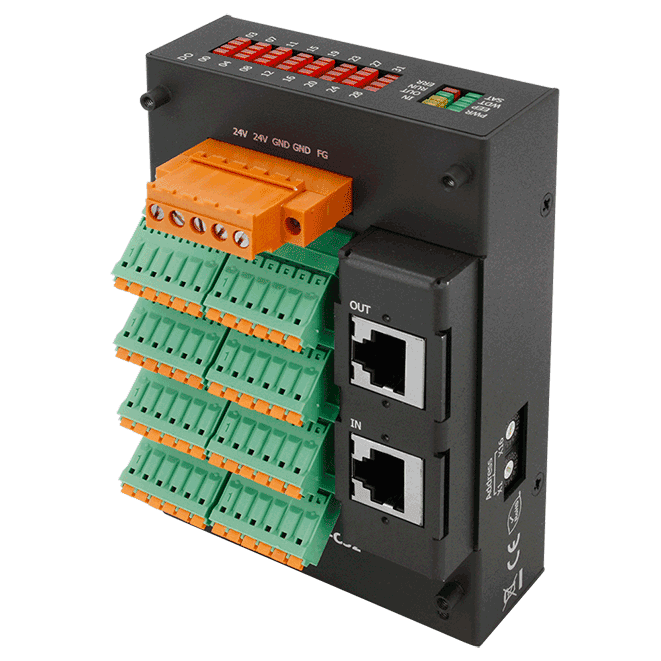

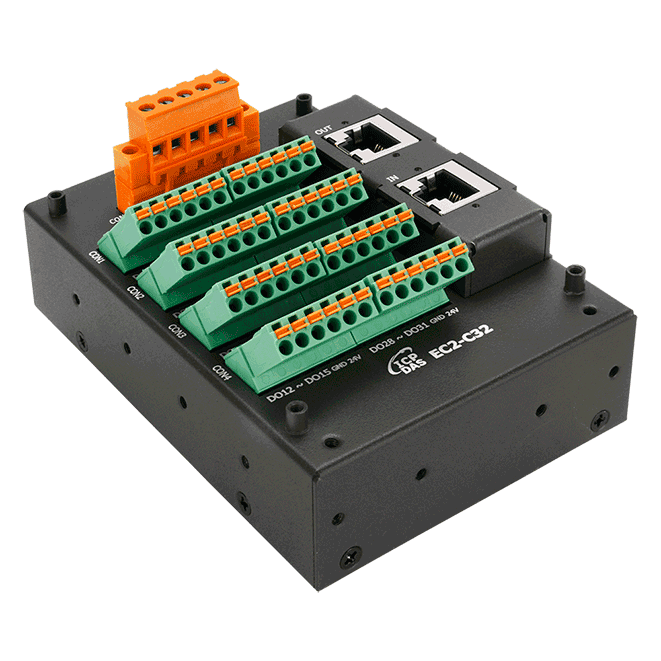

EC2-C32 EtherCAT Slave I/O Module, 32-ch Isolated Digital Output
EtherCAT slave module with 32 isolated open-collector digital outputs, daisy-chain wiring over two RJ-45 ports and a 100 us cycle time.
- 32 isolated open-collector (sink) digital outputs with internal flywheel diode and 3000 VDC isolation
- EtherCAT slave with two RJ-45 ports supporting daisy-chain connection
- Maximum distance between stations of 100 m (100BASE-TX)
- 100 us cycle time with distributed clocks
- Configurable power-on output values and outputs retained after state machine change

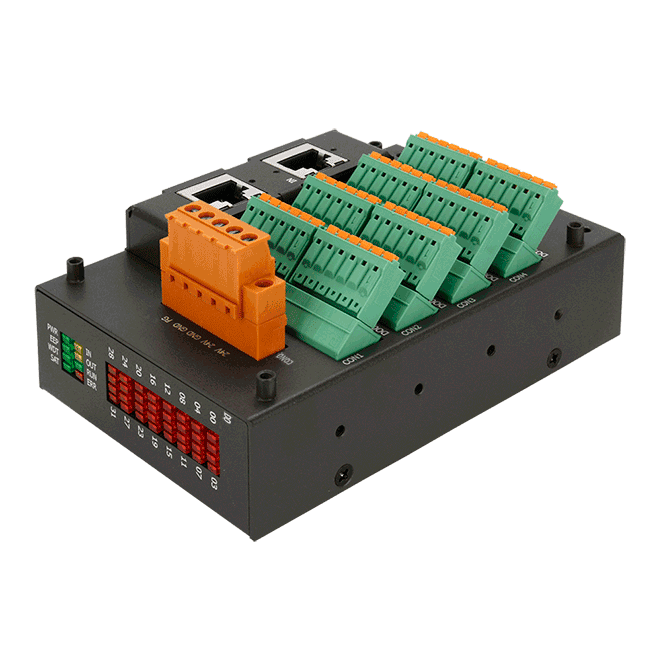

- LED indicators for I/O status and removable terminal block connector
1.793,81 kr. pr. stk.
| 1–9 stk. | 1.793,81 kr. | |
|---|---|---|
| 10–30 stk. | 1.741,49 kr. | −3 % |
| 31+ stk. | 1.704,12 kr. | −5 % |
Produktinformation "EC2-C32 EtherCAT Slave I/O Module, 32-ch Isolated Digital Output"
The EC2-C32 is an EtherCAT slave I/O module that adds 32 isolated digital outputs to an EtherCAT network. Each output is an open-collector sink type with an internal flywheel diode, rated at 40 VDC maximum load voltage and 3000 VDC isolation, so it suits engineers who need a dense, distributed output block on a single fieldbus node.
Two RJ-45 bus ports allow the modules to be daisy-chained, reducing the amount of cabling compared with star-wired layouts. Stations can be up to 100 m apart over 100BASE-TX, and the module supports distributed clocks with a 100 us cycle time. Output states can be seen on the LED indicators as well as in the process data.

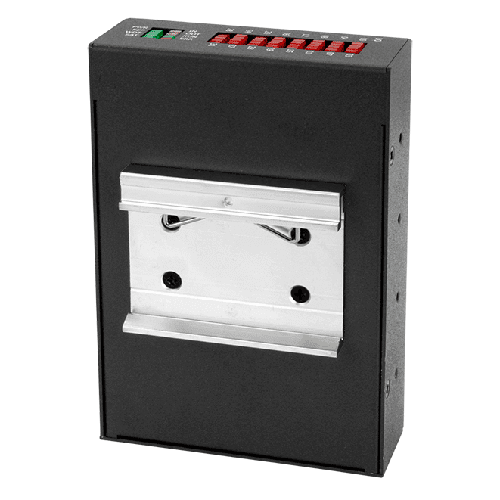

Output behaviour is set for the application: power-on values are configurable, and outputs keep their values after a state machine change. The module is built in a metal casing rated IP40 and mounts on a DIN rail or a wall.
Applications
- Distributed digital output control on EtherCAT networks
- Industrial automation I/O expansion
| Product type: | EtherCAT Slave I/O Module |
|---|---|
| Interface: | EtherCAT |
| Protocol: | EtherCAT |
| Digital outputs: | 32 |
| Ports: | 2 x RJ-45 |
| Isolation: | 3000 VDC |
| Power input: | +24 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal, IP40 |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Digital Output | |
| Channels | 32 |
| Type | Open Collector (Sink),with internal flywheel diode |
| Load Voltage | 40 VDC Max. |
| Load Current | 150 mA/Channe (Sink) @ 25℃ 100 mAChannel (Sink) @ 60℃ |
| Isolation | 3000 VDC |
| EtherCAT | |
| Ports | EtherCAT, 2 X RJ45 |
| Node ID | Up to 256 |
| Distance Between Stations | Max. 100m (100Base-Tx) |
| Data Transfer Medium | Ethernet/EtherCAT cable(min. CAT5), shielded |
| Cycle Time | 100 us |
| Distributed Clocks | Yes |
| Power | |
| Input Range | +24 VDC |
| Consumption | 3 W |
| Mechanical | |
| Casing | Metal with IP40 |
| Dimensions (mm) | 83 x 122 x 65 (W x L x D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
