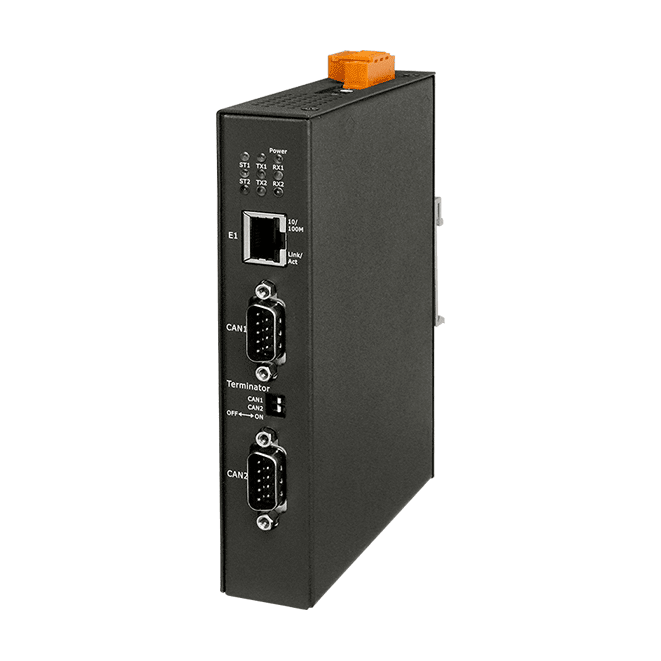

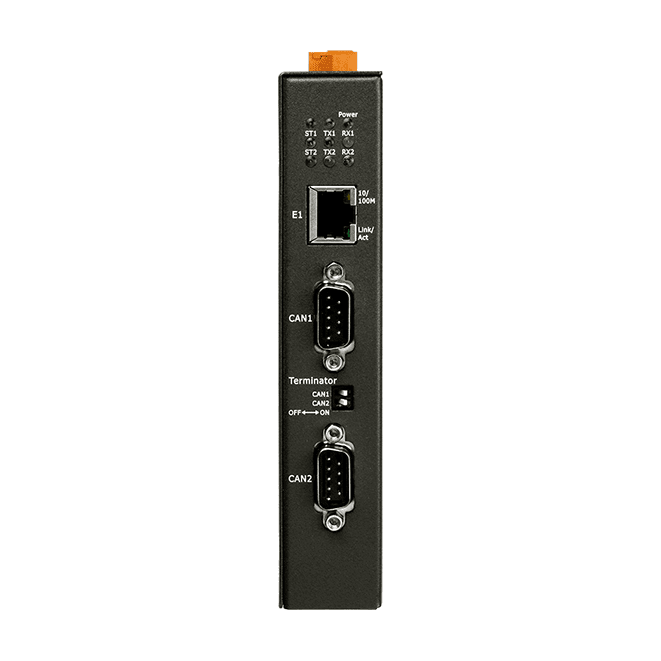

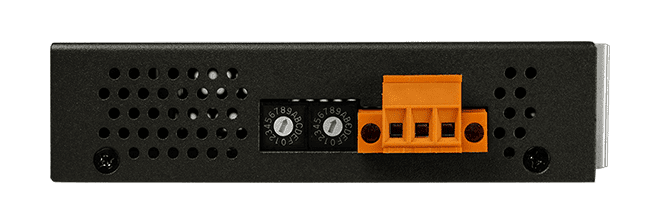

ECAN-240-FD Modbus TCP to 2-Port CAN FD Gateway
Modbus TCP to 2-port CAN FD gateway with two CAN bus interfaces, CAN 2.0 A/B and FD support, and DIN-rail installation for connecting CAN networks to Ethernet.
- Two CAN bus interfaces, each on a 9-pin D-sub connector
- CAN 2.0 A/B and CAN FD support, compatible with ISO 11898-2
- CAN FD switchable between ISO and non-ISO (Bosch) standards
- CAN FD data field bit rates from 100 kbps to 10000 kbps; CAN bit rates from 10 kbps to 1000 kbps
- Built-in DIP switch for the 120 Ω terminal resistor
- Modbus TCP over 10/100 Base-TX Ethernet via one RJ-45 port
3.071,90 kr. pr. stk.
| 1–9 stk. | 3.071,90 kr. | |
|---|---|---|
| 10–30 stk. | 2.974,73 kr. | −3 % |
| 31+ stk. | 2.914,94 kr. | −5 % |
Produktinformation "ECAN-240-FD Modbus TCP to 2-Port CAN FD Gateway"
The ECAN-240-FD bridges CAN and CAN FD networks to Ethernet using the Modbus TCP industrial protocol. It gives an Ethernet-based controller or SCADA system access to two CAN bus networks through a single RJ-45 port, so CAN devices can be integrated into a wider industrial network without custom gateway software.
The module provides two CAN bus interfaces, each on a 9-pin D-sub connector, and supports CAN 2.0 A/B and CAN FD in line with ISO 11898-2. CAN FD can be switched between the ISO and non-ISO (Bosch) standards, and a built-in DIP switch enables or disables the 120 Ω terminal resistor on each bus.
Beyond Modbus TCP server operation, the gateway can also run in TCP/UDP transparent mode for CAN and CAN FD frames, or in CAN pair mode, which links two CAN networks across Ethernet over UDP. The ordering code ECAN-240-FD CR is the RoHS-listed version of this model.
Applications
- Modbus TCP access to CAN and CAN FD devices
- TCP/UDP transparent communication between CAN devices and Ethernet clients
- CAN pair connection linking two CAN networks over Ethernet via UDP
| Product type: | CAN gateway |
|---|---|
| Interface: | 10/100 Base-TX, CAN FD |
| Protocol: | Modbus TCP |
| Ports: | 2 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x Power, 3 x CAN1 status, 3 x CAN2 status |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| Protocol | Modbus TCP, HTTP, BOOTP, TFTP |
| CAN | |
| Ports | 2 |
| Specification | ISO 11898-2, CAN 2.0 A/B and FD |
| Baud Rate | CAN bit rates: 10 k ~ 1 M bps, CAN FD bit rates for data field: 100 k ~ 10M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | DIP switch for the 120 Ω terminal resistor |
| Filter | Yes |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.2 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 122.0 x 160.0 x 28.0 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
