ECAT-2016N EtherCAT SubDevice I/O Module, 1-ch 16-bit Strain Gauge Input
EtherCAT SubDevice with one 16-bit input channel for full-bridge strain gauge and load cell signals, sampling at 1k Hz per channel and suited to daisy-chain wiring.
- Single 16-bit strain gauge input for full-bridge load cells, with software selectable ranges from ±10 mV to ±1.25 V
- 1k Hz sampling per channel with a 1 ms cycle time
- Two RJ-45 EtherCAT ports supporting daisy chain and star, line or ring topologies, up to 100 m between stations
- Powerful MCU handles efficient network traffic with on-the-fly processing
- Conformance-tested EtherCAT SubDevice
- Isolated input and output design with ±4 kV contact ESD and ±1 kV EFT and surge protection
2.137,62 kr. pr. stk.
| 1–9 stk. | 2.137,62 kr. | |
|---|---|---|
| 10–30 stk. | 2.077,83 kr. | −3 % |
| 31+ stk. | 2.032,98 kr. | −5 % |
Produktinformation "ECAT-2016N EtherCAT SubDevice I/O Module, 1-ch 16-bit Strain Gauge Input"
ECAT-2016N is an EtherCAT SubDevice that brings a single strain gauge channel onto an EtherCAT network. It connects directly to a resistor bridge, so load cells and similar full-bridge sensors can be read without a separate signal conditioner. The input range is software selectable from ±10 mV up to ±1.25 V, and each reading is available to the EtherCAT Main Device through process data.
Two RJ-45 ports allow the module to be daisy-chained, which simplifies wiring and reduces the infrastructure needed. The network can be built in star, line or ring topologies, with up to 100 m between stations over 100BASE-TX. The module has a 1 ms cycle time and an isolated input and output design, with EMS protection rated to IEC 61000-4-2, -4-4 and -4-5.

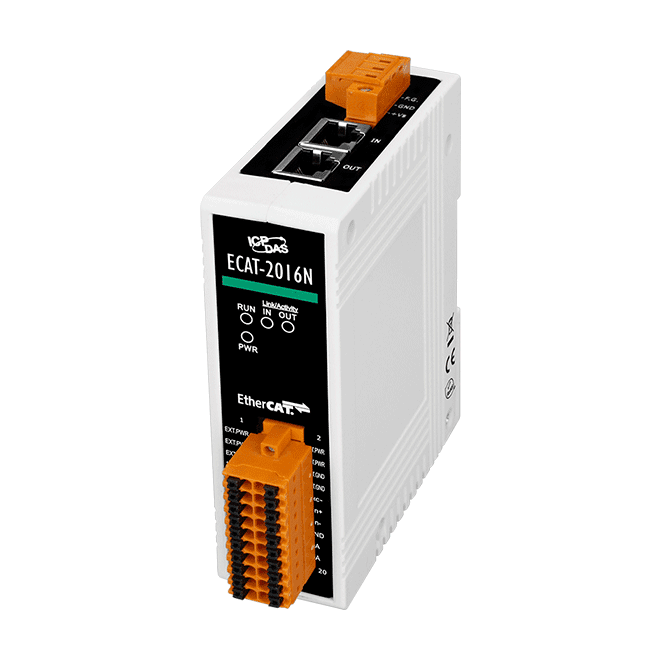

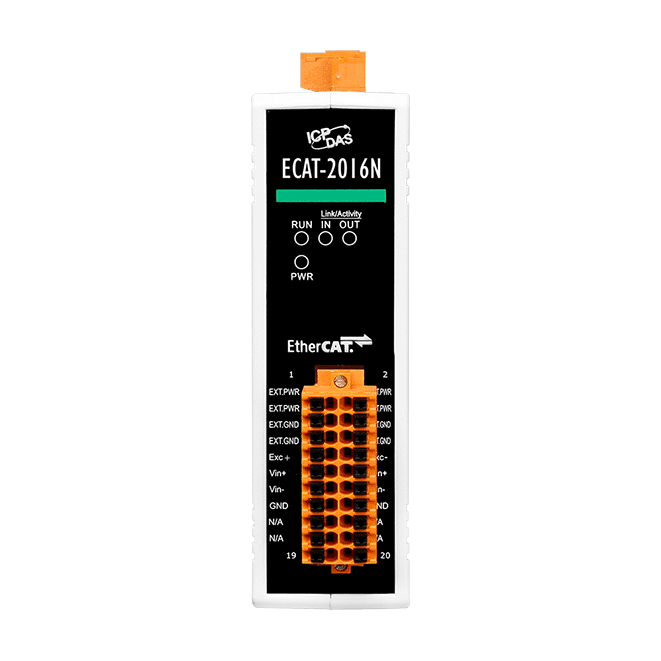

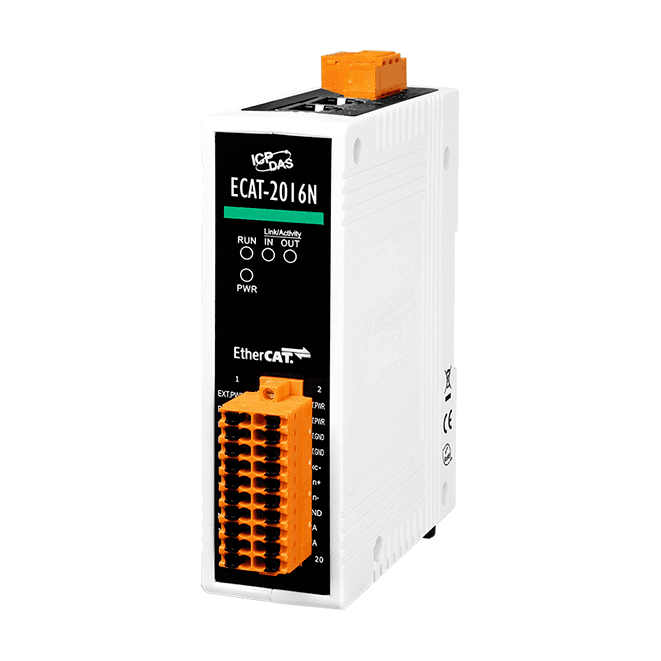

The module has a removable terminal block, LED indicators and a plastic DIN-rail housing. It operates from +10 VDC to +30 VDC and across -25 ~ +75 °C. Note that range and filter settings are not supported per channel, and open wire detection is not provided.
Applications
- Semiconductor tools
- Metal forming
- Packaging
- Injection molding
- Assembly systems
- Printing machines
- Robotics
| Product type: | Strain gauge input module |
|---|---|
| Interface: | EtherCAT |
| Protocol: | EtherCAT |
| Analog inputs: | 1 |
| Ports: | 2 x RJ-45 |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: ±1 kV Class A; Power: ±1 kV Class A |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Channel |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Strain Gauge, Load Cell Input | |
| Channels | 1 |
| Type | Strain Gauge |
| Range | ±1.25 V, ±600 mV, ±300 mV, ±125 mV, ±80 mV, ±60 mV, ±40 mV, ±30 mV, ±20 mV, ±15 mV, ±10 mV (Software selectable) |
| Wiring | Full-Bridge |
| Accuracy | ±0.1% of FSR |
| Resolution | 16-bit |
| Sampling Rate | 1k Hz per channel |
| Individual Channel Configuration | Yes (Range & Filter setting function is not supported) |
| Open Wire Detection | No |
| Overvoltage Protection | ±35 VDC |
| Excitation Voltage Output | |
| Channels | 1 |
| Range | + 10 V |
| EtherCAT | |
| Ports | 2 x RJ-45 |
| Distance Between Stations | 100 m Max. (100Base-TX) |
| Data Transfer Medium | Ethernet/EtherCAT cable (Min. CAT5), shielded |
| Cycle Time | 1 ms |
| Distributed Clocks | N/A |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 4 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 108 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
