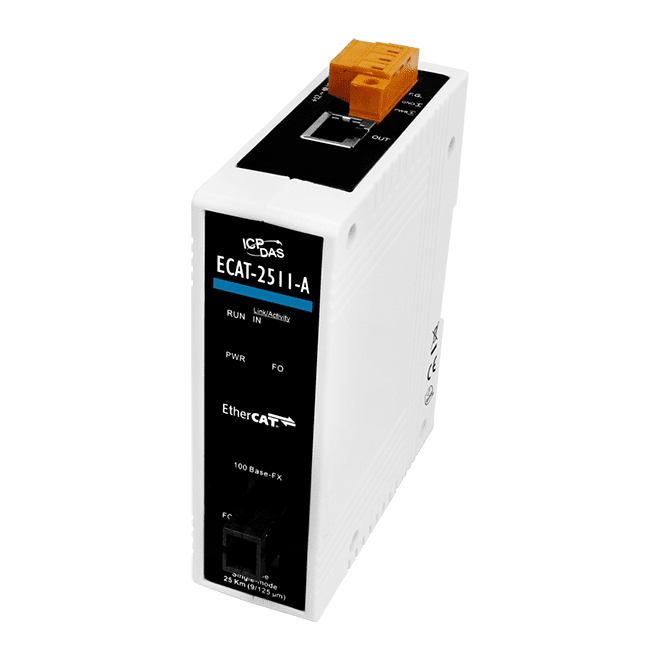

ECAT-2511-A EtherCAT Single-Strand Fibre Media Converter, 1310/1550 nm SC
Single-mode, single-strand EtherCAT to fibre converter with TX 1310 nm and RX 1550 nm over SC, reaching up to 25 km. Sold to work as a pair with ECAT-2511-B.
- Single-mode SC fibre link with TX 1310 nm and RX 1550 nm, up to 25 km
- Works as a pair with ECAT-2511-B; both units are required
- Reshapes EtherCAT signals and isolates bus errors caused by wire shorts or disturbances
- Powerful MCU handles network traffic efficiently
- EtherCAT conformance test tool verified
- 4 KV contact ESD protection on each port
2.174,99 kr. pr. stk.
| 1–9 stk. | 2.174,99 kr. | |
|---|---|---|
| 10–30 stk. | 2.115,20 kr. | −3 % |
| 31+ stk. | 2.070,35 kr. | −5 % |
Produktinformation "ECAT-2511-A EtherCAT Single-Strand Fibre Media Converter, 1310/1550 nm SC"
ECAT-2511-A is the EtherCAT side of a single-strand fibre link. It converts the EtherCAT signal to light on a single-mode SC fibre, reshapes the signal to correct distortion, and isolates bus faults caused by a wire short or disturbance so that they do not spread along the network. Its fibre transmission also helps keep EtherCAT traffic clear of EMS and RFI noise.
The unit must be used with ECAT-2511-B, as the two work together as a pair. Because one strand carries traffic in each direction, a matched pair can make better use of existing fibre, which reduces the cost of new fibre installations compared with running dedicated cable for each direction.
The 1 x RJ-45 EtherCAT port and single-mode SC port support a station distance of up to 25 km over 100BASE-FX. The unit has reverse polarity protection, a +12 VDC to +48 VDC input range and a DIN-rail mounting option.
Applications
- Extending EtherCAT segments between stations over single-mode fibre
- Single-strand fibre links where only one fibre is available
- Installations exposed to EMS and RFI noise
| Product type: | Media converter |
|---|---|
| Interface: | RJ-45, SC |
| Protocol: | EtherCAT |
| Ports: | 1 x RJ-45, 1 x SC |
| Power input: | +12 VDC ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Fiber | |
|---|---|
| Ports | Single-Mode; SC connector x 1 |
| Wavelength | TX: 1310, RX: 1550 nm |
| Transmission Distance | 25 km (9/125 μm recommended) |
| EtherCAT | |
| Ports | 1 x RJ-45 |
| No. of Nodes | 1 |
| Distance Between Stations | Max. 100 m (100Base-TX) |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 0.1 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 100 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
