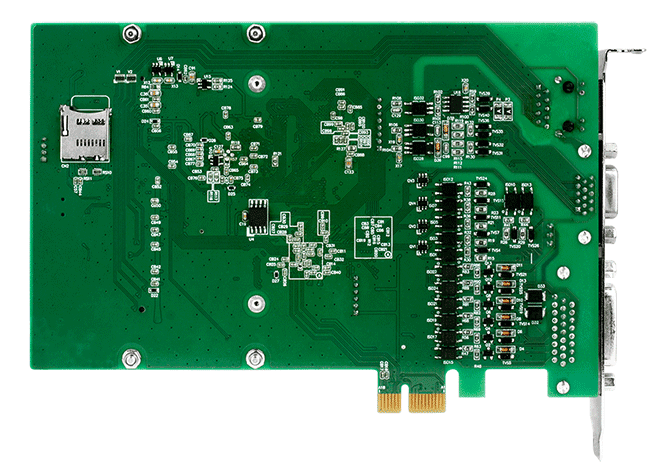

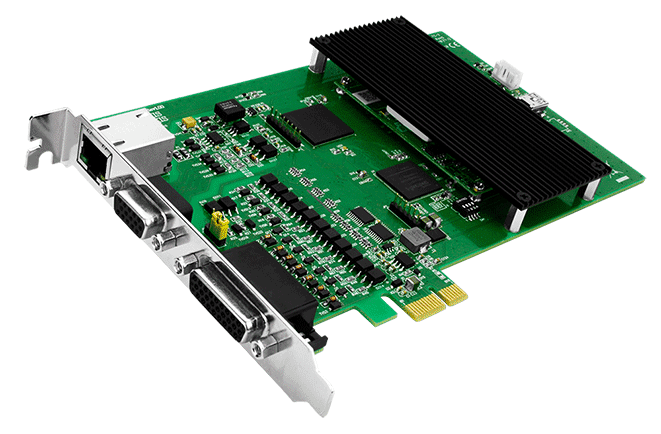

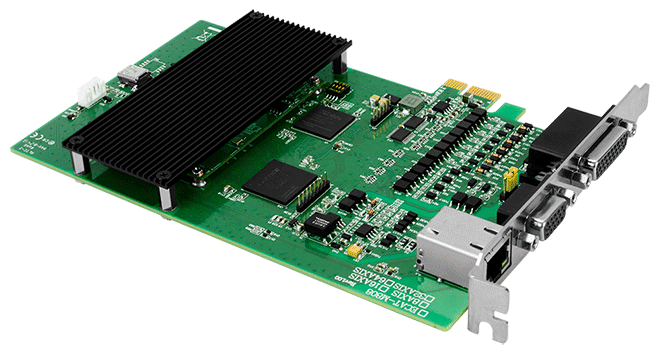

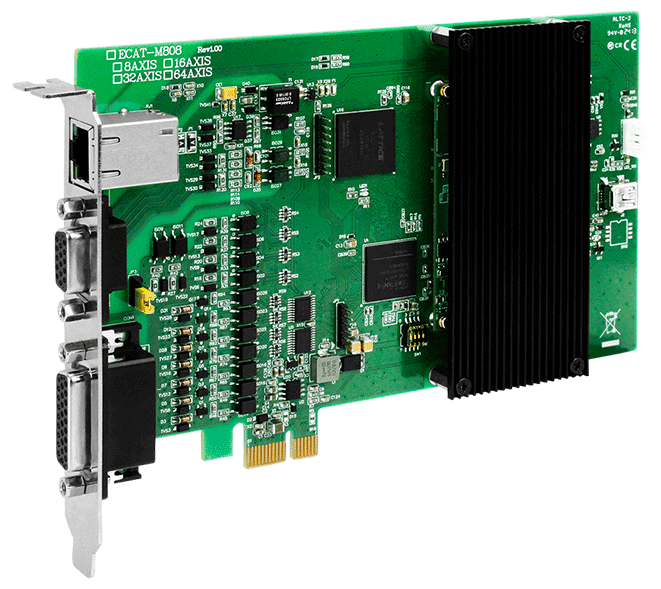

ECAT-M808-32AX PCI Express EtherCAT MainDevice Board, 32-Axis
32-axis PCI Express EtherCAT MainDevice board with 13 DI, 13 DO and 2-axis encoder inputs, for PC-based multi-axis motion and I/O control. Supports up to 512 slaves.
- Up to 32-axis motion control on one PCI Express x1 board
- EtherCAT cycle time up to 0.5 ms
- Supports up to 512 slaves
- Synchronised motion (E-GEAR, E-CAM), virtual axes and multi-axis linear interpolation
- 13 DI and 13 DO on board, plus 2 encoder interfaces with compare trigger output
- Second CPU with EtherCAT communication retention during OS or program crash
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "ECAT-M808-32AX PCI Express EtherCAT MainDevice Board, 32-Axis"
The ECAT-M808-32AX CR is a PCI Express EtherCAT MainDevice board for engineers building multi-axis motion systems in a PC. It handles up to 32 axes of motion control with an on-board CPU, so much of the real-time work is taken off the host PC and its processor load is reduced accordingly.
The board combines motion control with local I/O: 13 digital inputs, 13 open-collector digital outputs and 2 encoder interfaces with compare trigger output. Synchronised motion (E-GEAR, E-CAM), virtual axes and multi-axis linear interpolation are available, with an EtherCAT cycle time of up to 0.5 ms and support for up to 512 slaves.

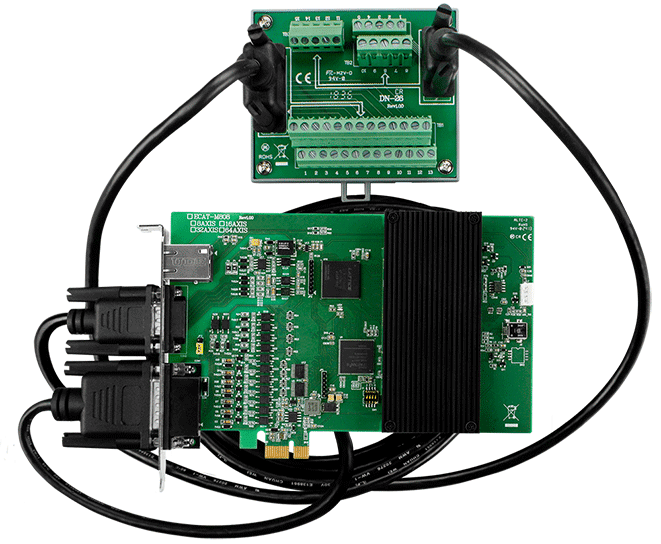

A second CPU with EtherCAT communication retention technology is designed to keep EtherCAT communication and the process recipe running even if the operating system or an application crashes. This ordering code is supplied without cable and daughter board.
Applications
- Motion control
- I/O control
- Data acquisition system
| Product type: | EtherCAT MainDevice board |
|---|---|
| Interface: | PCI Express x1 |
| Protocol: | EtherCAT |
| Digital inputs: | 13 |
| Digital outputs: | 13 |
| Ports: | 1 x RJ-45 |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | RJ45 x1 DB-26 (Female) DB-15 (Female) |
| Encoder Input | |
| No. of Axes | 2 |
| Type | Quadrant, CW/CCW, Pulse/Dir. |
| Resolution | 32-bit |
| Response Speed | 1 MHz |
| Compare Trigger Output | 2-ch |
| Digital Input | |
| Channels | 13 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +19 V ~ + 24 V |
| OFF Voltage Level | +11 V Max. |
| Isolation | 3000 VDC |
| Digital Output | |
| Channels | 13 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +24 V |
| Load Current | 100 mA/ch |
| Isolation | 3000 Vrms |
| PC Bus | |
| Type | PCI Express x1 |
| EtherCAT | |
| Ports | 1 x RJ-45 |
| No. of Axes | ECAT-M808-8AX Max. 8 ECAT-M808-16AX Max. 16 ECAT-M808-32AX Max. 32 ECAT-M808-64AX Max. 64 ECAT-M808-8AX/S Max. 8 ECAT-M808-16AX/S Max. 16 ECAT-M808-32AX/S Max. 32 ECAT-M808-64AX/S Max. 64 |
| No. of Nodes | Max. 512 |
| Data Transfer Medium | Ethernet Cable (Min. CAT 5e), Shielded |
| Mechanical | |
| Dimensions (mm) | 135 x 192 x 21.5 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 0 ~ 90% RH, Non-condensing |
