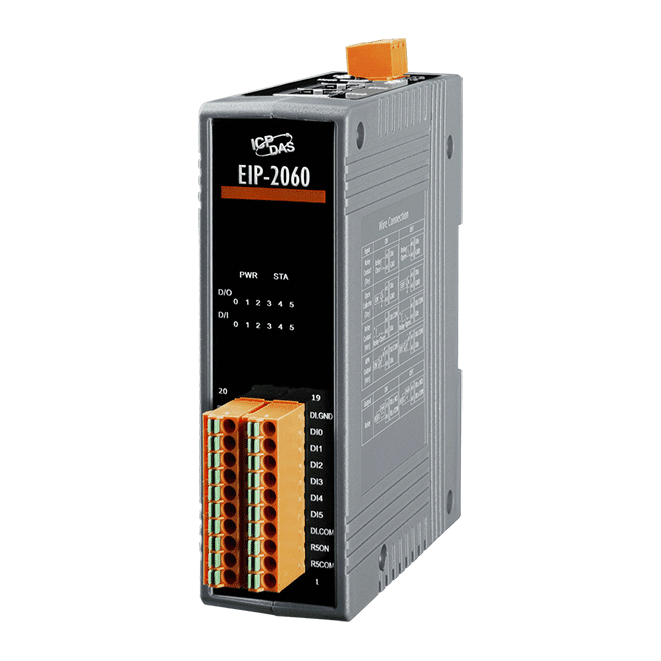

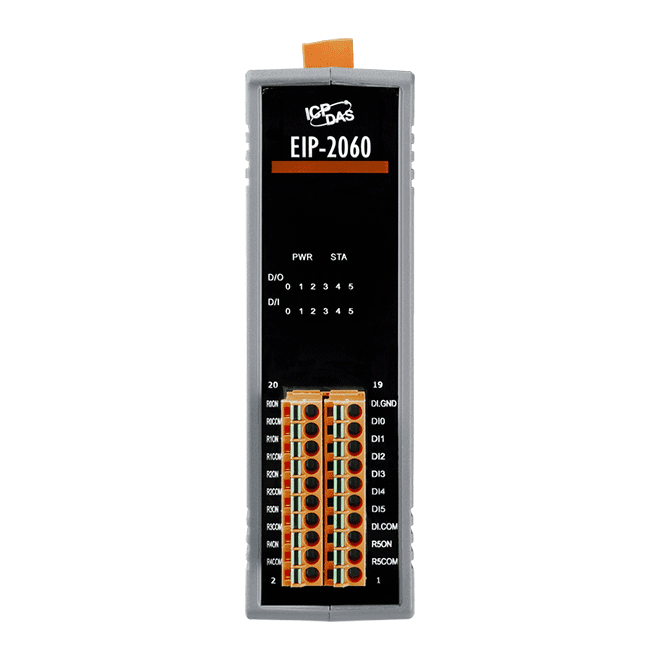

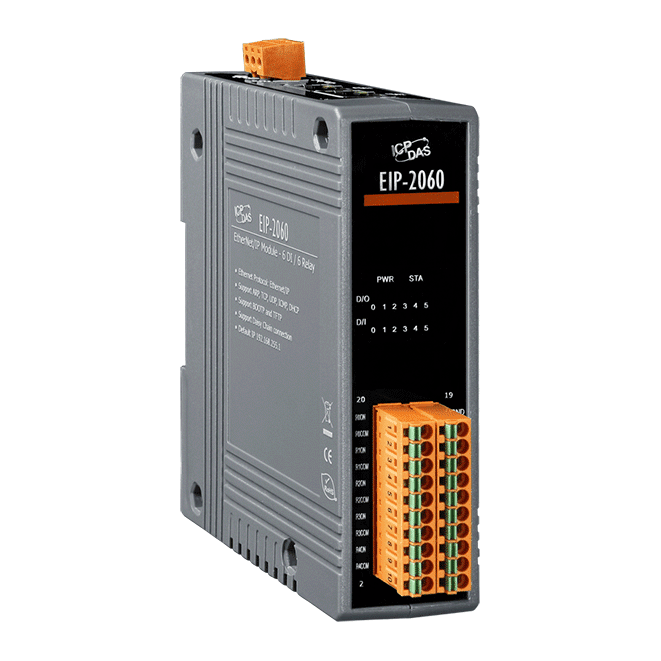

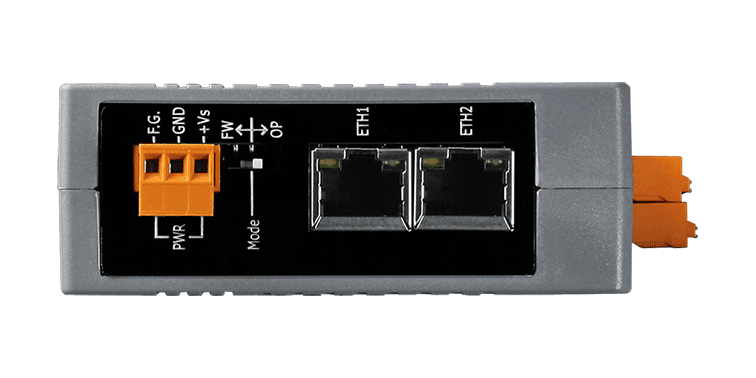

EIP-2060 EtherNet/IP Remote I/O Module, 6-ch DI and 6-ch Relay Output
EtherNet/IP adapter module with 6 isolated digital inputs and 6 Form A relay outputs, offering a daisy-chain-capable 10/100 Base-TX Ethernet connection for remote I/O.
- EtherNet/IP adapter with 10/100 Base-TX Ethernet, 2 x RJ-45, auto-negotiating and auto MDI/MDIX
- 6 isolated digital inputs (wet contact, sink/source) with 32-bit counter, 3 kHz frequency
- 6 Form A (SPST N.O.) power relay outputs rated 5 A @ 250 VAC/24 VDC resistive
- Power-on value and safe value settings for relay outputs
- Daisy chain connection supports star, line or ring network topologies
- Firmware update via Ethernet and configuration utility for setup and testing
1.360,30 kr. pr. stk.
| 1–9 stk. | 1.360,30 kr. | |
|---|---|---|
| 10–30 stk. | 1.322,93 kr. | −3 % |
| 31+ stk. | 1.293,04 kr. | −5 % |
Produktinformation "EIP-2060 EtherNet/IP Remote I/O Module, 6-ch DI and 6-ch Relay Output"
The EIP-2060 is a remote digital I/O module that connects 6 digital inputs and 6 power relay outputs to an EtherNet/IP network. It works as an EtherNet/IP adapter, so it can be added to an existing Ethernet infrastructure without a separate fieldbus gateway. A 32-bit MCU handles network traffic, and the input channels can operate as counters.
Each digital input is a sink/source wet contact with an ON level of +5 VDC to +50 VDC and a frequency of 3 kHz, and each relay is rated at 5 A @ 250 VAC/24 VDC (resistive load). Two RJ-45 ports support daisy chaining, so the module can be placed along a line, in a star or in a ring topology. The ordering code EIP-2060 CR is the RoHS-compliant version listed in the ordering information.
Status is shown by LEDs for I/O and connection state. Power-on and safe values can be set for the relay outputs, and firmware can be updated over Ethernet. A software utility supplied by the manufacturer is available for configuring and testing the module via Ethernet.
Applications
- Building automation
- Factory automation
- Machine automation
- Remote maintenance
- Remote diagnosis
- Testing equipment
| Product type: | Remote I/O module |
|---|---|
| Interface: | 10/100 Base-TX Ethernet |
| Protocol: | EtherNet/IP |
| Digital inputs: | 6 |
| Relay outputs: | 6 |
| Ports: | 2 |
| Isolation: | Isolated |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Digital Input/Counter | |
|---|---|
| Channels | 6 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +5 VDC ~ +50 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 32-bit (4294967295) |
| Frequency | 3 kHz |
| Input Impedance | 7.5 kΩ |
| Relay Output | |
| Channels | 6 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 5 A @ 250 VAC/24 VDC (Resistive Load) |
| Operate Time | 10 ms (max.) |
| Release Time | 5 ms (max.) |
| Electrical Endurance | 10^5 ops. |
| Mechanical Endurance | 2 x 10^7 ops. |
| Power on Value | Yes |
| Safe Value | Yes |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2 Support daisy chain connection |
| Protocol | Ethernet/IP (Adapter) |
| Power | |
| Consumption | Non-RevB : 1.6W ; RevB : 3.3W Max |
| Mechanical | |
| Dimensions (mm) | 110 x 90 x 33 (H x W x D) |
| Environment | |
| Operating Temperature | -25℃ ~ +75℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
