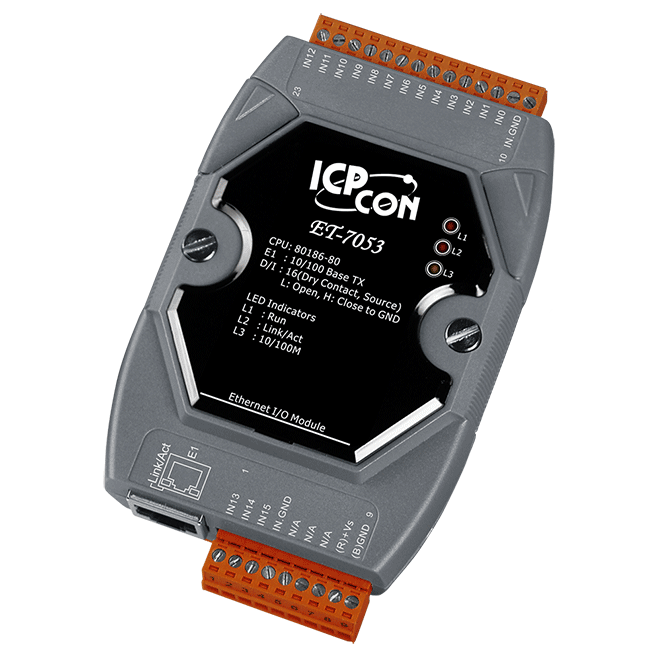

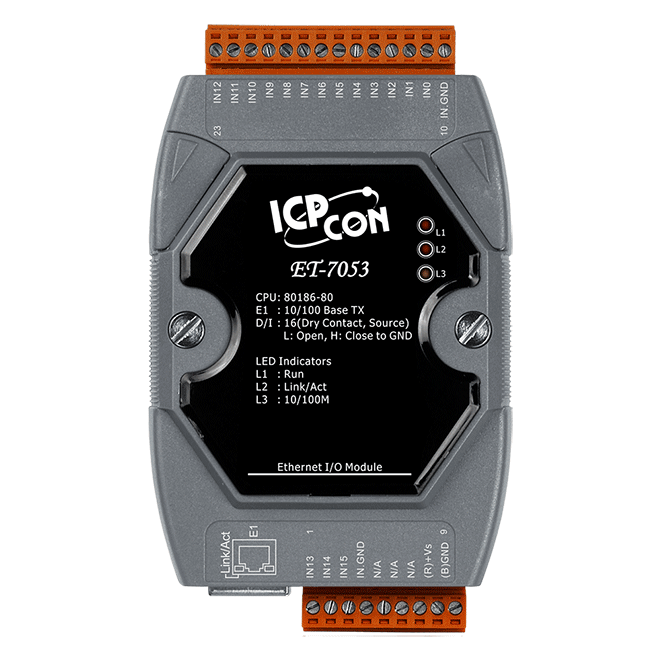

ET-7053 Ethernet I/O Module, 16-ch Digital Input/Counter
16-channel dry contact digital input module with Modbus TCP and Modbus UDP over 10/100 Base-TX Ethernet. Each channel can also count as a 32-bit counter.
- 16 dry contact digital input channels, each selectable as a 32-bit counter with a maximum of 4,294,967,295 counts
- Modbus TCP and Modbus UDP support through a single 10/100 Base-TX RJ-45 port
- Built-in web server with Web HMI
- Dual watchdog covering module and communication, programmable
- Optical isolation: 1500 VDC on Ethernet, 2500 VDC on I/O, with no channel-to-channel isolation
- Access control by ID, password and IP filter, plus communication security
1.285,56 kr. pr. stk.
| 1–9 stk. | 1.285,56 kr. | |
|---|---|---|
| 10–30 stk. | 1.248,19 kr. | −3 % |
| 31+ stk. | 1.225,77 kr. | −5 % |
Produktinformation "ET-7053 Ethernet I/O Module, 16-ch Digital Input/Counter"
The ET-7053 is an Ethernet remote I/O module that brings 16 dry contact digital inputs onto a Modbus network. Every channel can be used as a 32-bit counter, which suits pulse counting and event monitoring where input states must be reported to a host over Ethernet.
Electrical isolation is provided on the input side, with 1500 VDC on the Ethernet interface and 2500 VDC on the I/O. The inputs are not isolated from one another, so channels share a common reference. The module is suitable for installations where hazardous voltages may be present, and its EFT and ESD immunity ratings are stated for use in industrial environments.
The built-in web server and Web HMI, dual watchdog, I/O pair connection and access control with ID, password and IP filtering make the ET-7053 straightforward to supervise and secure on a plant network. It mounts on a DIN rail and operates from a +10 ~ +30 VDC supply over a wide temperature range.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP |
| Digital inputs: | 16 |
| Ports: | 1 |
| Isolation: | 1500 VDC Ethernet / 2500 VDC I/O |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet |
| Digital Input/Counter | |
| Channels | 16 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 500 Hz |
| Min. Pulse Width | 1 ms |
| Effective Distance | 500m (max.) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 2.7 W (max.) |
| Powered from Terminal Block | +10 ~ +30 VDC |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
