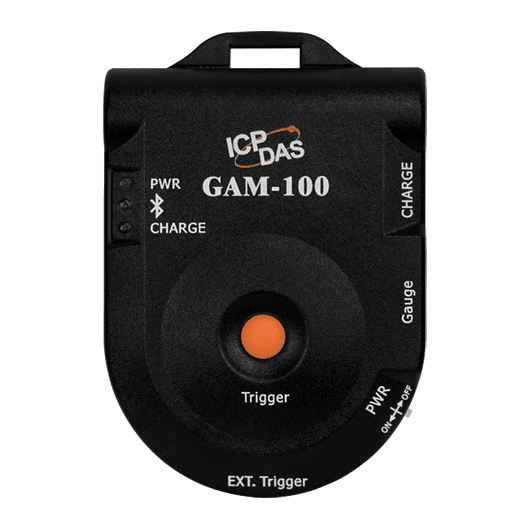

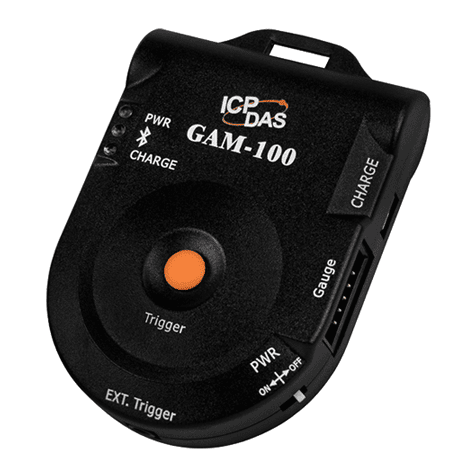

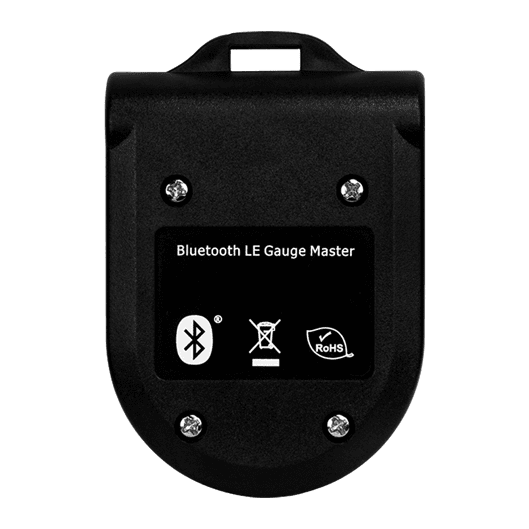

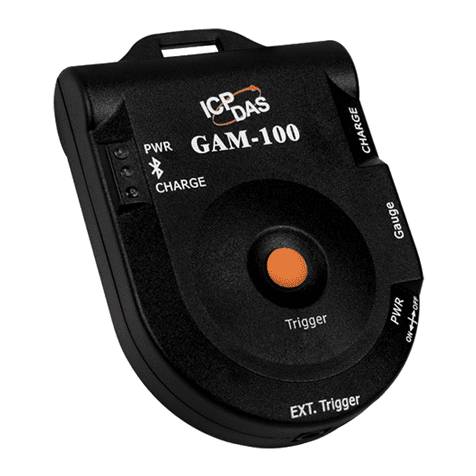

GAM-100 Bluetooth LE Gauge Master for Mitutoyo SPC Gauges
Bluetooth LE 4.0 gauge master that reads Mitutoyo gauge measurements over SPC and passes them to Android devices, with up to 100 hours of battery life.
- Bluetooth LE (Bluetooth 4.0) link to Mitutoyo gauges connected via SPC
- Wireless transmission range up to 20 m line of sight
- Selectable transmission rate of 1, 2, 5 or 10 Hz, set by app
- Trigger button and 3.5 mm foot switch connector for logging data
- Single and continuous trigger modes
- Rechargeable Li-ion battery with micro USB charging, 100 hours at 10 Hz
635,31 kr. pr. stk.
| 1–9 stk. | 635,31 kr. | |
|---|---|---|
| 10–30 stk. | 620,36 kr. | −2 % |
| 31+ stk. | 605,41 kr. | −5 % |
Produktinformation "GAM-100 Bluetooth LE Gauge Master for Mitutoyo SPC Gauges"
GAM-100 CR is a Bluetooth Low Energy (Bluetooth 4.0) gauge master that connects Mitutoyo gauges via their SPC interface. A smartphone or tablet can then receive measurement data wirelessly through the unit, without a cable run to the gauge.
The unit has a built-in micro USB rechargeable Li-ion battery, rated at 100 hours at a 10 Hz transmission rate. Transmission rates of 1, 2, 5 and 10 Hz are selected in the Android app, which is also used for gauge data acquisition and configuration. Measurements can be logged with the trigger button or a 3.5 mm foot switch, in single or continuous trigger mode.
Data can be kept in local memory on the mobile device or uploaded to a remote MySQL server. Status is shown by LEDs for battery, RF link and charging.
Applications
- Wireless dimensional measurement with Mitutoyo gauges
- Logging gauge measurements to a mobile device
- Uploading measurement data to a remote MySQL server
- Quality control and statistical process control data collection
| Product type: | Bluetooth LE Gauge Master |
|---|---|
| Interface: | SPC |
| Protocol: | Bluetooth 4.0 |
| Power input: | Micro USB rechargeable Li-ion battery |
| Operating temperature: | 0 ~ +45 °C |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 32 bit, Microprocessor |
| LED Indicators | |
| Status | 1 x Battery 1 x RF link 1 x Battery Charge |
| RF | |
| Antenna | 1.0 dBi chip antenna |
| Standard | Bluetooth 4.0 |
| Transmission Cycle | 1, 2, 5, or 10 Hz, configured by APP |
| Transmission Distance (LoS) | 20 m |
| Mitutoyo Gauge | |
| Type | ID-S1012MX NTD 10-6:PMX |
| Power | |
| Charge Interface | Micro USB |
| Battery Usage Life | 100 hours / 10 Hz |
| Battery | Rechargeable Li-ion battery |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 84 x 59 x 21 (W x L x H) |
| Environment | |
| Operating Temperature | 0 ~ +45 °C |
| Storage Temperature | 0 ~ +45 °C |
| Humidity | 10~90% |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
