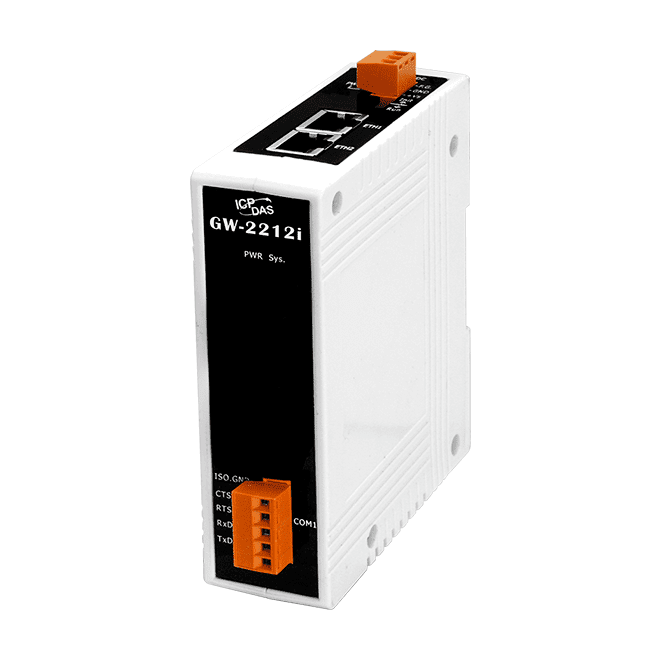

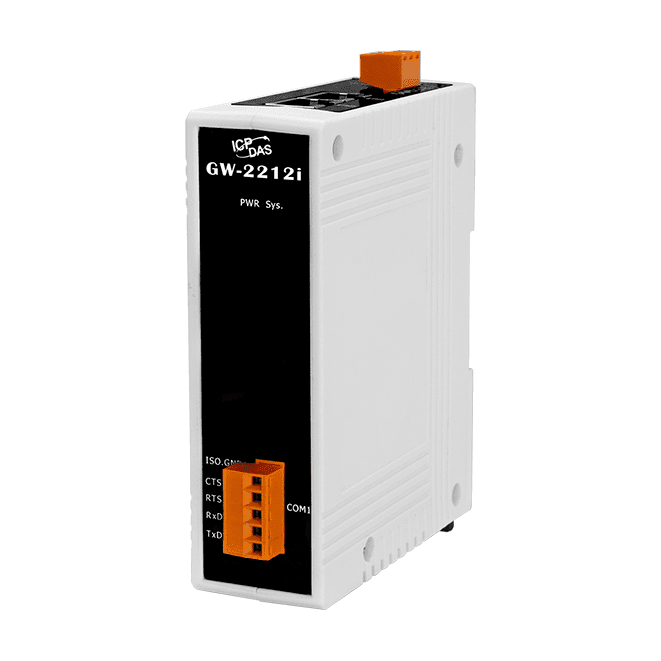

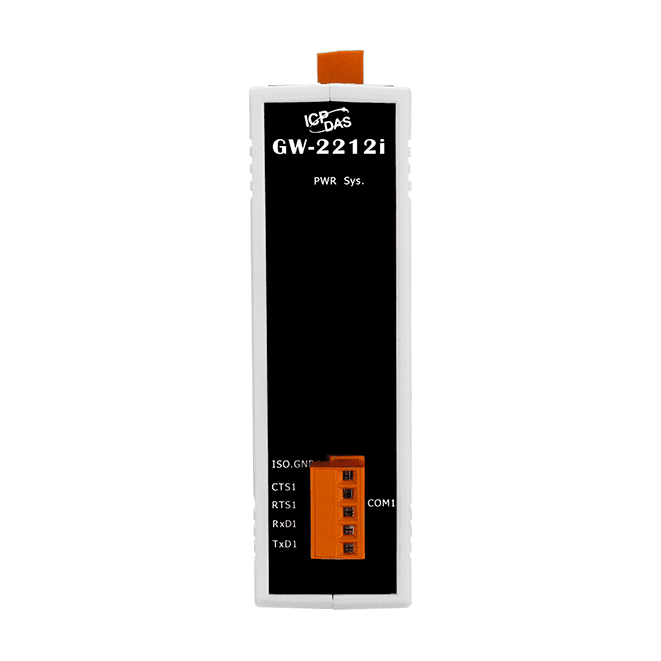

GW-2212i Modbus TCP to RTU/ASCII Gateway, 2-Port Switch, Isolated RS-232
Modbus TCP to RTU/ASCII gateway with a 2-port Ethernet switch and one isolated RS-232 port, letting Modbus TCP hosts reach serial devices over Ethernet.
- Converts Modbus TCP/UDP masters to Modbus RTU/ASCII slaves and back, in both master and slave modes
- Up to 32 TCP connections (masters) per serial port
- Read-cache returns repeated responses immediately, reducing serial bus load
- 2 x 10/100 Base-TX Ethernet ports with auto-MDI/MDIX and daisy-chaining
- PoE (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block power
- 1 x isolated RS-232 port, 115200 bps max., 3000 VDC signal isolation
1.180,92 kr. pr. stk.
| 1–9 stk. | 1.180,92 kr. | |
|---|---|---|
| 10–30 stk. | 1.151,03 kr. | −3 % |
| 31+ stk. | 1.128,60 kr. | −4 % |
Produktinformation "GW-2212i Modbus TCP to RTU/ASCII Gateway, 2-Port Switch, Isolated RS-232"
The GW-2212i bridges Modbus TCP hosts and serial Modbus RTU/ASCII devices, so legacy serial equipment can be reached over an Ethernet network without the cable length limits of a direct serial connection. It supports Modbus TCP/UDP and Modbus RTU/ASCII in both master and slave roles, with up to 32 TCP masters per serial port.
Beyond protocol conversion, the unit can run as a serial bridge, serial tunnel or pair-connection, routing data over TCP/IP between two serial Modbus devices. A read-cache stores previous requests and responses so repeated polls to the same slave are answered immediately, reducing load on the serial port and improving response times. Two Ethernet ports allow daisy-chaining, and the module can be powered over PoE (IEEE 802.3af, Class 1) or from a DC terminal block.
The GW-2212i is configured through its built-in web server, which supports static IP or DHCP addressing and the serial port settings. A dual watchdog (CPU and host) is provided to keep the module running and recover from firmware faults or loss of communication with the host. It is DIN-rail mounted and carries RoHS compliance.
Applications
- Factory automation
- Building and home automation
- Remote diagnosis and management
- Solar monitoring
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet, RS-232 |
| Protocol: | Modbus RTU/ASCII, Modbus TCP |
| Ports: | 2 Ethernet, 1 RS-232 |
| PoE: | IEEE 802.3af, Class 1 |
| Isolation: | 3000 VDC signal |
| Power input: | PoE or +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 (1000 VDC for Power Isolation, 3000 VDC for Signal Isolation) |
| Baud Rate | 115200 bps Max. |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Power | |
| Consumption | 0.07 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 97 mm x 33 mm x 126 mm (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
