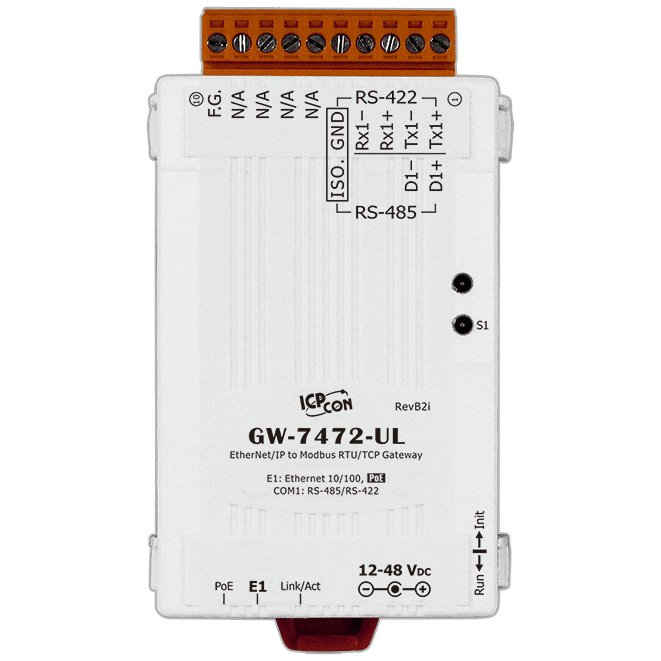

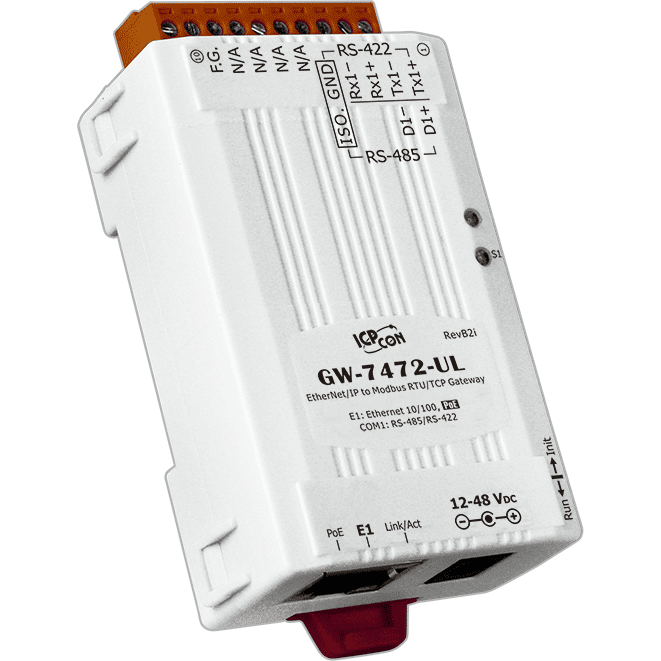

GW-7472-UL EtherNet/IP to Modbus RTU/TCP Gateway, PoE, 1 RS-422/485
EtherNet/IP adapter gateway linking a Modbus RTU master serial port and Modbus TCP client networks, with PoE and redundant DC power. DIN-rail mounted.
- EtherNet/IP adapter with up to 6 explicit and 1 implicit message connections
- Modbus RTU master on a 2-wire RS-485 or 4-wire RS-422 port, with up to 30 Modbus RTU commands
- Supports up to 10 Modbus TCP servers, with up to 8 Modbus commands per server
- Modbus RTU function codes 01, 02, 03, 04, 0F and 10; maximum 240 bytes per Modbus command
- IEEE 802.3af PoE (Class 1) with redundant DC-jack power input

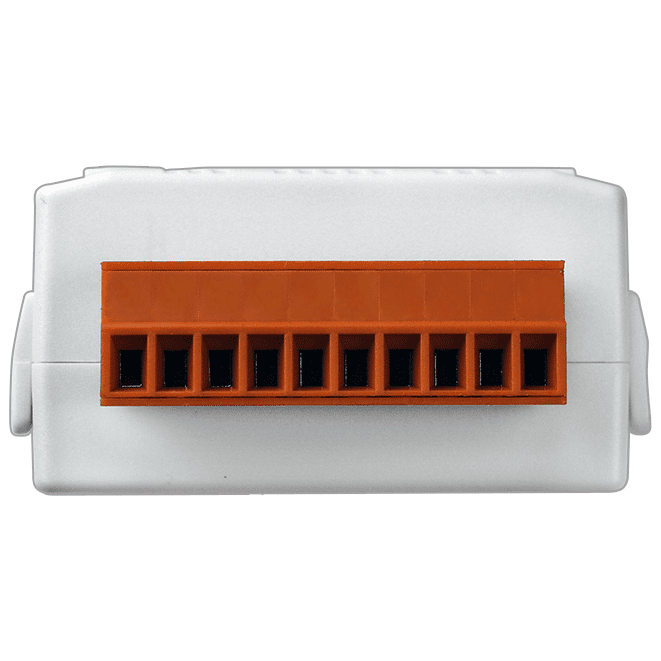

- Removable 10-pin terminal block connector and DIN-rail installation
1.225,77 kr. pr. stk.
| 1–9 stk. | 1.225,77 kr. | |
|---|---|---|
| 10–30 stk. | 1.188,40 kr. | −3 % |
| 31+ stk. | 1.158,50 kr. | −5 % |
Produktinformation "GW-7472-UL EtherNet/IP to Modbus RTU/TCP Gateway, PoE, 1 RS-422/485"
The GW-7472-UL bridges EtherNet/IP, Modbus RTU and Modbus TCP networks. It acts as an EtherNet/IP adapter to a scanner, reads register data from Modbus RTU slaves and Modbus TCP servers, and presents that data as EtherNet/IP input data. Output data from the scanner is written back to the register data of the Modbus devices.
This standard GW-7472-UL variant is rated for an operating range of -25 ~ +70 °C. The UTA variant of the series extends this to -40 ~ +70 °C, so this ordering code suits installations that do not require sub-zero operation at the lower limit. The unit is supplied with a DC-jack to 2-wire power cable, 0.3 M (CA-002-UL).
The compact housing measures 52 x 27 x 77.4 mm and mounts on DIN-rail. It accepts power over Ethernet to IEEE 802.3af Class 1, or from a DC adapter, and the two power inputs are redundant. Firmware can be updated over Ethernet.
Applications
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
| Product type: | Gateway |
|---|---|
| Interface: | RJ-45, RS-422/485 |
| Protocol: | EtherNet/IP, Modbus RTU, Modbus TCP |
| Ports: | 2 |
| PoE: | IEEE 802.3af, Class 1 |
| Power input: | PoE or DC jack |
| Operating temperature: | -25 ~ +70 °C |
| Mounting: | DIN-rail |
Specifikationer
| Ethernet | |
|---|---|
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| Protocol | EtherNet/IP (Adapter) and Modbus TCP client |
| COM Ports | |
| Ports | 2-wire RS-485 4-wire RS-422 10-Pin Removable Terminal Block x 1 |
| Protocol | Modbus RTU master |
| Power | |
| Consumption | 0.05 A @ 24 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 27 x 77.4 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | GW-7472-UL: -25 ~ +70 °C GW-7472-UL-UTA: -40 ~ +70 °C |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
