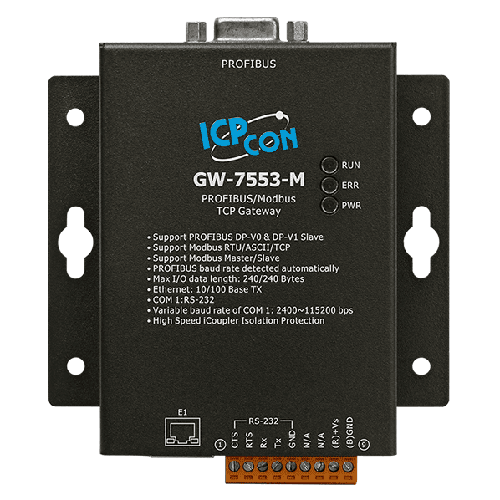

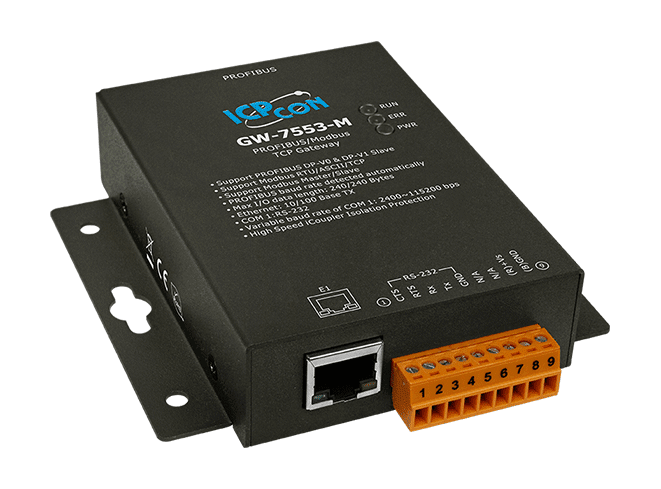

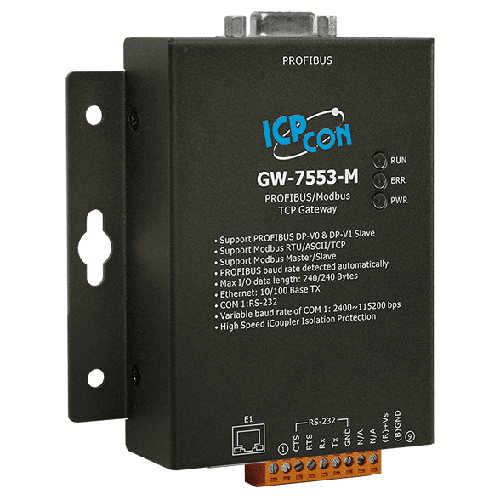

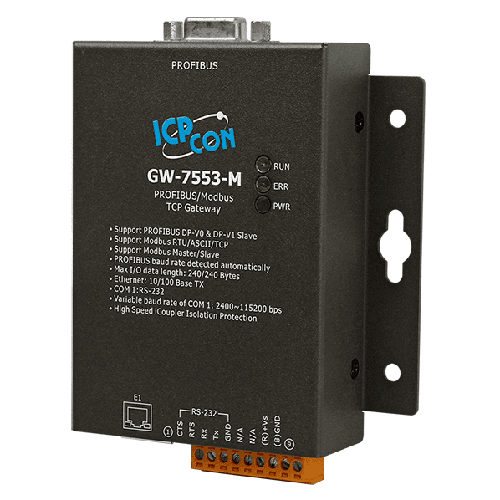

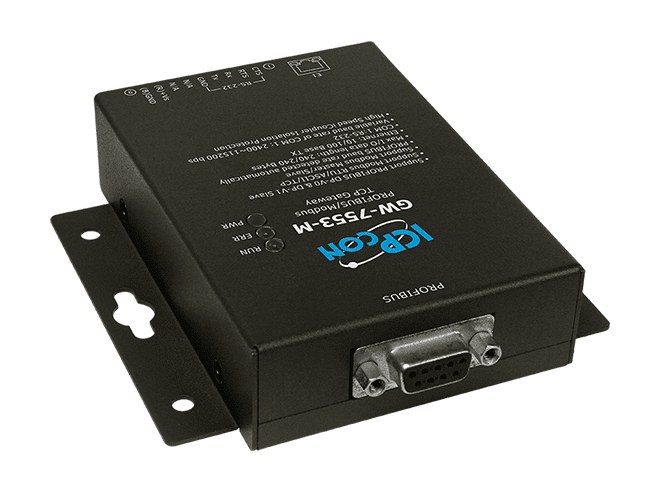

GW-7553-M PROFIBUS DP to Modbus TCP Gateway, Metal Case
PROFIBUS DP-V0/DP-V1 slave to Modbus TCP gateway in a metal DIN-rail housing, letting a PROFIBUS master reach Modbus TCP devices over Ethernet.
- PROFIBUS DP-V0 and DP-V1 slave interface giving a master access to Modbus TCP devices
- Up to 240 bytes of input and 240 bytes of output process data
- Modbus Master/Slave mode with RTU, ASCII and TCP format support
- Node address 0 to 126, set by DIP switch or EEPROM
- 2500 Vrms network isolation and 3000 VDC isolation on the PROFIBUS side
- Built-in web server for configuration from a web browser
3.669,83 kr. pr. stk.
| 1–9 stk. | 3.669,83 kr. | |
|---|---|---|
| 10–30 stk. | 3.557,72 kr. | −3 % |
| 31+ stk. | 3.482,98 kr. | −5 % |
Produktinformation "GW-7553-M PROFIBUS DP to Modbus TCP Gateway, Metal Case"
The GW-7553-M lets a PROFIBUS DP master communicate with Modbus TCP devices such as PLCs, sensors and Modbus TCP I/O modules, so existing Modbus equipment can be brought into a PROFIBUS network without changes to the master. It operates as a PROFIBUS DP-V0 and DP-V1 slave, and supports up to 240 bytes of input data and 240 bytes of output data.
Configuration is handled through the built-in web server, which can be accessed from a standard web browser. The unit also offers Modbus Master or Slave operation and supports the RTU, ASCII and TCP formats, with a node address range of 0 to 126 set by DIP switch or EEPROM. An RS-232 port is provided for firmware updates and configuration.
Electrical isolation is rated at 2500 Vrms on the network side and 3000 VDC on the PROFIBUS side. The metal casing is intended for DIN-rail installation across an operating range of -25 ~ +75 °C, making it suitable for factory and process automation installations.
Applications
- Industrial Automation
- Factory Automation
- Process Automation
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet, PROFIBUS, RS-232 |
| Protocol: | PROFIBUS DP-V0/DP-V1 to Modbus TCP |
| Isolation: | 2500 Vrms (network), 3000 VDC (PROFIBUS) |
| Operating temperature: | -25 ~ +75 °C |

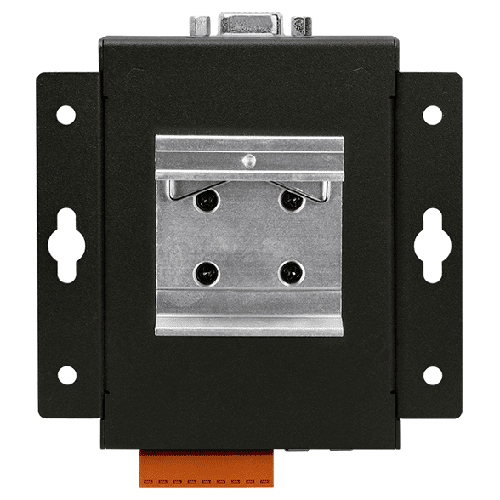

| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Watchdog IC CPU built-in |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| Ethernet | |
| Ports | 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
| COM Ports | |
| Ports | RS-232 (For updating firmware and configuration) 5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND ) |
| Baud Rate | 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| PROFIBUS | |
| Controller | Profichip VPC3+C |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 & DP-V1 |
| Power | |
| Consumption | 2.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 96 x 33 x 119 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +85 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
