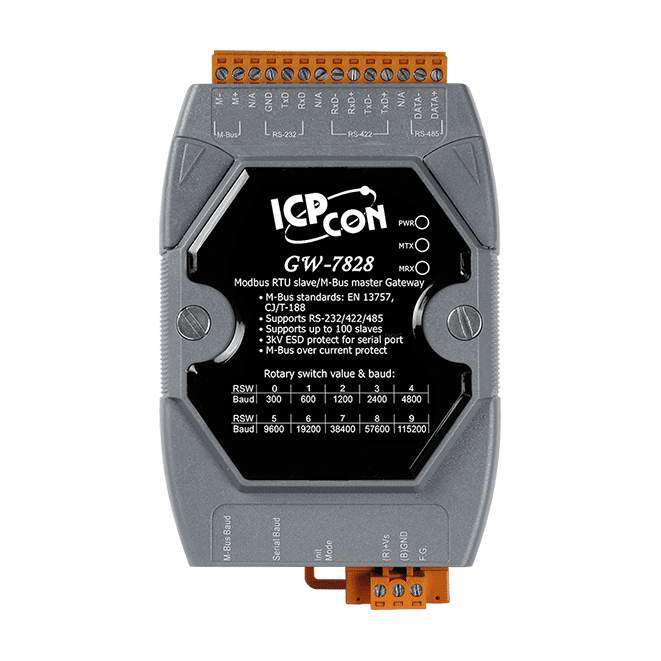

GW-7828 Modbus RTU to M-Bus Gateway, Up to 100 M-Bus Slaves
Modbus RTU slave gateway that reads data from up to 100 M-Bus meters and devices over RS-232, RS-422 or RS-485. Suited to meter reading and sensor data collection.
- Reads M-Bus meter data over Modbus RTU using function codes 0x03 and 0x04
- Supports up to 100 M-Bus slave devices
- Complies with the EN 13757 and CJ/T 188 M-Bus standards
- Serial ports: 1 x RS-232, 1 x RS-422 (not usable simultaneously) and 1 x RS-485
- M-Bus over-current and short-circuit protection with 3750 Vrms photo-coupler isolation
- Baud rates set by rotary switches for serial and M-Bus ports
2.077,83 kr. pr. stk.
| 1–9 stk. | 2.077,83 kr. | |
|---|---|---|
| 10–30 stk. | 2.010,56 kr. | −3 % |
| 31+ stk. | 1.973,19 kr. | −5 % |
Produktinformation "GW-7828 Modbus RTU to M-Bus Gateway, Up to 100 M-Bus Slaves"
GW-7828 CR is a gateway that lets Modbus RTU masters read data from M-Bus (Meter-Bus) slave devices. It is intended for remote reading of consumption meters, and also for sensors and actuators that use the M-Bus standard. Engineers can integrate M-Bus devices into an existing Modbus RTU system without writing M-Bus drivers.
The gateway responds to Modbus RTU function codes 0x03 and 0x04 to read M-Bus meter data, and supports up to 100 M-Bus slave devices. Serial communication is available through RS-232, RS-422 or RS-485, and two rotary switches set the baud rates for the serial port and the M-Bus port.
The M-Bus port includes over-current and short-circuit protection, with 3750 Vrms photo-coupler isolation. Firmware can be updated through the serial port. Power consumption is 1.8 W at 24 VDC with one slave device and 11.8 W with 100 slave devices.
Applications
- Energy counters
- Hot and cold water counters
- Gas meters
- Pressure sensors
- M-Bus sensors and actuators
| Product type: | Gateway |
|---|---|
| Interface: | RS-232, RS-422, RS-485 |
| Protocol: | M-Bus, Modbus RTU |
| Ports: | 3 |
| Isolation: | 3750 Vrms |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail |
Specifikationer
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 1 x RS-422 (can't be used simultaneously) 1 x RS-485 |
| Baud Rate | 300 bps ~ 115200 bps |
| Parity | None, Even, Odd, Space, Mark |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| M-Bus | |
| Baud Rate | 300 bps ~ 2400 bps |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Isolation | 3750 Vrms for photo-couple |
| Current Protection | short-circuit protection |
| Power | |
| Consumption | 1.8 W @ 24 VDC (with 1 slave device) 11.8 W @ 24 VDC (with 100 slave devices) |
| Mechanical | |
| Dimensions (mm) | 72 x 122 x 33 (W x L x D) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +60°C |
| Storage Temperature | -40 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
