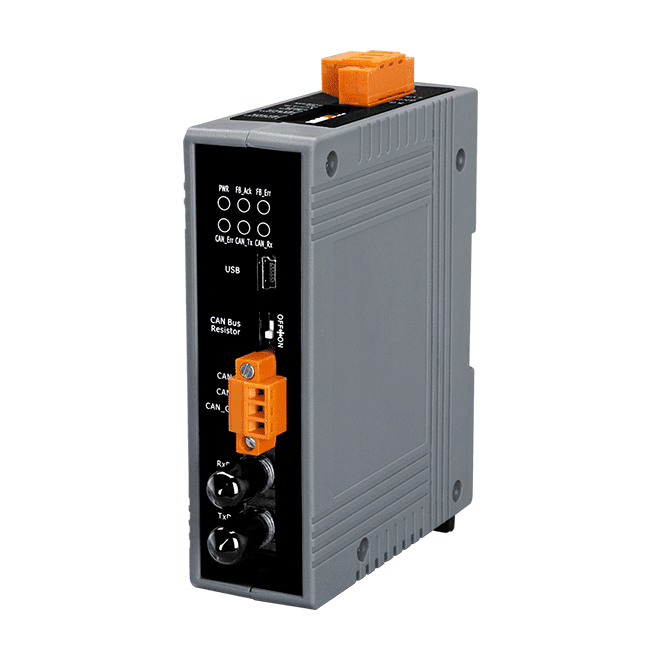

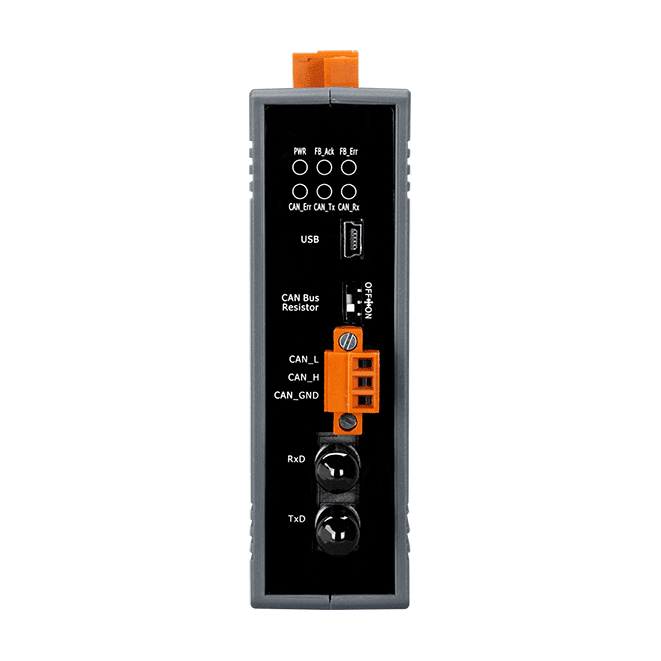

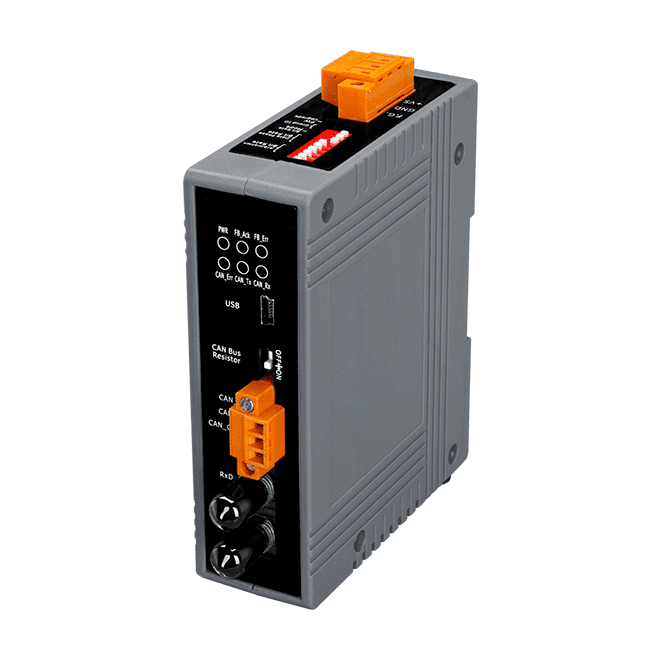

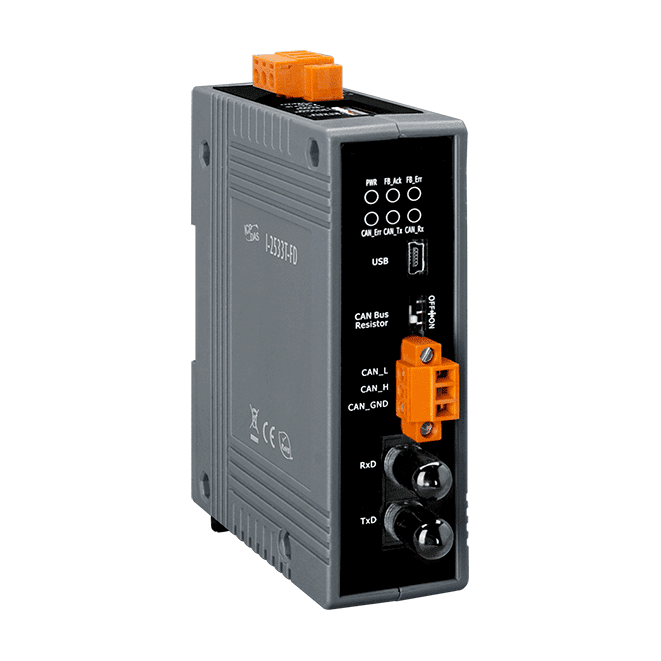

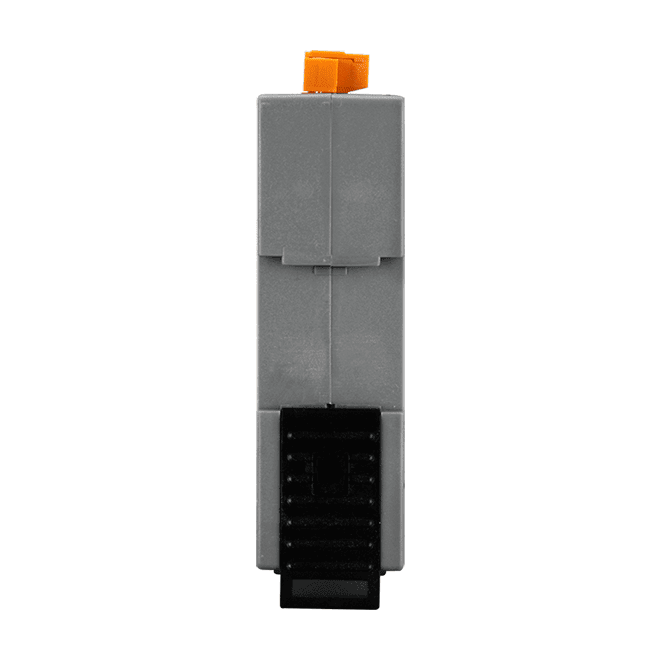

I-2533T-FD CAN/CAN FD to Multi-mode Fiber Bridge, 2 km ST
CAN/CAN FD to multi-mode fibre bridge with ST connector, linking two CAN networks over up to 2 km while letting each side run its own baud rate.
- Bridges two CAN or CAN FD networks over one multi-mode fibre link with an ST duplex connector, up to 2 km
- Compatible with ISO 11898-2 and CAN specification 2.0 A/B and FD
- CAN FD ISO and Non-ISO (Bosch) standards are switchable
- CAN bit rates from 10 kbps to 1000 kbps; CAN FD data field from 100 kbps to 10000 kbps
- Fibre broken line detection on the optical link
- CAN message filter configuration and basic routing via Group ID settings
2.189,94 kr. pr. stk.
| 1–9 stk. | 2.189,94 kr. | |
|---|---|---|
| 10–30 stk. | 2.122,67 kr. | −3 % |
| 31+ stk. | 2.077,83 kr. | −5 % |
Produktinformation "I-2533T-FD CAN/CAN FD to Multi-mode Fiber Bridge, 2 km ST"
The I-2533T-FD is a local bridge that connects two CAN or CAN FD bus systems over a multi-mode fibre optic link. It converts the electrical CAN/CAN FD signal to optical transmission, so the two networks can be separated by a distance that a copper bus cannot cover.
Because each network is isolated from the other, the baud rate on one side does not limit the transmission distance on the other, and the two networks can use different CAN or CAN FD baud rates. A bus error on one network does not affect the operation of the second network, which helps keep faults contained.

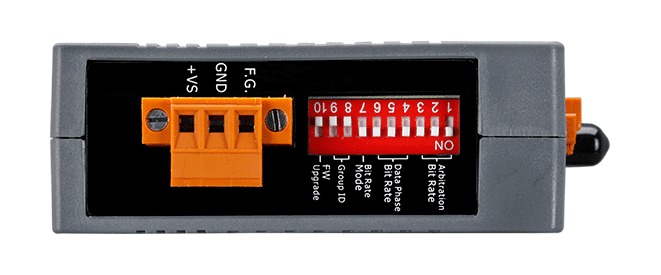

Setup is handled by a DIP switch for CAN/CAN FD baud rate, a switchable 120 ohm terminal resistor, CAN bus message filter configuration and basic message routing through Group ID settings. Fibre broken line detection is included for monitoring the optical link.
Applications
- Connecting two separate CAN or CAN FD bus systems over fibre
- Extending the total working distance of a CAN bus installation
- Control and monitoring networks across varied industrial installations
| Product type: | Fiber bridge |
|---|---|
| Interface: | CAN, CAN FD |
| Protocol: | CAN 2.0 A/B, CAN FD |
| Ports: | 1 |
| Isolation: | 2500 Vrms |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x Power 3 x CAN status 2 x Fiber status |
| Fiber | |
| Ports | Multi-Mode; ST Duplex connector x 1; 100 Base-FX |
| Fiber Cable | 50/125, 62.5/125 or 100/140 μm |
| Wavelength | 1310 nm |
| TX Output | -20 dBm Min. , -14 dBm Max. |
| Transmission Distance | 2 km (62.5/125 μm recommended) |
| RX Sensitivity | -32 dBm Max. |
| RX Overload | -8 dBm Max. |
| Budget | 12 dBm |
| Propagation Delay | 190 us (*Note1) |
| CAN | |
| Ports | 1 |
| Specification | ISO 11898-2, CAN 2.0 A/B and FD |
| Baud Rate | CAN bit rates: 10 k ~ 1 M bps, CAN FD bit rates for data field: 100 k ~ 10M bps (*Note2) |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photocoupler |
| Terminal Resistor | Switch for 120Ω terminal resistor |
| Filter | Yes |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 101 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
