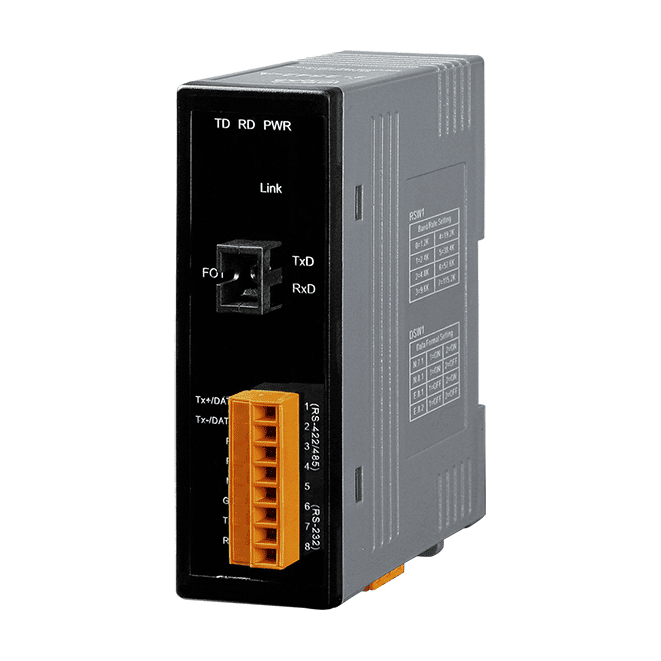

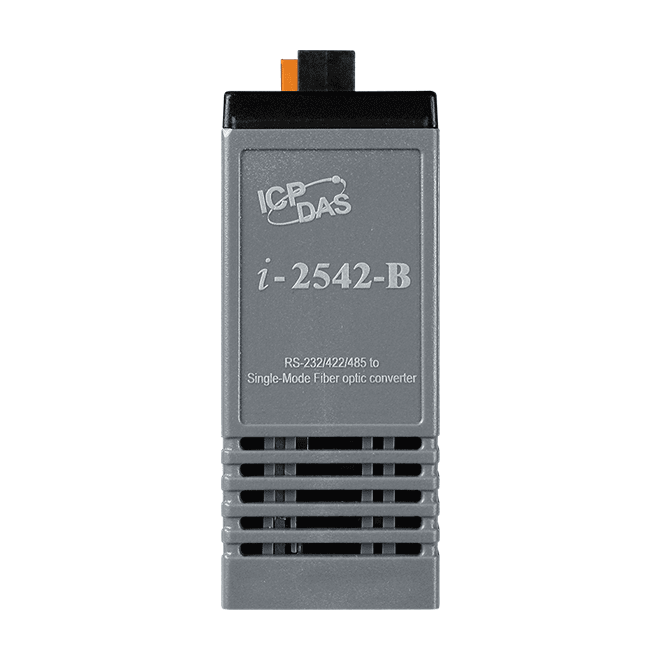

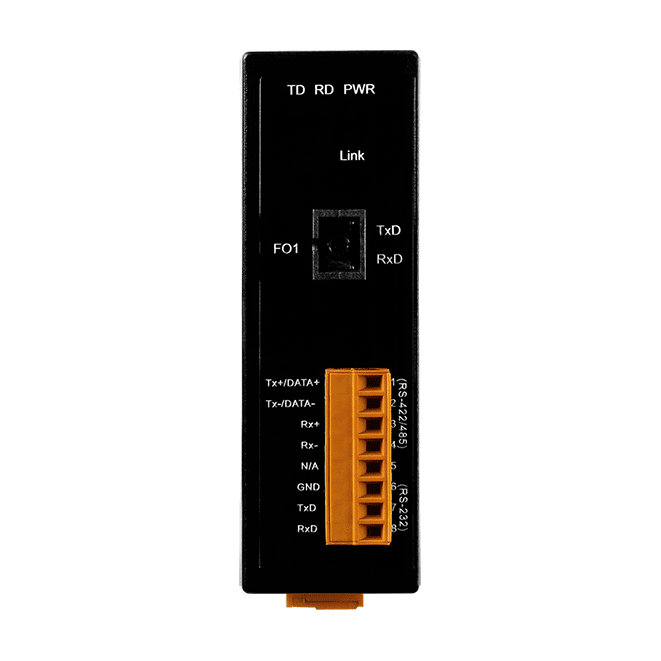

I-2542-B Single-Strand Fibre Converter, RS-232/422/485 to SC Single-Mode 15 km
Converts RS-232, RS-422 or RS-485 serial data to a single-mode SC fibre link of up to 15 km, using WDM with TX 1550 nm and RX 1310 nm over one fibre.
- Converts one RS-232, RS-422 or RS-485 port to single-mode SC fibre over up to 15 km
- WDM operation: TX 1550 nm and RX 1310 nm on one fibre strand, paired with the I-2542-A
- Automatic RS-485 direction control
- ESD protection on the RS-232/422/485 data line (IEC 61000-4-2)
- Fibre link helps avoid lightning strikes and EMI/RFI interference
- Baud rate from 1200 to 115200 bps
1.771,39 kr. pr. stk.
| 1–9 stk. | 1.771,39 kr. | |
|---|---|---|
| 10–30 stk. | 1.719,07 kr. | −3 % |
| 31+ stk. | 1.681,70 kr. | −5 % |
Produktinformation "I-2542-B Single-Strand Fibre Converter, RS-232/422/485 to SC Single-Mode 15 km"
The I-2542-B extends a single serial port over single-mode fibre, carrying RS-232, RS-422 or RS-485 traffic across distances of up to 15 km. Its WDM design sends and receives on separate wavelengths, so both directions share one fibre strand. It is supplied as the B half of a matched pair, so the I-2542-A is needed at the other end of the link.
Automatic RS-485 direction control removes the need to manage transmit enable signals in the host system. An ESD-protected data line and a fibre medium that is not affected by lightning strikes or EMI/RFI help keep the link reliable in electrically noisy plant. The unit accepts a 10 to 30 VDC supply, draws 2 W, and installs on a DIN rail in a plastic housing.
Operating range is -25 to +75 °C, with storage from -30 to +75 °C and 10 to 95% RH non-condensing. Baud rates from 1200 to 115200 bps are supported on the serial port.
Applications
- Extending serial links between buildings or plant areas beyond copper cable limits
- Serial device connections in electrically noisy industrial environments
- Point-to-point fibre links for RS-232, RS-422 or RS-485 equipment
| Product type: | Fibre converter |
|---|---|
| Interface: | RS-232/422/485 |
| Ports: | 1 |
| Power input: | +10 ~ +30 VDC, non-isolated |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 x Power and Communication |
| COM Ports | |
| Ports | 1 x RS-232/422/485 |
| Baud Rate | 1200 ~ 115200 bps |
| Fiber | |
| Ports | Single-Mode; SC connector x 1 |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Wavelength | TX: 1550, RX: 1310 nm |
| Transmission Distance | 15 km |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Consumption | 2 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 89 x 107 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
