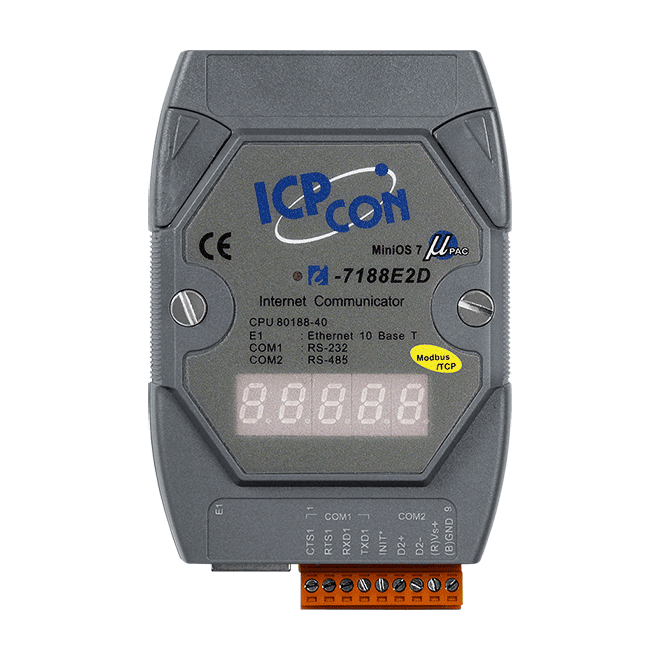

I-7188E2D-MTCP-G Palm-sized Modbus TCP to RTU Gateway, RS-232/RS-485
Programmable palm-sized gateway that links RS-232/RS-485 serial devices to an Ethernet network and works as a Modbus TCP to RTU gateway for SCADA and HMI systems. Gray cover variant.
- Modbus TCP to RTU gateway for SCADA and HMI communication
- Links RS-232 and RS-485 serial devices to a 10BASE-T Ethernet network
- 80188-40 CPU with 512 KB flash, 384 KB SRAM and 2 KB EEPROM
- Built-in MiniOS7 with C-language software development tool kit
- 5-digit 7-segment LED display and programmable LED indicator
- Built-in watchdog timer
1.524,74 kr. pr. stk.
| 1–9 stk. | 1.524,74 kr. | |
|---|---|---|
| 10–30 stk. | 1.479,89 kr. | −3 % |
| 31+ stk. | 1.449,99 kr. | −5 % |
Produktinformation "I-7188E2D-MTCP-G Palm-sized Modbus TCP to RTU Gateway, RS-232/RS-485"
The I-7188E2D-MTCP-G is a programmable gateway that brings serial devices onto Ethernet. It offers one 10BASE-T RJ-45 port alongside RS-232 and RS-485 serial ports, and can act as a Modbus TCP to RTU gateway so that Modbus TCP clients such as SCADA and HMI software can reach RTU-based equipment.
Built around an 80188-40 CPU with 512 KB flash and 384 KB SRAM, the unit runs ICP DAS MiniOS7 and is programmed in C using the supplied software development tool kit. XServer and Modbus libraries are provided for building custom serial-to-Ethernet logic, with a 5-digit 7-segment LED display, a programmable LED indicator and a built-in watchdog timer for status and reliability.
The -G suffix identifies the gray cover version. The unit is specified for a +10 to 30 VDC supply, -25 to +75 °C operation and DIN-rail mounting in a compact 72 x 112 x 33 mm housing.
Applications
- Integrating serial devices into Ethernet networks
- Modbus TCP to RTU gateway for SCADA and HMI systems
- Communication with SCADA software such as Indusoft, DasyLab, Trace Mode, Citect and iFix
| Product type: | Gateway |
|---|---|
| Interface: | RS-232/RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 3 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Gray |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80188, 40 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 384 KB |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System |
| Ethernet | |
| Ports | 1 x RJ-45, 10 Base-T |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 112 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
