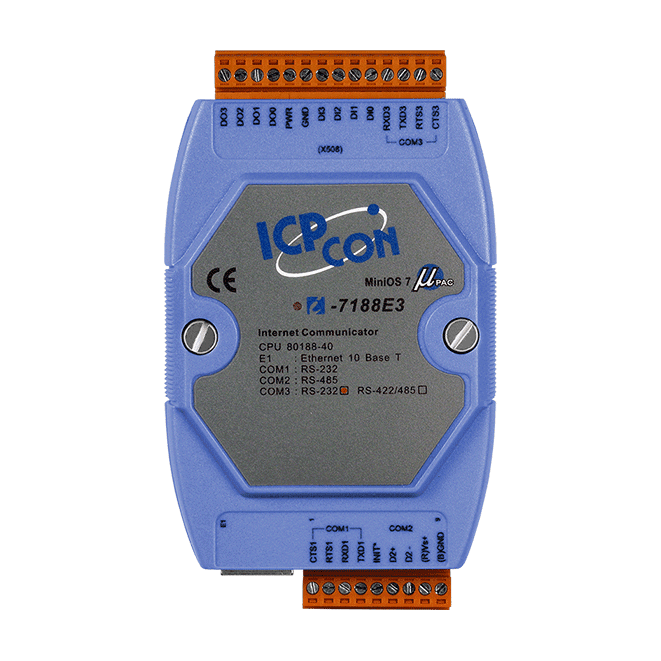

I-7188E3-232 Ethernet to 3-Port Serial Converter, 2x RS-232 / 1x RS-485
Programmable Ethernet to serial converter with two RS-232 ports and one RS-485 port, plus 4 digital inputs and 4 open-collector outputs, for Virtual COM or raw TCP links.
- Converts two RS-232 ports and one RS-485 port to Ethernet (10BASE-T)
- Data transfer via Virtual COM or raw TCP connection
- VxComm driver for 32-bit and 64-bit Windows 7 SP1/10/2012/2016
- Built-in MiniOS7 with Xserver programming structure for custom Ethernet applications
- 4 digital inputs (wet or dry contact) and 4 open-collector digital outputs, 100 mA each
- Watchdog timer and reverse polarity protection for harsh environments
1.988,14 kr. pr. stk.
| 1–9 stk. | 1.988,14 kr. | |
|---|---|---|
| 10–30 stk. | 1.928,34 kr. | −3 % |
| 31+ stk. | 1.890,97 kr. | −5 % |
Produktinformation "I-7188E3-232 Ethernet to 3-Port Serial Converter, 2x RS-232 / 1x RS-485"
I-7188E3-232 CR is a programmable device server that brings RS-232 and RS-485 serial devices onto an Ethernet network. It provides two RS-232 ports and one RS-485 port, so existing serial equipment can be connected to a network without replacing it.
Data can be passed through either a Virtual COM connection, using the VxComm driver on 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016, or a raw TCP connection, which makes the unit suitable for custom host software. The built-in MiniOS7 runs the Xserver programming structure, allowing custom Ethernet logic to be developed on the device.
The unit also includes 4 digital inputs (wet or dry contact) and 4 open-collector digital outputs rated at 100 mA. Its palm-sized housing has a watchdog timer for harsh environments, reverse polarity protection on the power input, and an operating range of -25 °C to +75 °C.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet converter |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | raw TCP, Virtual COM |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Ports: | 2x RS-232, 1x RS-485 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz 或 兼容 |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | 支持 |
| LED Indicators | |
| Status | 支持 |
| Digital Input | |
| Channels | 4 |
| Type | Wet Contact, Dry Contact |
| Sink/Source (NPN/PNP) | Wet:Sink Dry: Source |
| ON Voltage Level | Wet: +3.5 VDC ~ +30 VDC Dry: Close to GND |
| OFF Voltage Level | Wet: +1 VDC Max. Dry: Open |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Load Voltage | +30 VDC Max. |
| Load Current | 100 mA |
| Ethernet | |
| Ports | 10BASE-T NE2000 兼容以太网路控制器 |
| COM Ports | |
| Ports | 2 x RS-232 (TXD, RXD, RTS, CTS, GND) 1 x RS-485 (Data+, Data-) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2 W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
