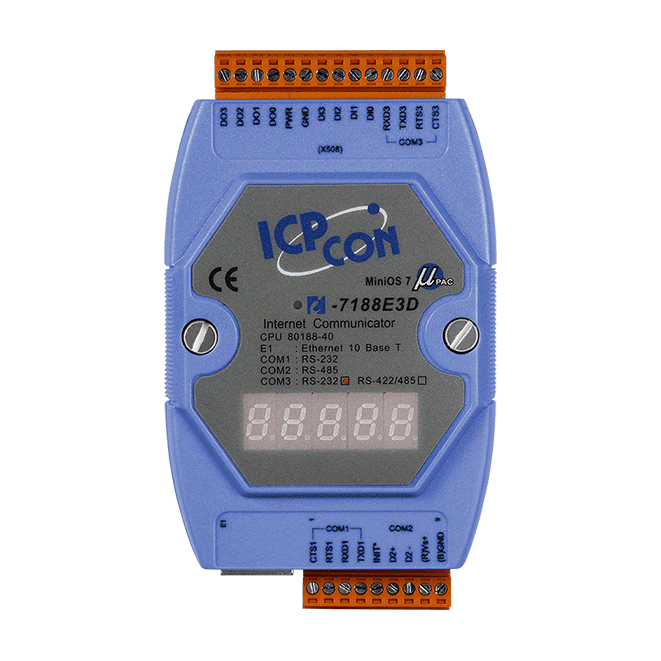

I-7188E3D-232 Ethernet to 3-Port Serial Device Server, 2x RS-232 + 1x RS-485
Programmable Ethernet device server with two RS-232 ports and one RS-485 port, bringing serial devices onto Ethernet via Virtual COM or raw TCP connections.
- Connects RS-232 and RS-485 serial devices to Ethernet
- Virtual COM or raw TCP data transmission
- VxComm driver for 32-bit and 64-bit Windows 7 SP1/10/2012/2016
- Built-in MiniOS7 with Xserver programming structure
- Four digital inputs (wet/dry contact) and four open-collector digital outputs
- Watchdog timer for use in harsh environments
2.204,89 kr. pr. stk.
| 1–9 stk. | 2.204,89 kr. | |
|---|---|---|
| 10–30 stk. | 2.137,62 kr. | −3 % |
| 31+ stk. | 2.092,78 kr. | −5 % |
Produktinformation "I-7188E3D-232 Ethernet to 3-Port Serial Device Server, 2x RS-232 + 1x RS-485"
I-7188E3D-232 CR is a programmable device server that links RS-232 and RS-485 serial equipment to an Ethernet network. It provides two RS-232 ports and one RS-485 port, so engineers can connect existing serial devices to a network without redesigning them.
Data can be carried either through Virtual COM, where the built-in COM ports appear as standard COM ports on a Windows PC using the VxComm driver, or over a raw TCP connection for direct socket-based communication. The built-in MiniOS7 operating system and Xserver programming structure allow custom Ethernet applications to be developed on the unit.
The unit has four wet/dry digital inputs and four open-collector digital outputs, a status LED display, a watchdog timer and reverse polarity protection on its 10 to 30 VDC supply. Its removable terminal block simplifies wiring, and it operates from -25 °C to +75 °C.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial converter |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | raw TCP, Virtual COM |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Ports: | 3 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Digital Input | |
| Channels | 4 |
| Type | Wet Contact, Dry Contact |
| Sink/Source (NPN/PNP) | Wet:Sink Dry: Source |
| ON Voltage Level | Wet: +3.5 VDC ~ +30 VDC Dry: Close to GND |
| OFF Voltage Level | Wet: +1 VDC Max. Dry: Open |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Load Voltage | +30 VDC Max. |
| Load Current | 100 mA |
| Ethernet | |
| Ports | 10 BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 2 x RS-232 (TXD, RXD, RTS, CTS, GND) 1 x RS-485 (Data+, Data-) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 3 W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
| Humidity | 5 to 95 %, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
