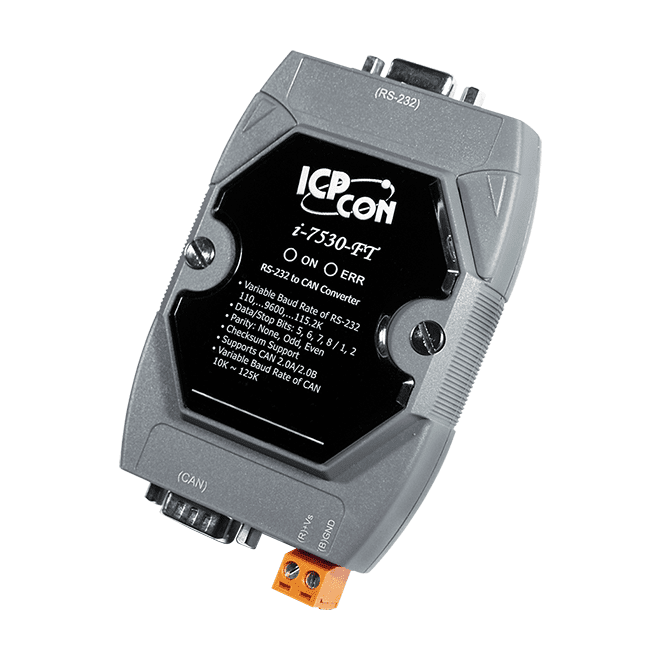

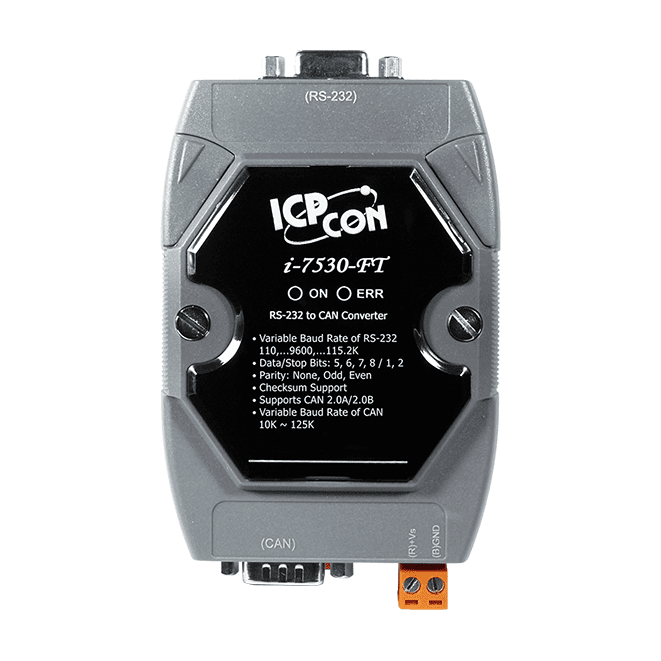

I-7530-FT-G Intelligent RS-232 to CAN Converter, Low Speed Fault Tolerant
Software-configurable RS-232 to CAN converter for linking PCs or serial devices to ISO 11898-3 low speed fault tolerant CAN networks, with a built-in watchdog.
- Converts messages between RS-232 and CAN, compatible with CAN 2.0A and CAN 2.0B
- Fully compatible with ISO 11898-3 low speed fault tolerance
- Software-configurable CAN and RS-232 communication parameters
- Transparent communication mode supported
- Built-in hardware watchdog for continuous operation
- 1000-frame CAN receive buffer and 900-frame RS-232 receive buffer
1.666,75 kr. pr. stk.
| 1–9 stk. | 1.666,75 kr. | |
|---|---|---|
| 10–30 stk. | 1.621,90 kr. | −3 % |
| 31+ stk. | 1.584,53 kr. | −5 % |
Produktinformation "I-7530-FT-G Intelligent RS-232 to CAN Converter, Low Speed Fault Tolerant"
The I-7530-FT-G CR bridges RS-232 and CAN networks, letting a PC, HMI or serial controller exchange messages with CAN devices without a dedicated CAN interface card. It supports CAN 2.0A and CAN 2.0B and conforms to ISO 11898-3 low speed fault tolerance, with CAN and RS-232 parameters set in software.
Designed for industrial installations, the converter includes a hardware watchdog that resets the unit to keep it running in harsh or electrically noisy environments. Power, data flow and error LEDs for both the CAN and RS-232 sides help with commissioning and fault finding. Transparent communication mode is supported, and the CAN and RS-232 receive buffers hold 1000 and 900 frames respectively.
Note that full-duplex communication with RS-232 devices is not supported. The unit operates from +10 VDC to +30 VDC, runs between -25 and +75 °C, and mounts on a DIN-rail in a plastic housing.
Applications
- Connecting PCs or HMIs to CAN bus devices
- Integrating RS-232 embedded controllers into CAN networks
- Monitoring and control of CAN devices from serial-equipped hosts
- Industrial control and monitoring systems
| Product type: | Converter |
|---|---|
| Interface: | CAN, RS-232 |
| Protocol: | CAN 2.0A, CAN 2.0B |
| Ports: | 2 |
| Isolation: | None |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x CAN status |
| COM Ports | |
| Ports | 1 x RS-232 (9-pin female D-Sub (TxD, RxD, GND)) |
| Baud Rate | 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| Parity | None, Even, Odd |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Receive Buffer | 900 data frames |
| CAN | |
| Ports | 1 |
| Specification | ISO-11898-3 (low speed fault tolerance), CAN 2.0A and CAN 2.0B |
| Baud Rate | 10 k ~ 125 k bps |
| Isolation | NONE |
| Terminal Resistor | 1 kΩ for CAN_H and CAN_L |
| Filter | Yes |
| Receive Buffer | 1000 data frames |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 x 118 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
