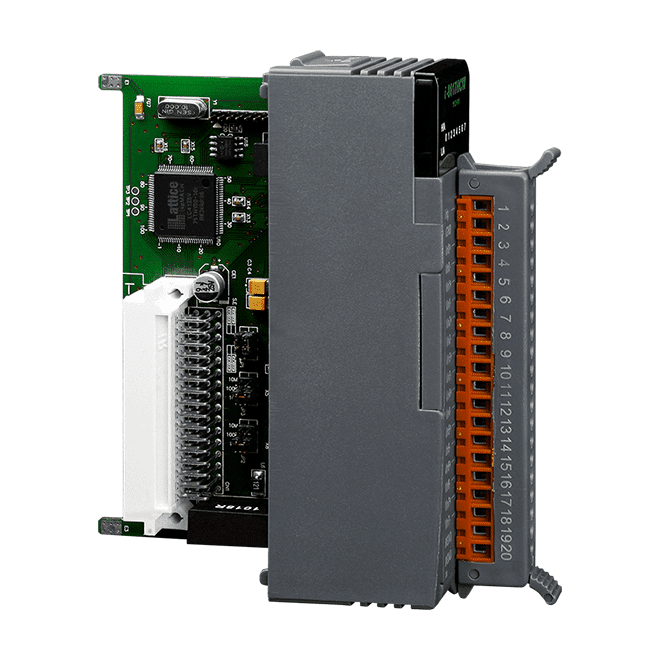

I-8017HCW-G 8/16-ch Analog Input Module, 14-bit, 100 kHz, Voltage/Current Input
High-speed 14-bit analog input module with 16 single-ended or 8 differential channels, jumper-selectable voltage or ±20 mA current input, for the I-8K/I-87K series.
- 16 single-ended or 8 differential analog inputs
- Jumper-selectable voltage or ±20 mA current input
- 14-bit AD converter with 100 kHz bandwidth
- Up to 90 kS/s in single channel polling mode
- Individual channel configuration for input range
- 2500 VDC intra-module isolation
2.189,94 kr. pr. stk.
| 1–9 stk. | 2.189,94 kr. | |
|---|---|---|
| 10–30 stk. | 2.122,67 kr. | −3 % |
| 31+ stk. | 2.077,83 kr. | −5 % |
Produktinformation "I-8017HCW-G 8/16-ch Analog Input Module, 14-bit, 100 kHz, Voltage/Current Input"
I-8017HCW-G is an analog input module for data acquisition tasks that need many channels and fast sampling. It accepts 16 single-ended or 8 differential inputs, and each channel can be configured individually for one of the ranges ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC or ±20 mA.

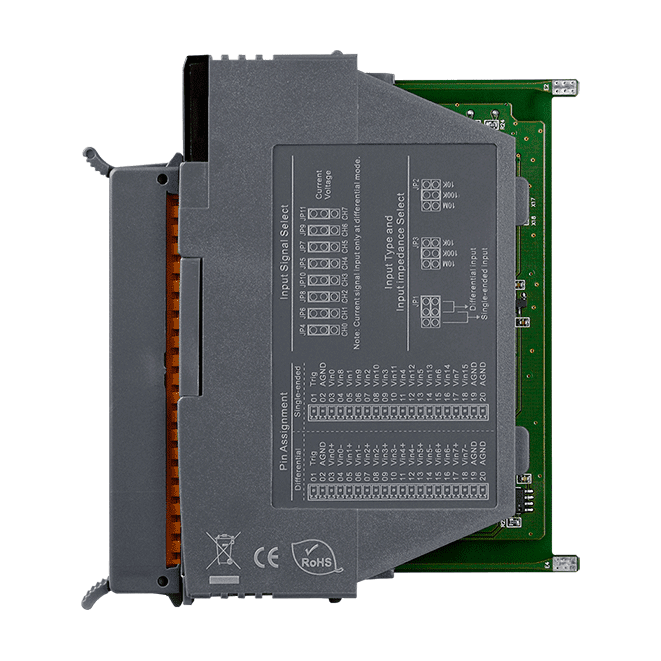

The 14-bit converter samples at up to 90 kS/s in single channel polling mode, with a 100 kHz bandwidth. An internal jumper selects the differential current input resistor, and the module ships set for voltage measurement. The ordering code CR variant covers the standard configuration of this 20-pin terminal block version.
Each channel is isolated with 2500 VDC intra-module isolation and protected against ±4 kV ESD contact discharge at each terminal, which suits electrically noisy industrial cabinets. The module is rated for an operating range of -25 ~ +75 °C and draws 2 W maximum.
Applications
- High speed data acquisition systems
- Process monitoring and control
- Vibration analysis
- Digital pattern generation from a digital I/O port
| Product type: | Analog Input Module |
|---|---|
| Analog inputs: | 16 |
| Isolation: | 2500 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Analog Input | |
| Channels | 16-ch Single-ended/8-ch Differential |
| Range | Voltage: ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC Current: ±20 mA, Jumper Selectable |
| Resolution | 14-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | Single Channel Polling Mode: 90 kS/s Single Channel Interrupt Mode: 50 kS/s 8 channel Scan Mode: 16 kS/s |
| Bandwidth | 100 kHz |
| Input Impedance | 20 K, 200 K, 20 M (Jumper Selectable) |
| Individual Channel Configuration | Yes |
| Zero Drift | ±0.1 uV/°C |
| Span Drift | ±10 ppm/°C |
| Power | |
| Consumption | 2 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
