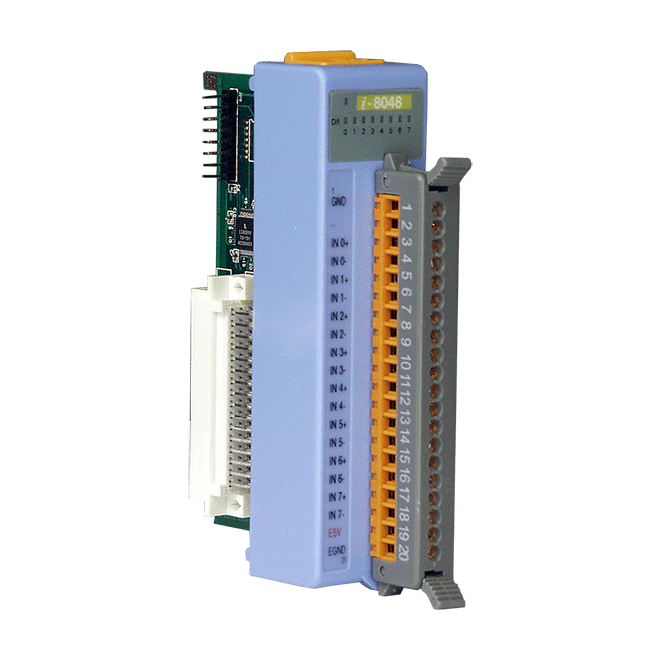

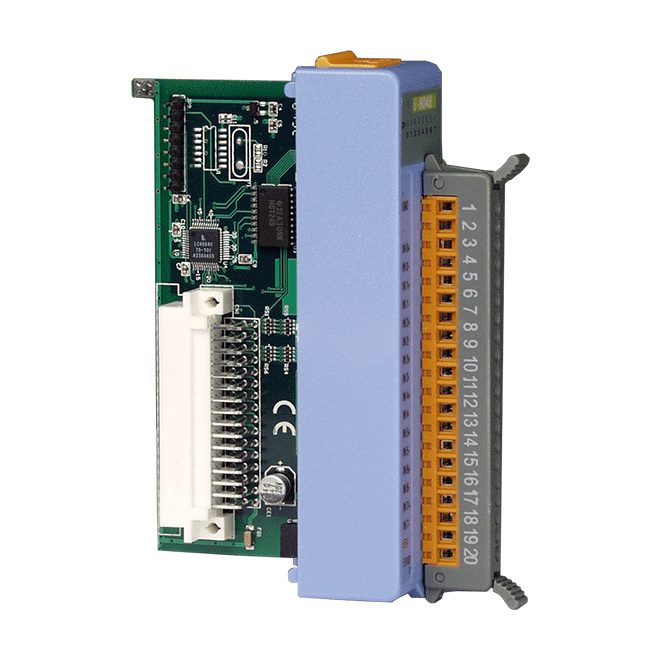

I-8048 8-ch Non-isolated Digital Input Module with Interrupt, Blue Cover
8-channel non-isolated digital input module for dry and wet contact signals, with per-channel rising/falling-edge interrupts up to 10 kHz. Blue cover variant.
- 8 digital input channels, selectable for dry or wet contact via wire connections
- Programmable rising or falling-edge interrupt on each channel, up to 10 kHz maximum interrupt frequency
- Non-isolated TTL input variant: ON +2 to +5 VDC, OFF 0 to +0.8 VDC
- Photocoupler isolation protection on each input
- ±4 kV ESD protection per terminal
- 3750 VDC intra-module isolation
814,69 kr. pr. stk.
| 1–9 stk. | 814,69 kr. | |
|---|---|---|
| 10–30 stk. | 792,27 kr. | −3 % |
| 31+ stk. | 777,32 kr. | −5 % |
Produktinformation "I-8048 8-ch Non-isolated Digital Input Module with Interrupt, Blue Cover"
The I-8048 CR is an 8-channel digital input module from the I-8K/I-87K low-profile series. It accepts dry and wet contact signals, and the wiring method selects the mode, so one module can handle both signal types without changing hardware.
Each channel can generate an interrupt on a programmable rising or falling edge, which suits applications where a change of state must be captured promptly rather than polled. The maximum interrupt frequency is 10 kHz. Input channels are protected by photocoupler isolation and withstand ±4 kV ESD per terminal, with 3750 VDC isolation between the module and the rest of the system.
This is the non-isolated variant with the blue cover, identified by the CR ordering suffix. Its ON level is +2 to +5 VDC and its OFF level is 0 to +0.8 VDC. Power consumption is 1.75 W maximum, and the module is specified for operation from -25 to +75 °C.
Applications
- Monitoring switch and contact status in industrial control systems
- Event-triggered input capture where edge timing matters
- Digital input expansion for remote I/O and PAC systems
| Product type: | Digital input module |
|---|---|
| Digital inputs: | 8 |
| Isolation: | 3750 VDC intra-module |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 8 x I/O |
| Digital Input | |
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Isolated: +4 ~ +30 VDC Non-Isolated: +2 ~ +5 VDC |
| OFF Voltage Level | Isolated: 0 ~ +1 VDC Non-Isolated: 0 ~ +0.8 VDC |
| Interrupts | Yes. Trigger type: Rising/Falling edge programmable for each channel. Max. Interrupt Frequency: 10 kHz Max. |
| Input Impedance | 2.4 kΩ, 0.5 W |
| Power | |
| Consumption | 1.75 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
