IWS-4201-CE7 10.4" InduSoft ViewPAC with Windows CE 7.0 Touch HMI
10.4-inch 800 x 600 resistive touch panel PAC running an InduSoft runtime with 300 tags on Windows CE 7.0. No I/O slot; suited to panel-mounted HMI and control.
- InduSoft runtime with 300-tag capacity on Windows CE 7.0
- 10.4-inch 800 x 600 LCD with 5-wire resistive touch panel and 400 cd/m2 brightness
- Cortex-A8 1 GHz CPU, 512 MB DDR3 SDRAM, 256 MB flash and SD socket
- Gigabit Ethernet, two USB ports and three COM ports with 2500 VDC isolation
- Modbus and OPC support with TCP/IP client/server and DCON driver for ICP DAS I/O
- NEMA 4/IP65 front panel with fanless design and no moving parts
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "IWS-4201-CE7 10.4" InduSoft ViewPAC with Windows CE 7.0 Touch HMI"

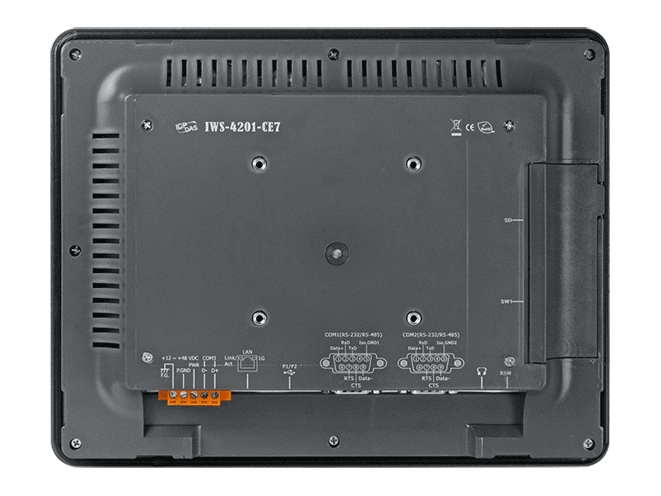

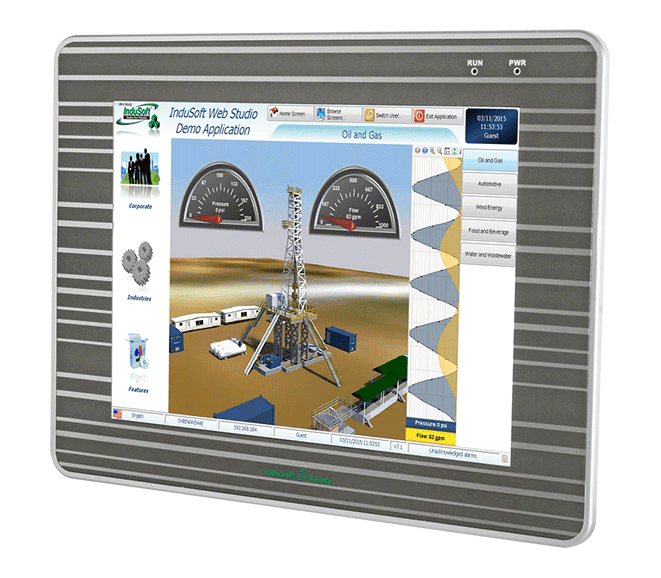

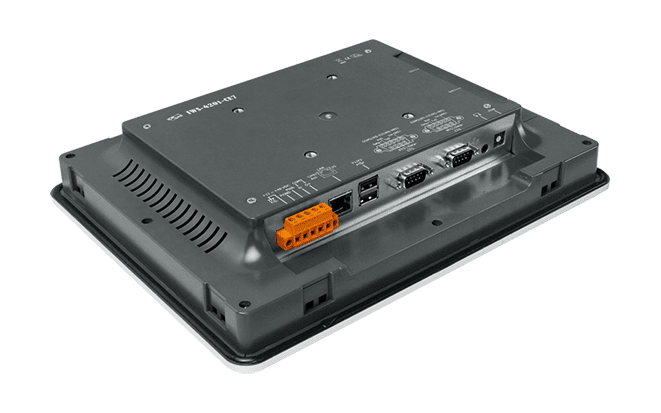

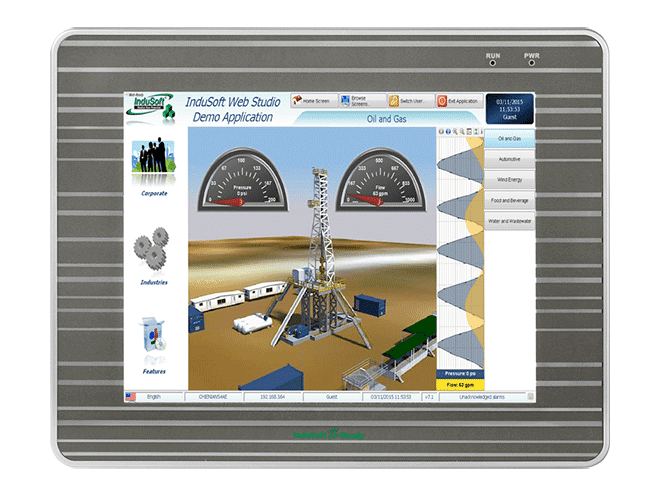

IWS-4201-CE7 CR is the 10.4-inch variant of the IWS-x201-CE7 series, combining an InduSoft runtime licensed for 300 tags with a Cortex-A8 controller and a resistive touch display in one flat panel unit. The CR ordering code denotes the version supplied without an I/O slot, so expansion is handled through external modules.
The unit suits operator interface and light control tasks where a sealed, fanless panel computer is needed at the cabinet door. Remote I/O can be added through ICP DAS Ethernet, RS-485, Wi-Fi and ZigBee I/O modules, and a DCON driver for ICP DAS I/O modules is included.
Front-panel protection is NEMA 4/IP65, and the unit is rated for operation from -10 ~ +60 °C. Mounting is by panel cut-out or VESA 75 x 75 bracket.
Applications
- Panel-mounted HMI and operator terminals
- Machine and process control interfaces
- Remote I/O supervision with Ethernet, RS-485 and wireless I/O modules
| Product type: | ViewPAC |
|---|---|
| Interface: | Gigabit Ethernet, RS-232/RS-485, USB |
| Protocol: | Modbus, OPC |
| Ports: | 1 Ethernet, 2 USB, 3 COM |
| PoE: | IEEE 802.3af |
| Isolation: | 2500 VDC (COM ports) |
| Power input: | +12 VDC ~ +48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel |
| Housing: | NEMA 4/IP65 front panel |
Specifikationer
| Software | |
|---|---|
| OS | Microsoft Windows Embedded Compact 7 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .NET Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for Visual Studio.Net |
| Main Unit | |
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for software copy protection |
| System Memory | SDRAM 512 MB (DDR3) |
| Storage | Flash (SSD) 256 MB; SD socket with a 4 GB SDHC card(support up to 32 GB) |
| Non-Volatile Memory | MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | 0.8 second |
| Display | |
| Size | 10.4” (4:3) |
| Backlight Life | 50000 |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, resistive type; light transmission: 80% |
| Contrast Ratio | 20.834027777778 |
| LED Indicators | |
| Status | 2 x Power and Run |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Audio | |
| Jack | Earphone-out |
| Ethernet | |
| Ports | 1 x RJ-45 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 DB9 connector (2500VDC Isolated); 1 x RS-232/RS-485 (2500VDC Isolated); 1 x RS-485 (2500VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 13 W |
| Powered from PoE | IEEE 802.3af |
| Mechanical | |
| Dimensions (mm) | 291 x 229 x 54 |
| Panel Cut-out (mm) | 277 x 215 ± 1 |
| Installation | Panel Mounting, VESA (75 x 75) Mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Environment | |
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
