LC-305 5-Channel AC Load Current Measurement Module, Modbus RTU
5-channel AC load current measurement module for lamp and relay condition monitoring, with 0 to 5 A inputs and RS-485 communication using Modbus RTU or DCON.
- Five AC load current input channels, each rated 0 to 5 A
- Measurement accuracy of 3% of FSR
- Single RS-485 port supporting Modbus RTU or DCON, 1200 to 115200 bps
- Hardware-configurable addresses for multi-drop operation
- ESD protection of ±4 kV contact per terminal and EFT immunity of ±4 kV
- 2000 VDC intra-module isolation
725,00 kr. pr. stk.
| 1–9 stk. | 725,00 kr. | |
|---|---|---|
| 10–30 stk. | 702,57 kr. | −3 % |
| 31+ stk. | 687,63 kr. | −5 % |
Produktinformation "LC-305 5-Channel AC Load Current Measurement Module, Modbus RTU"

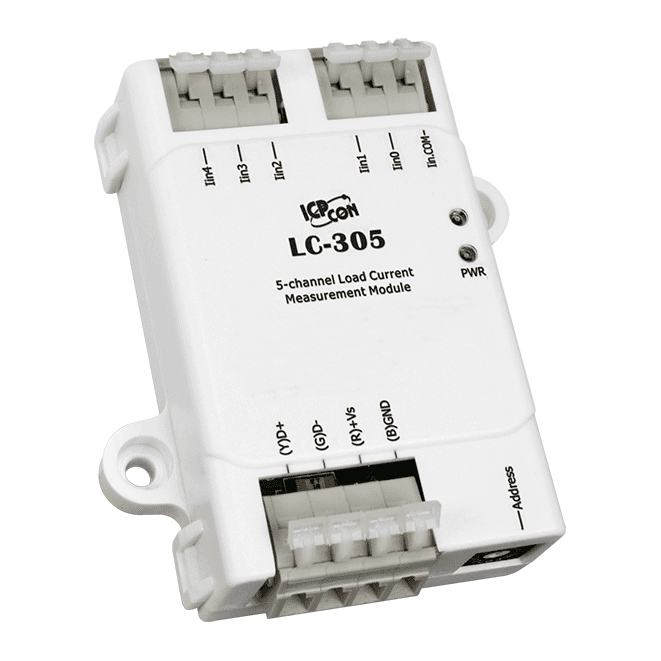

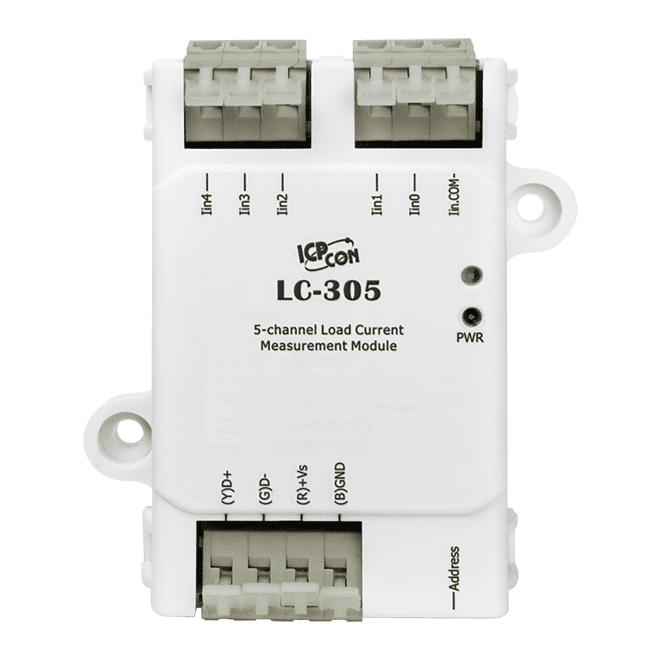

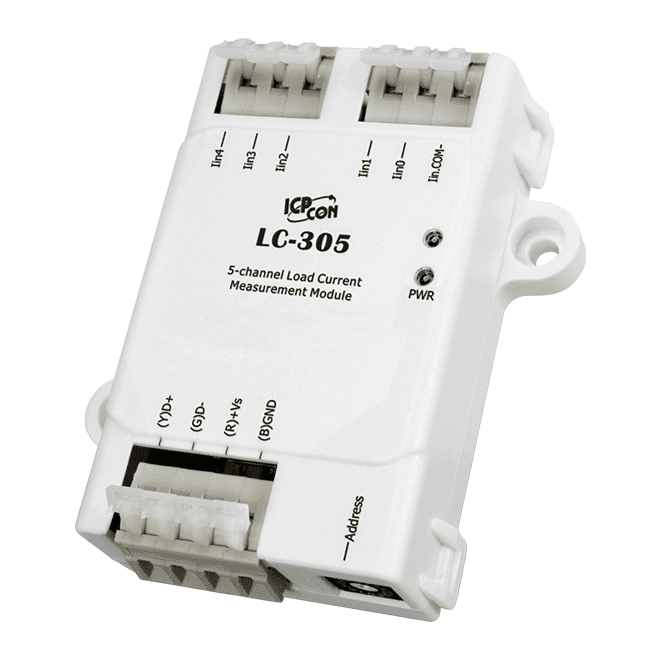

LC-305 CR is a 5-channel AC load current measurement module for lighting control applications. Each channel accepts 0 to 5 A AC input at 50/60 Hz and reports the measured load current over a single RS-485 port, so a controller can track the state of each lamp circuit.
The module supports Modbus RTU or DCON on its serial port, with baud rates from 1200 to 115200 bps. Hardware-set addresses allow several modules to share one bus. Because the readings are updated every second, the data can be used to flag a failed lamp, spot a lamp that is starting to fade and needs replacing, or detect carbon build-up on relay contacts that may cause them to stick.
- Single-ended wiring, with accuracy of 3% of FSR
- Maximum load current of 10 A per module COM point and 5 A per single load at 25°C
- Powered from 10 to 30 VDC with reverse polarity protection
Applications
- Lighting control
- Lamp failure and fading detection
- Relay contact condition monitoring
- Load current monitoring on RS-485 networks
| Product type: | AC current measurement module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus RTU |
| Analog inputs: | 5 |
| Ports: | 1 |
| Isolation: | 2000 VDC |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Screw / DIN-rail |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for power and communication |
| ESD (IEC 61000-4-2) | ±4 kV contact for each terminal |
| LED Indicators | |
| Status | 1 LED as Power Indicator |
| AC Current Input | |
| Channels | 5 |
| Wiring | Single ended |
| Accuracy | 3% of FSR |
| Frequency | 50/60 Hz |
| Current | 0 ~ 5 A |
| Max. Load Current | 10 A/Module COM point Max. Single Load Current 5 A at 25°C |
| Data Update Rate | 1 Second |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1) |
| Protocol | Modbus RTU or DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | 10 ~ 30 VDC |
| Consumption | 0.7 W Max. |
| Mechanical | |
| Dimensions (mm) | 70 x 83 x 29 (W x L x H) |
| Installation | Screw Mounting/DIN Rail mount |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
