LP-2241MX-4GE Linux PAC with Cortex-A8 CPU, 4G Modem and Dual Ethernet
Linux-based PAC with a 1 GHz Cortex-A8 CPU, integrated 4G modem, dual 10/100/1000M Ethernet and four serial ports for remote data acquisition and control.
- 1 GHz Cortex-A8 CPU with 512 MB DDR3 SDRAM and 512 MB flash
- Linux kernel 3.2.14 with real-time capability
- Integrated 4G module with WCDMA, FDD LTE and GSM bands, plus GPRS connectivity
- 2 x 10/100/1000M RJ-45 Ethernet ports
- 4 serial ports: 2 x RS-232 (one console) and 2 x RS-485 (2500 VDC isolated)
- XV-board I/O expansion bus
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "LP-2241MX-4GE Linux PAC with Cortex-A8 CPU, 4G Modem and Dual Ethernet"

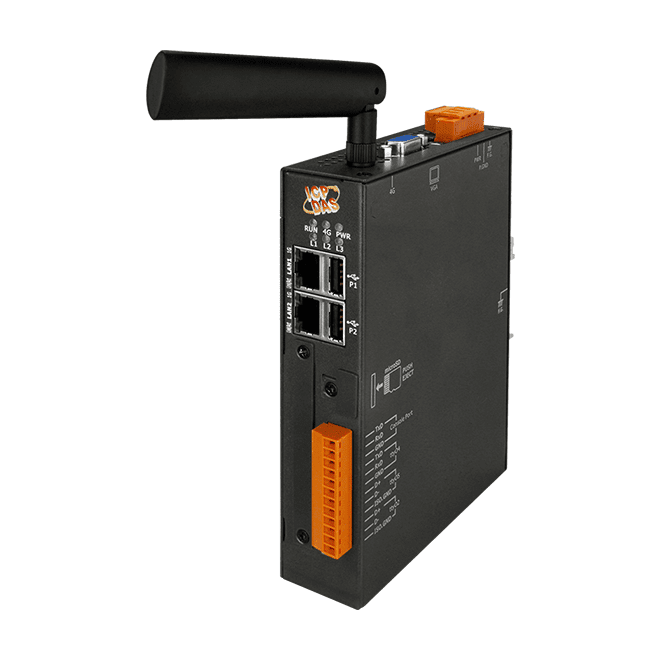

LP-2241MX-4GE CR is a Linux-based programmable automation controller built around a 1 GHz Cortex-A8 processor with 512 MB DDR3 SDRAM and 512 MB flash. It runs Linux kernel 3.2.14 and offers real-time capability for time-critical control tasks, with web, SFTP and SSH services built in for remote access and maintenance.
Engineers choose this unit when a control site needs cellular connectivity. The integrated 4G module supports WCDMA, FDD LTE and GSM bands, and the GPRS and SMS functions allow field instruments, meters and controllers to send data back over the mobile network. Two RJ-45 Ethernet ports, four serial ports (RS-232/RS-485) and an XV-board expansion bus extend the unit for local I/O and device connections.

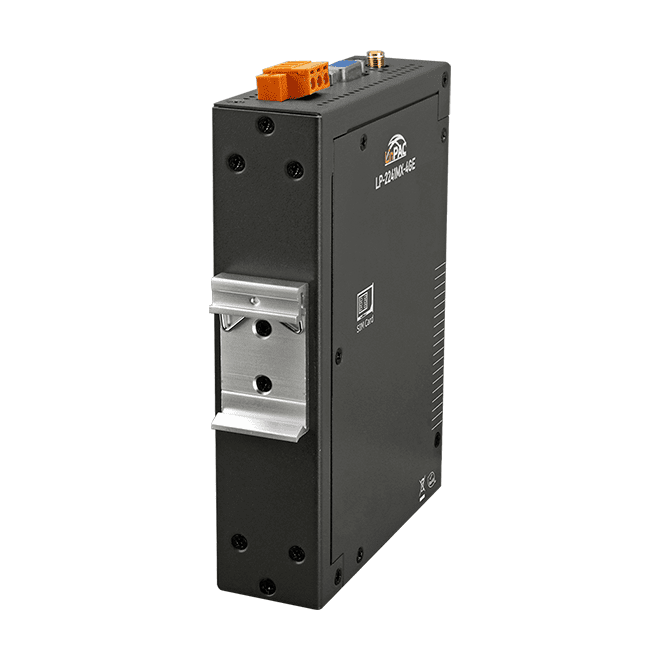

The metal housing is designed for DIN-rail or optional wall mounting and operates from +12 VDC to +48 VDC across a -25 ~ +75 °C operating range. A 64-bit hardware serial number supports software copy protection, and dual watchdog timers and a real-time clock assist with dependable unattended operation.
Applications
- Remote data transfer from instruments and meters over 3G/4G cellular networks
- SMS and GPRS-connected monitoring and control applications
- Multi-serial device connection using RS-232 and RS-485
- Ethernet-based control and remote supervision
- Linux-based control applications requiring time-critical operation
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB 2.0 |
| Ports: | 2 Ethernet RJ-45, 4 serial, 2 USB |
| Isolation: | 2500 VDC (RS-485) |
| Power input: | +12 VDC ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, wall (optional) |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| OS | Linux Kernel 3.2.14 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | • Flash 512 MB • microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | FRAM 64 KB |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | Up to 1280 x 1024 |
| LED Indicators | |
| Status | 1 x 4G 1 x Power 1 x Run 3 x Programmable |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps, Upload: Max 5.76 Mbps; TD-SCDMA Download: Max. 4.2 Mbps, Upload: Max 2.2 Mbps; CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4 Mbps |
| Frequency Band | WCDMA 850/900/2100 MHz |
| 4G System | |
| Data Transmission Rate | Download Max 100 Mbps/Upload Max 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 |
| GPS/GNSS | |
| Channels | 32 |
| Protocol | NMEA 0183 |
| GSM | |
| Data Transmission Rate | Downlink transfer: Max. 85.6 kbps, Uplink transfer: Max 42.8 kbps |
| Frequency Band | GSM: 850/900/1800/1900 MHz |
| GPRS Connectivity | GPRS class 12/10, GPRS station class B |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (Console, Non-isolated) 1 x RS-232, Non-isolated 2 x RS-485 (2500 VDC, Isolated) |
| USB | |
| Ports | 2 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 35 x 167 x 119 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting (optional) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
