LX-8131 Linux PAC with x86 Dual-Core CPU and 1-Slot I/O Expansion
Linux-based PAC combining computing, I/O and HMI in one unit, with a 1.0 GHz x86 dual-core CPU, one I-8KW/I-87KW expansion slot and dual Gigabit Ethernet.
- x86 dual-core CPU at 1.0 GHz running Linux kernel 3.2
- One slot for I-8KW and I-87KW series I/O modules, with remote expansion options
- Two 10/100/1000 Mbps Ethernet ports (RJ-45)
- RS-232, RS-485 and combined RS-232/485 serial ports, all 3000 VDC isolated
- Dual watchdog timer, real-time clock and 64-bit hardware serial number for software protection
- Redundant power inputs with a relay alarm output
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "LX-8131 Linux PAC with x86 Dual-Core CPU and 1-Slot I/O Expansion"

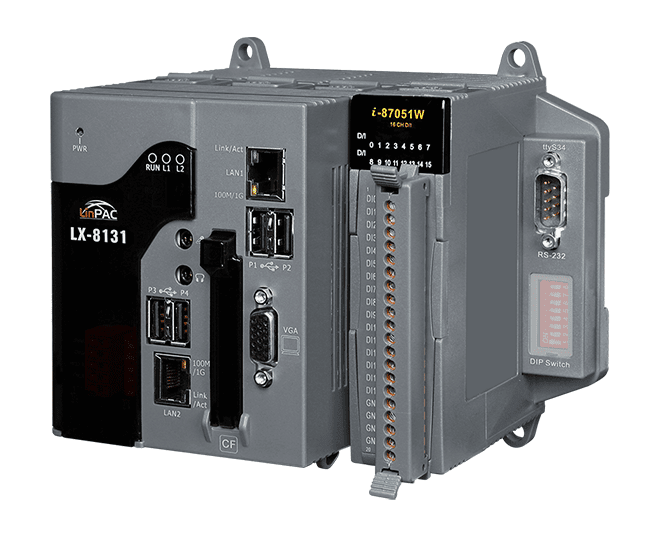

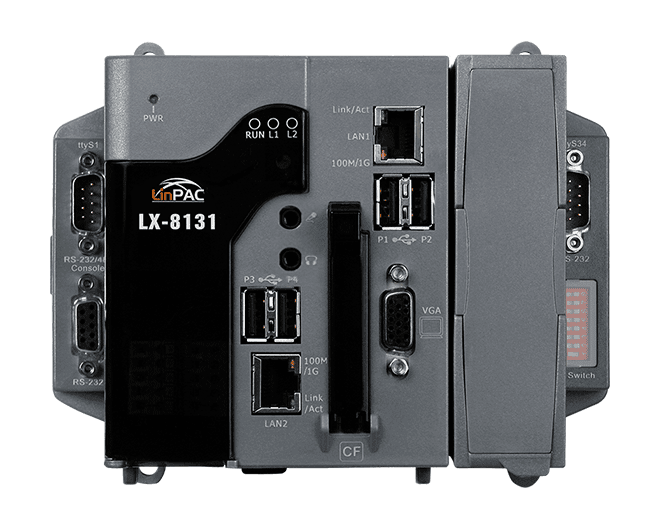

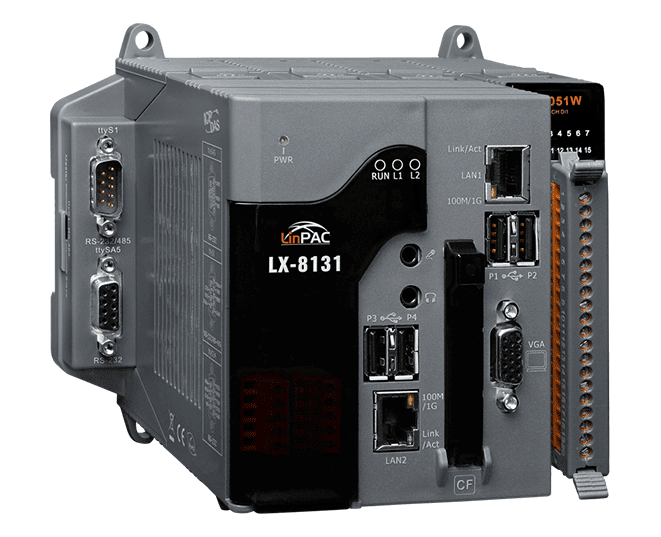

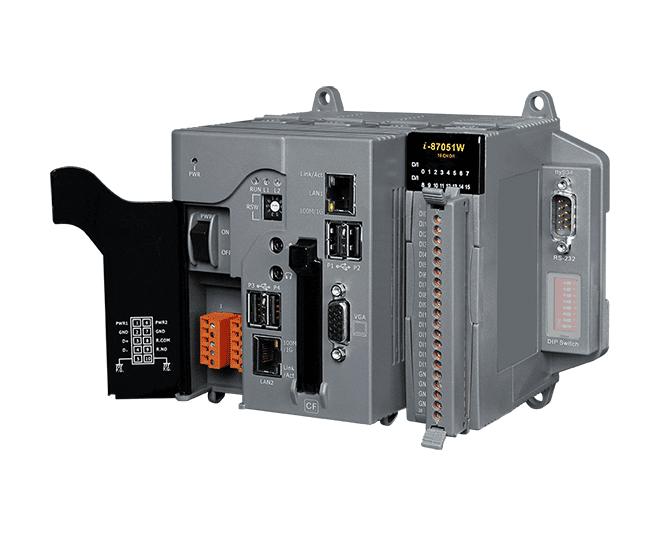

The LX-8131 CR is a 1-slot member of the LX-8000 Linux-based PAC series. It brings control logic, local I/O and an operator interface into a single DIN-rail or wall-mounted unit, which suits engineers who want HMI, data acquisition and control in one compact PAC.
The controller runs Linux kernel 3.2 on a 1.0 GHz x86 dual-core CPU with 2 GB DDR3 SDRAM. It has one slot for I-8KW and I-87KW series I/O modules, and remote expansion is possible with Ethernet and RS-485 I/O modules. Storage includes a 32 GB mSATA SSD and a CF card slot, and the unit has four USB 2.0 host ports and a VGA display output.
Built-in services include a web server, FTP and SFTP, Telnet and SSH. The LinPAC SDK, which uses a GCC-based toolchain, supports developing I/O applications in GNU C. The unit is rated for -25 ~ +75 °C operation and carries CE, UKCA, FCC, RoHS and WEEE certification.
Applications
- Integrated HMI, data acquisition and control in a single PAC
- Local I/O control using I-8KW and I-87KW modules
- Remote I/O expansion over Ethernet and RS-485
| Product type: | Linux PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 |
| Isolation: | 3000 VDC (COM ports) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| Software | |
|---|---|
| OS | Linux kernel 3.2 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | x86 dual-core (1.0 GHz) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 2 GB DDR3 SDRAM |
| Storage | • Flash: mSATA slot with one 32 GB SSD • CF card slot |
| Non-Volatile Memory | • MRAM 512 KB • EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | 1280 × 1024 to 1920 × 1080 for 16:9 display 640 × 480 to 1024 × 768 for 4:3 display |
| LED Indicators | |
| Status | 1 x Power 1 x Run (Programmable) 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-8KW, I-87KW series |
| Slots | 1 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | Yes (8 bits) |
| Power Switch | Yes |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (Console, 3000 VDC, Isolated) 1 x RS-232 (3000 VDC, Isolated) 1 x RS-485 (3000 VDC, Isolated) 1 x RS-232/485 (3000 VDC, Isolated) |
| USB | |
| Ports | 4 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (1 kV Isolated) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 14.4 W (0.6 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 169 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
