MDC-741 Modbus Data Concentrator, Ethernet to 4 x RS-232 and 1 x RS-485
Modbus data concentrator with one Ethernet port, four 5-wire RS-232 ports and one 2-wire RS-485 port, merging serial Modbus device data into a Modbus TCP slave interface.
- Modbus master or slave on each serial port, with Modbus TCP slave on Ethernet
- Supports up to 8 simultaneous Modbus TCP connections
- Data pool of up to 9600 registers for each of AI, AO, DI and DO data
- Polling command table for up to 250 definitions across all RS-232 and RS-485 ports
- Per-port settings: baud rates from 1200 to 115200 and data formats N81, E81 and O81
- Configuration by simple CSV file, with HTML5 web-based import, export and start-up
2.713,13 kr. pr. stk.
| 1–9 stk. | 2.713,13 kr. | |
|---|---|---|
| 10–30 stk. | 2.630,92 kr. | −3 % |
| 31+ stk. | 2.578,60 kr. | −5 % |
Produktinformation "MDC-741 Modbus Data Concentrator, Ethernet to 4 x RS-232 and 1 x RS-485"

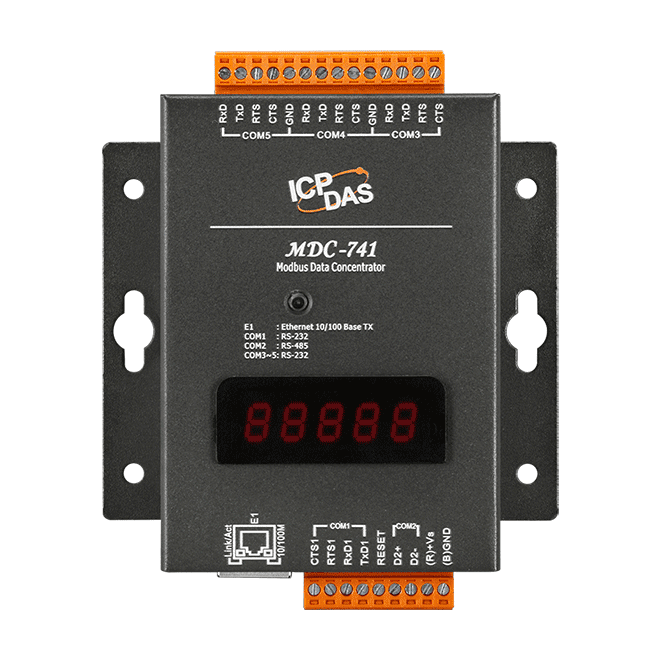

The MDC-741 CR links several serial Modbus devices to an Ethernet network. Its four RS-232 ports and one RS-485 port can operate as Modbus RTU masters or slaves, while the Ethernet port presents the collected data as a Modbus TCP slave to host controllers.
Data from every serial port is gathered through a user-defined polling table and merged into continuous address ranges, so a host can read or write the combined data in bulk rather than polling each device individually. Each COM port can use its own baud rate and data format, and write commands are queued with priority to keep control values current.

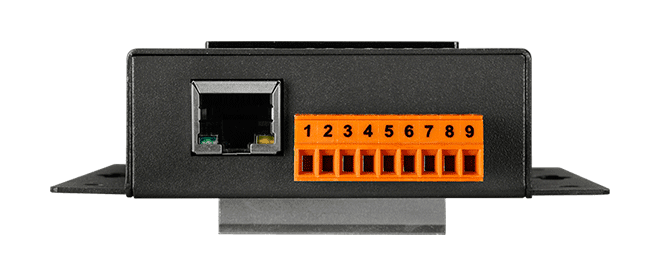

- Ethernet: 1 x 10/100 Base-TX port with Modbus TCP slave support

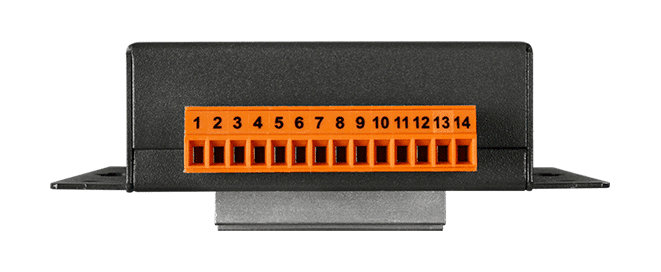

- Serial: 4 x 5-wire RS-232 and 1 x 2-wire RS-485 ports
- Power input: +10 VDC to +30 VDC, non-regulated
Applications
- Upgrading legacy Modbus RTU devices to Ethernet-based systems
- Centralised data monitoring for SCADA applications
- Consolidating multiple serial Modbus devices into a single Modbus TCP host connection
| Product type: | Modbus data concentrator |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus RTU, Modbus TCP |
| Ports: | 1 Ethernet, 4 RS-232, 1 RS-485 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |

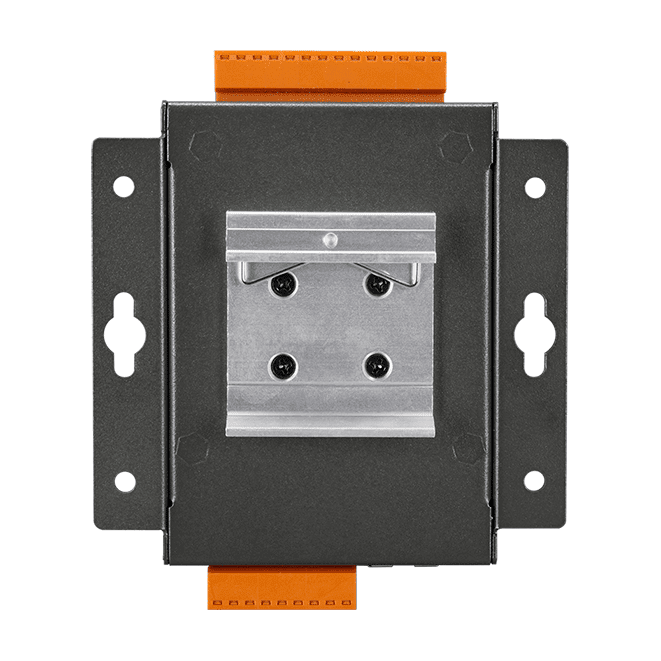

| Mounting: | Wall mounting |
| Housing: | Metal |
Specifikationer
| Display | |
|---|---|
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System, to display heart beat |
| Ethernet | |
| Ports | x1, 10/100 Base-TX |
| Protocol | Modbus/TCP Slave |
| COM Ports | |
| Ports | MDC-711: 1 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-714: 1 x 5-wire RS-232, 4 x 2-wire RS-485 MDC-714i: 1 x 5-wire RS-232, 1 x 2-wire RS-485, 3 x 2-wire RS-485 (2500 VDC Signal Isolation) MDC-741: 4 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-771: 1 x 5-wire RS-232, 6 x 3-wire RS-232, 1 x 2-wire RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | N81, E81, O81 |
| Protocol | Modbus RTU Master/Modbus RTU Slave |
| Polling Definition | 250 definitions for all RS-232/485 ports |
| Shared Memory | 9600 registers for each of AI, AO, DI and DO data |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 102 mm x 125 mm x 28 mm (W x H x D) |
| Installation | Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
